| Price | Negotiable |
| MOQ | 1pcs |
| Delivery Time | 3-8 work days |
| Brand | KHJ |
| Place of Origin | Guangdong, China |
| Certification | CE,RoHS |
| Model Number | KSA360, KSA480, KSA720 |
| Packaging Details | 655*655*240mm |
| Payment Terms | L/C, T/T |
| Supply Ability | 400pcs per day |
| Place of Origin | Guangdong, China | Packaging Details | 655*655*240mm |
| Working Voltage | 100-277 VAC,141-391VDC | Insulation Class | I |
| Model Number | KSA360, KSA480, KSA720 | Supply Ability | 400pcs per day |
| Certification | CE,RoHS | Brand Name | KHJ |
| Payment Terms | L/C, T/T | THD | ＜10% |
| Price | Negotiable | Delivery Time | 3-8 work days |
| Minimum Order Quantity | 1pcs | Frequency | 50/60Hz |
| Power Factor | ＞0.98 | Lifespan | >50,000 hours |
| Power | 360W 480W 720W | Luminaire Efficacy | 110lm/W |
Industrial LED High Bay Light,360W,480W,720W, energy saving, high power factor
Industrial LED High Bay Light,360W,480W,720W, energy saving, high power factor
Highlight: Industrial LED High Bay Light,360W,480W,720W
Features And Benefits:
1. High efficacy LED Source with long lifespan>50,000 hours.
2. High vibration and impact resistance.
3. Precision optics for high mounting heights.
4. True 1 for 1 replacement for 1,000W HID.
5. 5 years full performance warranty.
Product Important Information:
| Standard &Certificate: | |
| Certificate: | ·CE ·RoHS |
|
Executive Standard: |
·EN 55015:2013+A1:2015 ·EN 60598-2-1:1989 ·EN 61547:2009 ·IEC 62321-4:2013 ·EN 61000-3-2:2014 ·IEC 62321-5:2013 ·EN 61000-3-3:2013 ·IEC 62321-6:2015 ·EN 60598-1:2015 ·IEC 62321-7-1:2015 |
| Electrical & Photometric Features: | |
| Luminarie Efficacy: | 110lm/W |
| Lifespan: | >50,000 hours |
| Operating Voltage: |
100-277 VAC 141-392 VDC |
| Power: | 360W/480W/720W |
| Frequency: | 50/60Hz |
| Power Factor: | ＞0.98 |
| THD: | ＜10% |
| Insulation Class: | Ⅰ |
| Surge Protection: | L-N 4K/LN-PE 6K |
| LED Driver: | Over voltage protection/short circuit protection |
| Mechanical Features: | |
| Weight: | 24Kg(360W/480W);27Kg(720W) |
| Size: | φ 580*210mm |
| Ambient Temperature: | -40℃-+55℃ |
| Connecting Terminals: | 3*2.0mm²(L+N+PE) |
| Cable Entries: | 1XM16*1.5 |
| Earthing Protection: | M4 (Internal & external earth bolts) |
| IP Code: | IP66 |
| Enclosure Maternal: | Die-casting aluminium alloy |
| Enclosure Colour: | Grey RAL7040 |
| Coating: | Epoxy powder coating |
| Exposed Fastener: | Stainless steel |
| Protective Cover: | Tempered glass,Stand 7J impact |
Applications:
Can be widely used for Indoor and outdoor area lighting in plants, buildings, and parking areas and where extremely corrosive, wet, dusty hot and/or cold conditions exist.

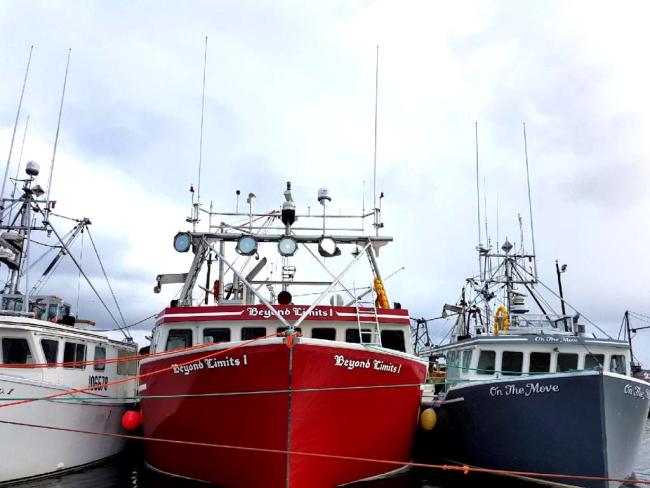

1. Shipping industry.
2. Stadium.
3. Parking areas.
3. Other outdoor and indoor safety area.
Ordering
information:
| P/N | Operating Voltage(V) | Luminous Flux(lm) | Power | CRI | Color Temp. | CCT(K) |
| KSA360*WM-E |
100~277 AC (141~392 DC) |
36000 | 360 | 70 | Warm white | 3000±300 |
| KSA360*NH-E | 39600 | 360 | 70 | Natural white | 4000±300 | |
| KSA360*NH-E | 39600 | 360 | 70 | Natural white | 5000±300 | |
| KSA360*CH-E | 39600 | 360 | 70 | Cool white | 5700±300 | |
| KSA480*WM-E | 48000 | 480 | 70 | Warm white | 3000±300 | |
| KSA480*NH-E | 52800 | 480 | 70 | Natural white | 4000±300 | |
| KSA480*NH-E | 52800 | 480 | 70 | Natural white | 5000±300 | |
| KSA480*CH-E | 52800 | 480 | 70 | Cool white | 5700±300 | |
| KSA720*WM-E | 72000 | 720 | 70 | Warm white | 3000±300 | |
| KSA720*NH-E | 79200 | 720 | 70 | Natural white | 4000±300 | |
| KSA720*NH-E | 79200 | 720 | 70 | Natural white | 5000±300 | |
| KSA720*CH-E | 79200 | 720 | 70 | Cool white | 5700±300 |
Remarks:
1. *Stands for beam angle , including H1V1 / H4V4 / H5V5.
