| Price | Negotiable |
| MOQ | 1 pcs |
| Delivery Time | 5-10 work days |
| Brand | KHJ |
| Place of Origin | Guangdong, China |
| Certification | ATEX,IECEx,RoHS,CE |
| Model Number | Ex-KTK80,Ex-KTK100,Ex-KTK120 |
| Packaging Details | 382*272*180mm |
| Payment Terms | L/C, T/T |
| Supply Ability | 400pcs/day |
| Place of Origin | Guangdong, China | Packaging Details | 382*272*180mm |
| Product Name | Tank Series explosion proof light fixture | Available cable outer diameter | φ7-φ20(mm) |
| IP Code | IP66 | Model Number | Ex-KTK80,Ex-KTK100,Ex-KTK120 |
| Supply Ability | 400pcs/day | Certification | ATEX,IECEx,RoHS,CE |
| Cable Entries | 2XM20*1.5 (NPT 3/4”, M25*1.5 are optional) | Brand Name | KHJ |
| Payment Terms | L/C, T/T | Protective Cover | Tempered glass,Stand 7J impact |
| Price | Negotiable | Delivery Time | 5-10 work days |
| Operating Voltage | 100-277 VAC,20-30 VAC,347-480 VAC,141-391VDC,491-679 VDC | Minimum Order Quantity | 1 pcs |
| Enclosure Material | Aluminium | Power | 80W,100W,120W |
Tank
Series
80W
100W
120W
LED
Explosion
Proof
Lights
Power
Factor
＞
0.98
This user manual covers the range of ATEX and IECEx Tank Series LED normal/emergency luminaire. These luminaires are constructed with corrosion resistant epoxy coated aluminum alloy body and high impact resistance tempered glass diffuser.
Tank Series Single Luminaires LED are available from80W to 120W, providing ideal solutions for a wide range of harsh and hazardous applications.
Features
And
Benefits:
1.
High
efficacy
LED
Source
with
long
lifespan>100,000
hours.
2.
5-year
performance
warrant.
3.
Low
THD
around
10%,Less
interference.
4.
6KV
Surge
Protection.
5.
Robust
aluminium
housing
and
strong
tempered
glass.
6.
Vibration
and
shock
resistant.
7.
Low
maintenance.
8.
Dust
proof
structure
design
to
avoid
dust
accumulation.
Product Important Information:
| Type Of Protection | Ex db ,Ex tb | ||
| Protection Standards |
(IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-28, (IEC)EN 60079-31 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8 |
||
| Area Classfiction |
Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1, Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2 |
||
| Installation | (IEC)EN 60079-14 | ||
| Certificate | |||
| Equipment Coding |
II 2 G Ex db IIC T* Gb II 2 D Ex tb IIIC T* Db IP66 |
||
| Temperature Class | Rated power (W) | -40℃ ≤ Ta ≤ +55℃ | |
| Gas | Dust | ||
| 80W~120W | T5 | T95℃ | |
| ATEx Coding |
 II
2
G
/
II
2
D
|
||
| Ingress Protection | IP66 (IEC)EN 60529 | ||
| Cable entry | M20*1.5,M25*1.5,3/4 NPT | ||
| CE Mark |
The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC Type Examination and compliance with the Essential Health and Safety Requirements |
||
Electrical Supplies:
| Size:332*212*145mm | |||
| Voltage Range(AC) | 100-277VAC (standard) | ||
| Frequency Range(Hz) | 50/60Hz | ||
| Power Watts(W) | 80W | 100W | 120W |
| Standard Current Range(A) | 0.28~0.8 | 0.36~1.0 | 0.43~1.2 |

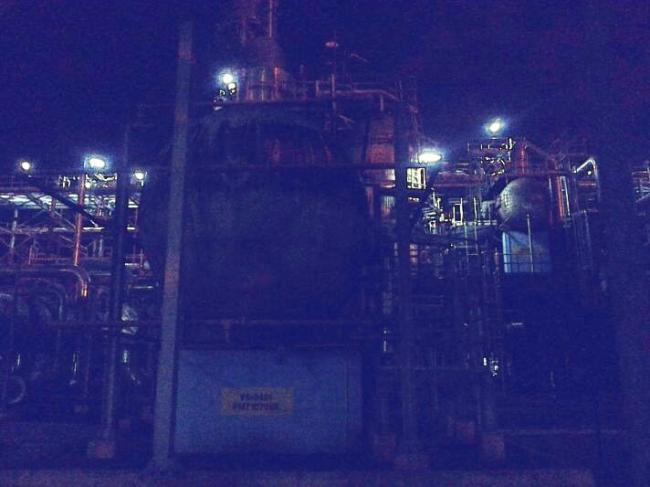

Applications:
1.
Cement
plants
2.
Warehouse
3.
Factory
4.
Power
Genera
5.
Power
Transmission
6.
Shipping
industry
Ordering
Information:
|
P/N |
Operating Voltage(V) |
Luminous Flux(lm) |
Power(W) |
CRI |
Color Temp. |
CCT(K) |
Temp. Classification |
| Ex-KTK80**CH-E |
100-277 VAC (141-392 VDC) |
12107 |
80 |
70 | Cool white | 5700K±300K | T5 |
| Ex-KTK80**NH-E | 12107 | 70 | Natural white | 5000K±300K | T5 | ||
| Ex-KTK80**NH-E | 12107 | 70 | Natural white | 4000±300k | T5 | ||
| Ex-KTK80**WM-E | 10896 | 70 | Warm white | 3000±300k | T5 | ||
| Ex-KTK100**CH-E | 14954 |
100 |
70 | Cool white | 5700±300k | T5 | |
| Ex-KTK100**NH-E | 14954 | 70 | Natural white | 5000±300k | T5 | ||
| Ex-KTK100**NH-E | 14954 | 70 | Natural white | 4000±300k | T5 | ||
| Ex-KTK100**WM-E | 13458 | 70 | Warm white | 3000±300k | T5 | ||
| Ex-KTK120**CH-E | 17310 |
120 |
70 | Cool white | 5700±300k | T5 | |
| Ex-KTK120**NH-E | 17310 | 70 | Natural white | 5000±300k | T5 | ||
| Ex-KTK120**NH-E | 17310 | 70 | Natural white | 4000±300k | T5 | ||
| Ex-KTK120**WM-E | 15579 | 70 | Warm white | 3000±300k | T5 |
Remarks:
1.
The
first
*
stands
for
Operating
Voltage
including
default-100
-
277
VAC
,
D-347-480VAC
,E-20-30VAC.
2.
The
second
*
stands
for
Candela
Distribution
including
H3V3,H5V5,H6V6.
