| Product Name | KBM 17 18 Series Compound Barrier Armoured Unarmoured Cable Glands | Combustible dust | Type ‘tb’ |
| Material | Stainless steel, nickel plated brass, brass, etc. | Degree of protection | IP66 |
| Increased safety | Type ‘e’ | Model Number | KBM17,KBM18 |
| Supply Ability | 10000pcs/day | Certification | ATEX,IECEx,CE,RoHS |
| Connection thread | NPT thread, Metric thread (M), Inch thread(G, exclude Ex db type) | Brand Name | KHJ |
| Payment Terms | L/C, T/T | Restricted breathing | Type ‘nR’ |
| Price | Negotiable | Delivery Time | 3-8work days |
| Ambient temperature | -43℃~+100℃,-60℃~+100℃(Please specify when ordering) | Minimum Order Quantity | 1 pcs |
KBM
17
18
Series
Explosion
proof
Cable
Glands
Compound
Barrier
Armoured
Unarmoured
Application
and
Features:
Technical Parameter:
|
Explosion protection |
Ex marking |
II
2
GD
Ex
db
IIC
Gb /Ex eb IIC Gb/Ex tb IIIC Db |
Ex db IIC Gb | Ex d IIC Gb |
| Ex eb IIC Gb | Ex e IIC Gb | |||
|
II
2/3
GD
Ex
db
IIC
Gb /Ex eb IIC Gb/Ex nR IIC Gc /Ex tb IIIC Db |
Ex nR IIC Gc | Ex nR IIC Gc | ||
| Ex tb IIIC Db | Ex tD A20 IP66 | |||
| Conformity to standards |
IEC60079-0,IEC60079-1,IEC60079-7,IEC60079-15,IEC60079-31 EN60079-0, EN60079-1, EN60079-7, EN60079-15, EN60079-31 GB3836.1,GB3836.2,GB3836.3,GB3836.8,GB12476.1,GB12476.5 |
|||
| Material | Stainless steel, nickel plated brass, brass, etc. | |||
| Degree of protection | IP66 | |||
| Ambient temperature | -43℃~+100℃,-60℃~+100℃(Please specify when ordering) | |||
| Connection thread | NPT thread, Metric thread (M), Inch thread(G, exclude Ex db type) | |||

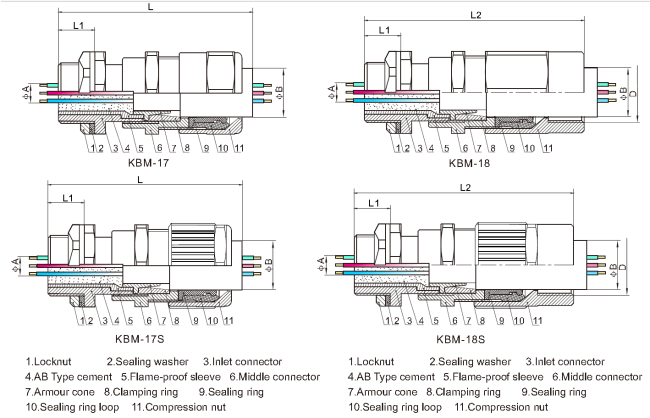

Outline
and
Installation
Dimension(Dimensions
in
mm):
| Mounting thread | Cable outer diameter (mm) |
Thread length L1(mm) |
Length L (mm) |
Length L2 (mm) |
HLBM-17 Weight (kg) |
HLBM-18 Weight (kg) |
|||
| M | G | NPT | OutletφA | Inlet φB | |||||
| M16X1.5 | / | / | 3～8 | 5.5～12 | 15 | 71.5 | 86.5 | 0.18 | 0.19 |
| M20X1.5A | G1/2A | NPT1/2A | 3～8 | 5.5～12 | 15 | 71.5 | 86.5 | 0.18 | 0.19 |
| M20X1.5 | G1/2 | NPT1/2 | 6.5～10 | 9.5～16 | 15 | 71.5 | 86.5 | 0.18 | 0.20 |
| M25X1.5A | G3/4A | NPT3/4A | 6.5～10 | 9.5～16 | 15 | 71.5 | 86.5 | 0.22 | 0.24 |
| M25X1.5 | G3/4 | NPT3/4 | 10～13 | 12.5～20.5 | 15 | 76.5 | 91.5 | 0.28 | 0.30 |
| M32X1.5A | G1A | NPT1A | 10～13 | 12.5～20.5 | 20 | 81.5 | 96.5 | 0.36 | 0.39 |
| M32X1.5 | G1 | NPT1 | 12.5～18.5 | 17～26 | 20 | 84.5 | 99.5 | 0.40 | 0.43 |
| M40X1.5A | G11/4A | NPT11/4A | 12.5～18.5 | 17～26 | 20 | 84.5 | 99.5 | 0.78 | 0.82 |
| M40X1.5 | G11/4 | NPT11/4 | 19～24.5 | 22～33 | 20 | 88.5 | 103.5 | 0.72 | 0.76 |
| M50X1.5A | G11/2A | NPT11/2A | 19～24.5 | 22～33 | 20 | 88.5 | 103.5 | 1.15 | 1.20 |
| M50X1.5 | G11/2 | NPT11/2 | 25～30 | 28～41 | 20 | 94 | 109 |
1.09 |
1.14 |
| M63A | G2A | NPT2A | 25～30 | 28～41 | 20 | 94 | 109 |
1.24 |
1.30 |
| M63 | G2 | NPT2 | 31～37 | 36～46 | 20 | 105.5 | 120.5 |
1.44 |
1.50 |
| M63C | G2C | NPT2C | 31～37 | 41～52.6 | 20 | 105.5 | 120.5 |
1.42 |
1.48 |
Note:
1.
Locknut
and
sealing
washer
(PTFE
washer)
are
supplied
for
Ex
e,
n,
t
type
products,Without
lock
nut
when
delivery
for
Ex
d
type.
Above
weight
is
based
on
nickel
plated
brass
material.
2.
Earth
lug
and
shroud
are
on
request.
3.
The
standard
pitch
of
metric
thread
products
is
1.5mm,
other
pitches
can
be
customized,
please
specify
when
ordering.
