| Price | Negotiable |
| MOQ | 1 pcs |
| Delivery Time | 3-8work days |
| Brand | KHJ |
| Place of Origin | Guangdong, China |
| Certification | ATEX,IECEx,CE,RoHS |
| Model Number | KBM13,KBM14 |
| Packaging Details | Negotiable |
| Payment Terms | L/C, T/T |
| Supply Ability | 10000pcs/day |
| Place of Origin | Guangdong, China | Packaging Details | Negotiable |
| Application in hazardous area | Zone 1 and Zone 2 Zone 21 and Zone 22 | Material | Stainless steel, nickel plated brass, brass, etc. |
| Degree of protection | IP66, IP67, IP68(2m/72h) | Increased safety | Type‘e’ |
| Model Number | KBM13,KBM14 | Supply Ability | 10000pcs/day |
| Certification | ATEX,IECEx,CE,RoHS | Connection thread | NPT thread, Metric thread (M), Inch thread(G, exclude Ex db type) |
| Brand Name | KHJ | Payment Terms | L/C, T/T |
| Flame proof | Type ‘d’ | Price | Negotiable |
| Delivery Time | 3-8work days | Product name | KBM 13 14 Series Double Seal Armoured Unarmoured Cable Glands |
| Ambient temperature | -43℃~+100℃ | Minimum Order Quantity | 1 pcs |
KBM
13
14
Series
Explosion
Proof
Cable
Glands
Double
Seal
Armoured
Unarmoured
Application
and
Features:
Technical Parameter:
|
Explosion protection |
Ex marking |
II
2
GD
Ex
db
IIC
Gb /Ex eb IIC Gb/Ex tb IIIC Db |
Ex db IIC Gb | Ex d IIC Gb |
| Ex eb IIC Gb | Ex e IIC Gb | |||
|
II
2/3
GD
Ex
db
IIC
Gb /Ex eb IIC Gb/Ex nR IIC Gc /Ex tb IIIC Db |
Ex nR IIC Gc | Ex nR IIC Gc | ||
| Ex tb IIIC Db | Ex tD A20 IP66/IP67/IP68(2m/72h) | |||
| Conformity to standards |
IEC60079-0,IEC60079-1,IEC60079-7,IEC60079-15,IEC60079-31 EN60079-0, EN60079-1, EN60079-7, EN60079-15, EN60079-31 GB3836.1,GB3836.2,GB3836.3,GB3836.8,GB12476.1,GB12476.5 |
|||
| Material | Stainless steel, nickel plated brass, brass, etc. | |||
| Degree of protection | IP66, IP67, IP68(2m/72h) | |||
| Ambient temperature | -43℃~+100℃ | |||
| Connection thread | NPT thread, Metric thread (M), Inch thread(G, exclude Ex db type) | |||

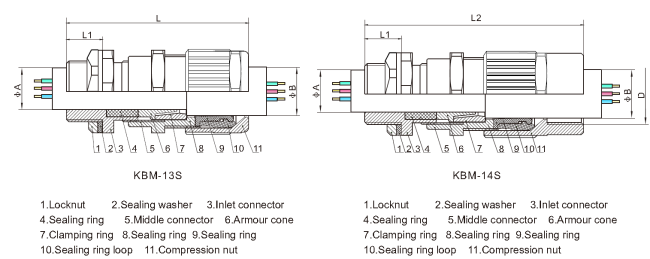

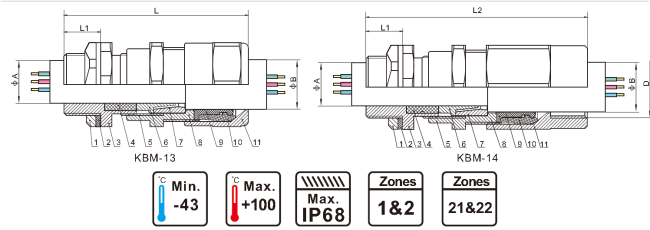

Outline and Installation Dimension(Dimensions in mm):
| Mounting thread | Cable outer diameter (mm) |
Thread length L1(mm) |
Length L (mm) |
Length L2 (mm) |
HLBM-13 Weight (kg) |
HLBM-14 Weight (kg) |
|||
| M | G | NPT | Outlet φA | InletφB | |||||
| M16X1.5A | 3～8.2 | 5.5～12 | 15 | 75.5 | 90.5 | 0.16 | 0.17 | ||
| M16X1.5 | 6.5～12 | 9.5～16 | 15 | 76.5 | 91.5 | 0.16 | 0.17 | ||
| M20X1.5A | G1/2A | NPT1/2A | 3～8.2 | 5.5～12 | 15 | 75.5 | 90.5 | 0.18 | 0.20 |
| M20X1.5 | G1/2 | NPT1/2 | 6.5～12 | 9.5～16 | 15 | 75.5 | 90.5 | 0.16 | 0.18 |
| M20X1.5C | G1/2C | NPT1/2C | 10～14.5 | 12.5～20.5 | 15 | 78.5 | 93.5 | 0.22 | 0.24 |
| M25X1.5A | G3/4A | NPT3/4A | 6.5～12 | 9.5～16 | 15 | 75.5 | 90.5 | 0.20 | 0.22 |
| M25X1.5 | G3/4 | NPT3/4 | 10～14.5 | 12.5～20.5 | 15 | 76.5 | 91.5 | 0.26 | 0.28 |
| M25X1.5C | G3/4C | NPT3/4C | 12.5～20.2 | 17～26 | 15 | 85.4 | 100.5 | 0.32 | 0.34 |
| M32X1.5A | G1A | NPT1A | 10～14.5 | 12.5～20.5 | 20 | 81.5 | 96.5 | 0.36 | 0.39 |
| M32X1.5 | G1 | NPT1 | 12.5～20.2 | 17～26 | 20 | 88.5 | 103.5 | 0.40 | 0.43 |
| M32X1.5C | G1C | NPT1C | 19.5～26.5 | 22～33 | 20 | 95.5 | 110.5 | 0.52 | 0.55 |
| M40X1.5A | G11/4A | NPT11/4A | 12.5～20.2 | 17～26 | 20 | 88.5 | 103.5 | 0.76 | 0.80 |
| M40X1.5 | G11/4 | NPT11/4 | 19.5～26.5 | 22～33 | 20 | 95.5 | 110.5 | 0.72 | 0.76 |
| M40X1.5C | G11/4C | NPT11/4C | 25～32.5 | 28～41 | 20 | 102.5 | 117.5 | 1.02 | 1.06 |
| M50X1.5A | G11/2A | NPT11/2A | 19.5～26.5 | 22～33 | 20 | 95.5 | 110.5 | 1.17 | 1.22 |
| M50X1.5 | G11/2 | NPT11/2 | 25～32.5 | 28～41 | 20 | 101.5 | 116.5 | 1.11 | 1.16 |
| M50X1.5C | G11/2C | NPT11/2C | 31.5～44.5 | 36～46 | 20 | 118 | 132.5 | 1.37 | 1.42 |
| M50X1.5D | G11/2D | NPT11/2D | 31.5～44.5 | 41～52.6 | 20 | 118 | 132.5 | 1.35 | 1.40 |
| M63A | G2A | NPT2A | 25～32.5 | 28～41 | 20 | 101.5 | 116.5 | 1.28 | 1.34 |
| M63 | G2 | NPT2 | 31.5～44.5 | 36～46 | 20 | 118 | 132.5 | 1.44 | 1.50 |
| M63C | G2C | NPT2C | 31.5～44.5 | 41～52.6 | 20 | 118 | 132.5 | 1.36 | 1.42 |
Note:
1.
Locknut
and
sealing
washer
(PTFE
washer)
are
supplied
for
Ex
e,
n,
t
type
products,Without
lock
nut
when
delivery
for
Ex
d
type.
Above
weight
is
based
on
nickel
plated
brass
material.
2.
Earth
lug
and
shroud
are
on
request.
3.
The
standard
pitch
of
metric
thread
products
is
1.5mm,
other
pitches
can
be
customized,
please
specify
when
ordering.
