| Price | Negotiable |
| MOQ | 1 pcs |
| Delivery Time | 5-10work days |
| Brand | KHJ |
| Place of Origin | Guangdong, China |
| Certification | CE,RoHS |
| Model Number | KSA360,KSA480,KSA720 |
| Packaging Details | φ 580*210mm |
| Payment Terms | L/C, T/T |
| Supply Ability | 400pcs/day |
| Surge Protec | L-N 4K/LN-PE 6K | Place of Origin | Guangdong, China |
| Packaging Details | φ 580*210mm | Model Number | KSA360,KSA480,KSA720 |
| Supply Ability | 400pcs/day | Certification | CE,RoHS |
| Brand Name | KHJ | Payment Terms | L/C, T/T |
| THD | ＜10% | Price | Negotiable |
| Delivery Time | 5-10work days | Operating Voltage | 100-277VAC,141-392VDC |
| Minimum Order Quantity | 1 pcs | Frequency | 50/60Hz |
| Insulation Class: | I | Power Factor | ＞0.98 |
| Lifespan | >50,000 hours | Power | 360W,480W,720W |
SeaAnemone
Series
360W
480W
720W
LED
High
bay
light
Light
IP
66
Features
And
Benefits:
1. Long lifespan.High lumen output.
2. Reinforced insulation design, enlarge electrical clearance to make sure electric safety.
3. Anti-off designed screw to ensure the installation safety.
4. 360W,480W ,720W available, 5 candela distribution optional (H1V1,H3V3,H4V4,H5V5,H6V6) for different applications.
5. 480W true 1 for 1 replacement for 1,000W MH. Energy savings up to 60%.
6. Terminal compartment is isolated from the LED source compartment. Ensure safety. Much easier for connection and maintenance.
7. Ambient temperature from -40°C to 55°C.
8. Life span> 50,000 hours.
9. Surge protection:L-N 4K/LN-PE 6K
Specifications:
Certificate:CE,RoHS
Executive
Standard:
| EN 55015:2013+A1:2015 | EN 61547:2009 | EN 61000-3-2:2014 |
| EN 61000-3-3:2013 | EN 60598-1:2015 | EN 60598-2-1:1989 |
| IEC 62321-4:2013 | IEC 62321-5:2013 | IEC 62321-6:2015 |
| IEC 62321-7-1:2015 |
Luminarie Efficacy:110lm/W
Lifespan:>50,000
hours
Operating
Voltage:
100-277
VAC/141-392
VDC
Power:360W/480W/720W
Frequency:50/60Hz
Power Factor: ＞0.98
THD:＜10%
Insulation
Class:
Ⅰ
Surge
Protection:L-N
4K/LN-PE
6K
LED
Driver:
Over
voltage
protection/short
circuit
protection
Weight:24Kg
Size:φ
580*210mm
Ambient
Temperature:
-40℃-+55℃
Connecting
Terminals:
3*2.0mm²(L+N+PE)
Cable
Entries:
1XM16*1.5
Earthing
Protection:
M4
(Internal
&
external
earth
bolts)
IP
Code:
IP66
Enclosure
Material:
Die-casting aluminium alloy
Enclosure
Colour:
Grey
RAL7040
Coating:
Epoxy
powder
coating
Exposed
Fastener:
Stainless
steel
Protective
Cover:
Tempered
glass,Stand
7J
impact
Applications:
1.
Cement
plants
2.
Warehouse
3.
Factory
4.
Power
Genera
5.
Power
Transmission
6.
Shipping
industry
Ordering
Information:
|
P/N |
Operating Voltage(V) |
Luminous Flux(lm) |
Power |
CRI |
Color Temp. |
CCT(K) |
| KSA360*WM-E |
100~277 AC (141~392 DC) |
36000 | 360 | 70 | Warm white | 3000±300 |
| KSA360*NH-E | 39600 | 360 | 70 | Natural white | 4000±300 | |
| KSA360*NH-E | 39600 | 360 | 70 | Natural white | 5000±300 | |
| KSA360*CH-E | 39600 | 360 | 70 | Cool white | 5700±300 | |
| KSA480*WM-E | 48000 | 480 | 70 | Warm white | 3000±300 | |
| KSA480*NH-E | 52800 | 480 | 70 | Natural white | 4000±300 | |
| KSA480*NH-E | 52800 | 480 | 70 | Natural white | 5000±300 | |
| KSA480*CH-E | 52800 | 480 | 70 | Cool white | 5700±300 | |
| KSA720*WM-E | 72000 | 720 | 70 | Warm white | 3000±300 | |
| KSA720*NH-E | 79200 | 720 | 70 | Natural white | 4000±300 | |
| KSA720*NH-E | 79200 | 720 | 70 | Natural white | 5000±300 | |
| KSA720*CH-E | 79200 | 720 | 70 | Cool white | 5700±300 |
Remarks:
1. *Stands for beam angle , including H1V1 / H4V4 / H5V5.

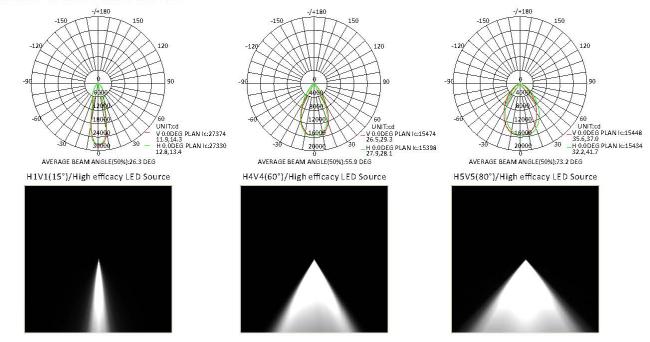

Candela Distribution:

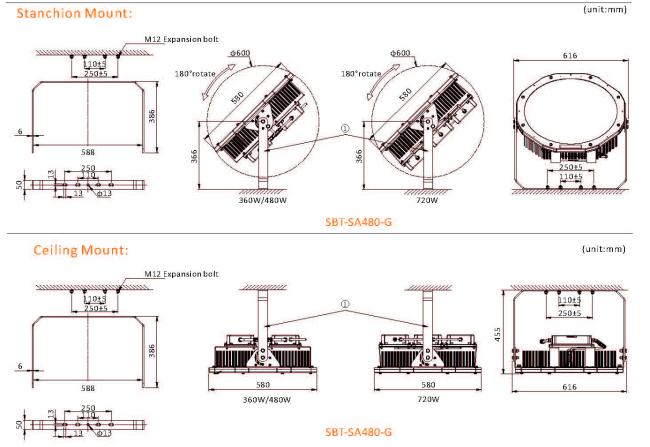

Installation
Method:
