Leadless Glass 2.6x5.0mm GDT Gas Discharge Tube 500V 30% Glass Discharge Tube

Price	Negotiable
MOQ	1500pcs
Delivery Time	7-10 Workdays
Brand	AMPFORT
Place of Origin	Dongguan,Guangdong,China
Certification	ROHS
Model Number	G3S500
Packaging Details	Tape,1500pcs per reel, 30K per carton
Payment Terms	T/T,Paypal
Supply Ability	10,000,000 Pieces Per Month

Product Details

Product Specification

Discharge current 8/20us	1000A	Place of Origin	Dongguan,Guangdong,China
Size	2.6x5.0mm	Packaging Details	Tape,1500pcs per reel, 30K per carton
Model Number	G3S500	Supply Ability	10,000,000 Pieces Per Month
Certification	ROHS	Name	Glass Discharge Tube G3S 2.6x5.0mm
Brand Name	AMPFORT	Payment Terms	T/T,Paypal
Voltage tolerance	30%	Package Type	Surface Mount
Series	G3S	Spark over voltage	500V
Type	Spark Gap Protectors	Price	Negotiable
Delivery Time	7-10 Workdays	Minimum Order Quantity	1500pcs

Product Description

SMD MELF Leadless Glass Discharge Tube G3S 2.6x5.0mm Surge Arrester 500V 30% 1KA

Application Of The SMD MELF Leadless Glass Discharge Tube G3S

* Power Supplies
* Motor sparks eliminating
* Relay switching spark absorbing
* Data line pulse guarding
* Electronic devices requiring UL497A and UL497B compliant
* Telephone/Fax/Modem
* High frequency signal transmitters/receivers
* Satellite antenna
* Radio amplifiers
* Alarm systems
* Cathode ray tubes in Monitors/TVs

Features Of The SMD MELF Leadless Glass Discharge Tube G3S

* Approximately zero leaking current before clamping voltage

* Less decay at on/off state.

* High capability to withstand repeated lightning strikes.

* Low electrode capacitance (≤1.0pF) and high isolation(≥100MΩ).

* RoHS compliant.

* Bilateral symmetrical.

* Temperature, humidity and lightness insensitive.

* Working temperature: -25℃~ +65 ℃

* Storage temperature: -25 ~ + ℃ 85℃

* Meets MSL level 1, per J-STD-020

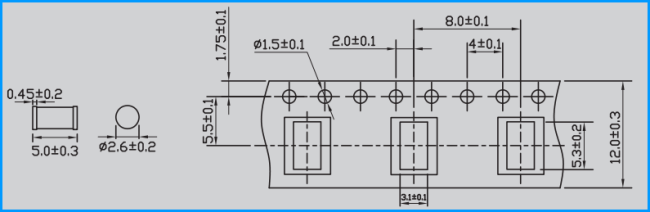

Size Of The SMD MELF Leadless Glass Discharge Tube G3S (mm)

Electrical Performances Of The SMD MELF Leadless Glass Discharge Tube G3S

Part No.	DC Spark Over Voltage (100v/s)V	Impulse Spark Over Voltage (1kv/μs)V	Insulation Resistance MΩ	Electrode Capacitance 1MHz 0.5V PF	Impulse Discharge Current (8/20μs 10 times)
G3S140	140±30%	≤600	≥100	≤1	1KA
G3S200	200±30%	≤600	≥100	≤1	1KA
G3S250	250±30%	≤650	≥100	≤1	1KA
G3S300	300±30%	≤900	≥100	≤1	1KA
G3S400	400±30%	≤1000	≥100	≤1	1KA
G3S500	500±30%	≤1400	≥100	≤1	1KA

Why Use Surge Protection?

Surge protectors protect personnel and equipment from damaging high-voltage surges from lightning, inductive switching, nuclear electromagnetic pulse, electrostatic discharge, or interference from power supply lines. From a design point of view, protection circuits only cost money and, if customer requirements or regulatory agencies do not require them, they will easily be forgotten. Yet, appropriate surge protection is beneficial. Protected equipment will not be affected by the highvoltage surges listed above. This will result in:

• Reduced field failures

• Improved product quality and reliability

• Reduced cost of quality

The figure below illustrates the cost effectiveness of adding surge protection by demonstrating the unit repair cost to break even over a range of return rates for added protection costs of $0.50/unit and $1.00/unit.

Through ongoing research and engineering improvements, Littelfuse has developed a family of Surge Protection Products that offer impressive characteristics for a variety of applications. Four differentiating characteristics are found in every Littelfuse Surge Protection Product:

• High surge current rating

• Long life

• Fast response

• Rugged construction

A Comparison of Surge Arrester Technologies

In today’s world of sensitive electronics, an increasingly important topic has become the protection of electronic components from overvoltage surges. There is a multitude of devices on the market for this purpose but what are the differences between them and which is best for what application? The following describes, analyzes, and compares these devices in detail. Basically there are two types of surge protection classifications with each consisting of its own group of devices:
