| Price | Negotiable |
| MOQ | 1000 Pieces |
| Delivery Time | 7-10 Workdays |
| Brand | AMPFORT |
| Place of Origin | Dongguan,Guangdong,China |
| Certification | UL,REACH |
| Model Number | 5DL |
| Packaging Details | 1000PCS PER BOX,4000PCS PER CARTON |
| Payment Terms | T/T,Paypal, Western Union |
| Supply Ability | 8,000,000 Pieces Per Month |
| Place of Origin | Dongguan,Guangdong,China | Shape | Coaxial,DO-35 |
| Insulation resistance @DC100V | 1GΩ | Packaging Details | 1000PCS PER BOX,4000PCS PER CARTON |
| Model Number | 5DL | Supply Ability | 8,000,000 Pieces Per Month |
| Certification | UL,REACH | Dc spark-over voltage | 75-3600V |
| Name | Gas Discharge Tube GDT 5.5x6mm Plasma Arrestors | Nominal discharge current 8/20μs | 5KA |
| Electrode Capacitance | <1PF | Brand Name | AMPFORT |
| Payment Terms | T/T,Paypal, Western Union | Voltage tolerance | 20% |
| Price | Negotiable | Delivery Time | 7-10 Workdays |
| Minimum Order Quantity | 1000 Pieces | Diameter | 5.5x6mm |
2 Electrode High Voltage Ceramic Gas Discharge Tube GDT 5.5x6mm Plasma Arrestors
Main Application Of The Gas Discharge Tube GDT 5.5x6mm Plasma Arrestors
• Transient Voltage Surge Suppression(TVSS)
• Cable Telephone Product
• Modems/Cable Modems
• Broadband/CATV/Coaxial Protectors
• Communication Lines
• Power supplies
• Antenna protection
• Air condition
• Modem
• Consumer electronics
• Dataline protection
Features Of The Gas Discharge Tube GDT 5.5x6mm Plasma Arrestors
• 100% Lead-Free(RoHs Compliant )
• Non-Radioactive
• Low capacitance: ≤1pF
• Small size :5.5*6.0mm
• Storage temperature: -40℃┅+90℃
• Operating temperature: -40℃┅+90℃
• Electrode: Tin Plated
• Fast response time
• High current rating
• Stable performance over life
• Very low capacitance
• High insulation resistance

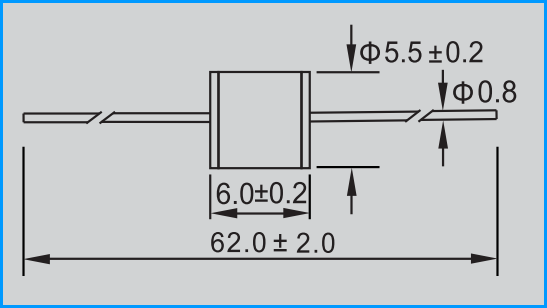

Size Of The Gas Discharge Tube GDT 5.5x6mm Plasma Arrestors (mm)
Specification Of The Gas Discharge Tube GDT 5.5x6mm Plasma Arrestors
| P/N | DC Spark Over Voltage (100v/s)V | Impulse Spark Over Voltage (1kv/μs)V | Insulation Resistance GΩ | lectrode Capacitance 1MHz 0.5V PF | Impulse Discharge Current (8/20μs 10times) | AC Discharge Current (50Hz 1s 10times)A |
| 5DL075L | 75±20% | ≤600 | ≥1 | ≤1 | 5KA | 5A |
| 5DL090L | 90±20% | ≤600 | ≥1 | ≤1 | 5KA | 5A |
| 5DL150L | 150±20% | ≤600 | ≥1 | ≤1 | 5KA | 5A |
| 5DL230L | 230±20% | ≤700 | ≥1 | ≤1 | 5KA | 5A |
| 5DL350L | 350±20% | ≤1000 | ≥1 | ≤1 | 5KA | 5A |
| 5DL420L | 420±20% | ≤1000 | ≥1 | ≤1 | 5KA | 5A |
| 5DL470L | 470±20% | ≤1200 | ≥1 | ≤1 | 5KA | 5A |
| 5DL600L | 600±20% | ≤1400 | ≥1 | ≤1 | 5KA | 5A |
| 5DL800L | 800±20% | ≤1600 | ≥1 | ≤1 | 5KA | 5A |
| 5DL1000L | 1000±20% | ≤1900 | ≥1 | ≤1 | 3KA | 5A |
| 5DL1500L | 1500±20% | ≤2500 | ≥1 | ≤1 | 3KA | 5A |
| 5DL2000L | 2000±20% | ≤3500 | ≥1 | ≤1 | 3KA | 5A |
| 5DL2500L | 2500±20% | ≤4000 | ≥1 | ≤1 | 3KA | 5A |
| 5DL3000L | 3000±20% | ≤4500 | ≥1 | ≤1 | 3KA | 5A |
| 5DL3600L | 3600±20% | ≤5000 | ≥1 | ≤1 | 3KA | 5A |
Cautions and warnings
* Do not operate surge arresters in power supply networks, whose maximum operating voltage exceeds the minimum spark-over voltage of the surge arresters.
* Surge arresters may become hot in the event of longer periods of current stress (burn risk). In the event of overload the connectors may fail or the component may be destroyed.
* If the contacts of the surge arresters are defective, current load can cause sparks and loud noises.
* Surge arresters must be handled with care and must not be dropped.
* Do not continue to use damaged surge arresters.
About us
Ampfort’s surge arresters provide fast protection for personnel, equipment and circuitry from high transient voltages and limit resulting dangerous currents. These hermetically sealed gas discharge tubes have precise sparkover voltages and the ability to handle high current surges. We offer a wide variety of GDT’s and it is important that arresters be selected in accordance with the requirements of the particular application. Arresters for special applications are also available and we welcome your inquiries if the model you need is not listed here.
