| Price | USD5-15 Per square meter |
| MOQ | 500 square meters |
| Delivery Time | Based on client's requirement |
| Brand | FASECbuildings |
| Place of Origin | Zhejiang, China |
| Certification | EN 1090-2-2018; ISO3834 |
| Model Number | OWN |
| Packaging Details | Pallets Packaing or Packing in Bulk (Seaworthy packings into container or bulk vessel) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200,000 square meters per month |
| Effective Width | 950mm,1150mm | Place of Origin | Zhejiang, China |
| Packaging Details | Pallets Packaing or Packing in Bulk (Seaworthy packings into container or bulk vessel) | Color | Customized |
| Model Number | OWN | Supply Ability | 200,000 square meters per month |
| Density | 12kg/m3 | Certification | EN 1090-2-2018; ISO3834 |
| Brand Name | FASECbuildings | Payment Terms | L/C, T/T |
| Thickness | 50mm,75mm,100mm | Price | USD5-15 Per square meter |
| Delivery Time | Based on client's requirement | Core Material | EPS sandwich panel |
| Minimum Order Quantity | 500 square meters | Features | Fire,Water,Sound,Weather proof ,etc. |
| Application | Warehouse, workshop, garage, factory and so on |
EPS sandwich panel production process adopts the colored steel sheet as surface board,and the core material is the self-extinguishing closed cell polystyrene foam,It is a kind of high strength composted building material, and it was formed in the automated continuous-molding machine, by combining the pressed colored steel sheet with the High Strength Adhesives.It has the characteristics of complete insulation and fire-proof, fast construction , durability, and beautiful appearance, etc.

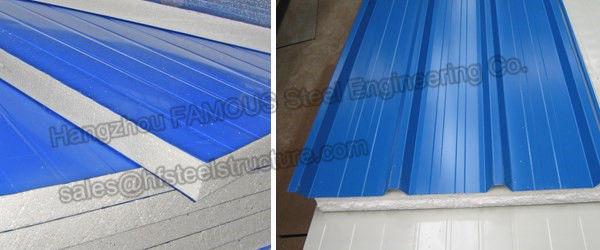

Expanded polystyrene (EPS) core sandwich panels
Specifications
| Thickness of color steel sheets | 0.3-0.8mm |
| Thickness of EPS/PU core | 40-200mm |
| Effective width |
Wall panel: 950mm 1150mm Roof panel: 950mm 1050mm |
| Length | As client’s requirements |
| Materials | EPS sandwich panel, Color steel sheets |
| Structure |
Upper and lower layer: Color steel sheet Middle: polystyrene foam board or polyurethane foam board |
| Color | All colors (standard international color) or customers samples’ color |
| The polystyrene density | 8-25kg/m3 |
| Sample | Available freely |
| Character | Light in weight, heat insulation, water resistant, green and environmental |
Features of EPS Sandwich Panel
1. EPS sandwich panel has the following characteristics: light dead weight, high mechanical strength, excellent shearing resistant performance, strong corrosion resistance, high durability, and weather fastness, etc.
2. The sandwich panel has excellent insulating performance: heat insulation, sound insulation, waterproof performance, etc.
3. It is easy to install and can be used many times over.
4. Nowadays, the EPS sandwich panel is widely used for cleaning workshops, industrial factory buildings, office buildings, stadiums, villas, and public buildings, etc.
Advantages:
1. Broad Availability ,wide range of material for your choice
2. Outstanding formality with beautiful appearance with rich color
3. Superior Durability
4. Excellent Cost Effectiveness
5. Light weight , easy to transportation ,easy to install
6. Fireproof , heat preservation ,sound isolation
Applications:

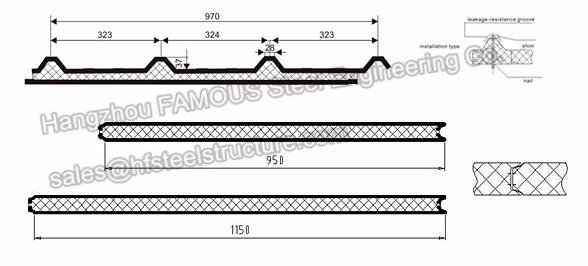

DETAILS OF THE PANEL JOINT

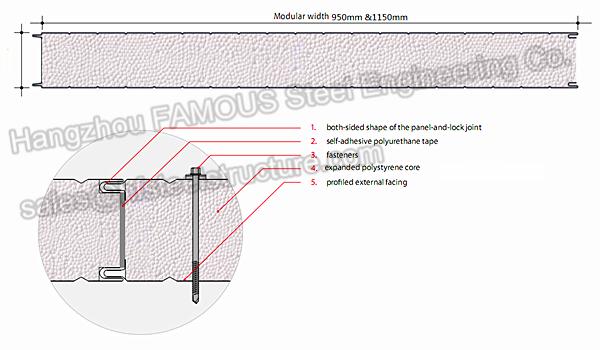

SECTIONAL VIEW OF THE PANELS

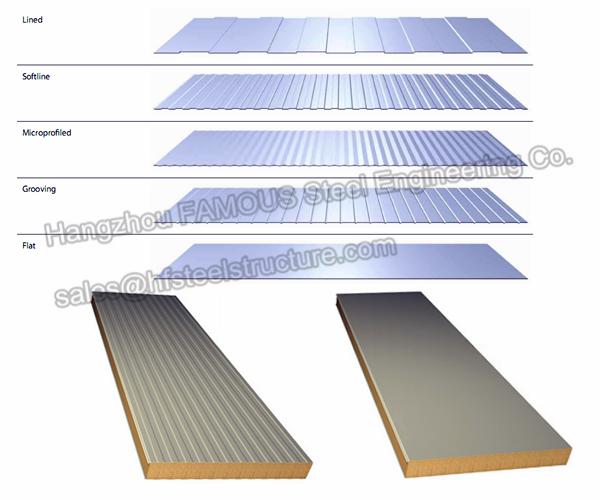

TYPES OF SURFACE SHAPE

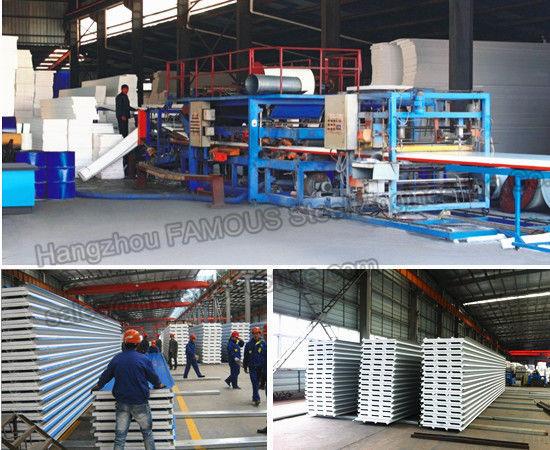

Production Process

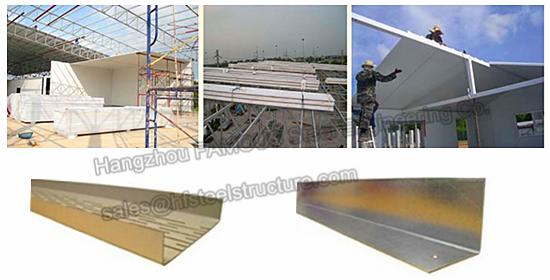

APPLICATION & INSTALL ACCESSORIES
Hangzhou FAMOUS Steel Engineering Co.,Ltd. focus on various structural steel construction and steel-related products supplying. FAMOUS received a lot of foreign projects from project engineering, fabrication, logistic and installation guidance etc. and become more professional in foreign project operation, specially in US-EU standard engineering and project management aspects. It owns advanced professional production equipment for the all automation production line of H type that is most advanced at home, pipe truss structure, box-beam production lines, CNC hydraulic punching posterior cutting C type steel, Z type steel production lines, vertical seam 360-degree whip-stitch roof board of hidden button type, weather board production lines and metal sandwich panel production lines, etc.
