| Price | USD10-50 Per square meter |
| MOQ | 500 square meters |
| Delivery Time | Based on client's requirement |
| Brand | FASECbuildings |
| Place of Origin | Zhejiang, China |
| Certification | EN 1090-2-2018; ISO3834 |
| Model Number | OWN |
| Packaging Details | Pallets Packaing or Packing in Bulk (Seaworthy packings into container or bulk vessel) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200,000 square meters per month |
| Effective Width | 950mm, 960mm, 1050mm, 1150mm | Place of Origin | Zhejiang, China |
| Packaging Details | Pallets Packaing or Packing in Bulk (Seaworthy packings into container or bulk vessel) | Color | Customized |
| Model Number | OWN | Supply Ability | 200,000 square meters per month |
| Density | 80-150kg/m3 | Certification | EN 1090-2-2018; ISO3834 |
| Brand Name | FASECbuildings | Payment Terms | L/C, T/T |
| Thickness | 50mm,75mm,100mm | Price | USD10-50 Per square meter |
| Delivery Time | Based on client's requirement | Core Material | AAC ALC Wall Panels |
| Minimum Order Quantity | 500 square meters | Features | Fire,Water,Sound,Weather proof ,etc. |
| Application | Warehouse, workshop, garage, factory and so on |

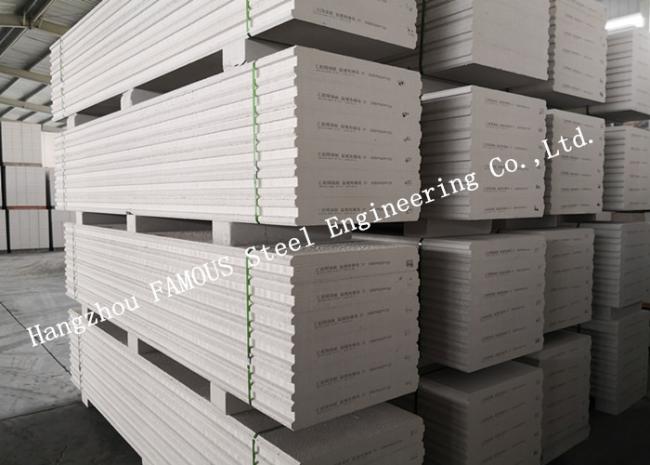

Light Concrete AAC ALC Board Panel is one kind of multi一porous concrete forming board which is made of silica sand, cement,lime, aluminum powder, etc. It is the main raw material that is cured under high temperature and high pressure steam with double一layer bidirectional steel mesh in the function of rust and anti-corrosion treatment inside. It can be used not only as the wall material such as the inner wall and the outer wall of the main building, but also the roof and floor panels. While the plate type like 50mm thickness can be used as the thermal insulation and fireproof board, which is a new type of building material with superior performance. It can be widely used in concrete structures and steel structure residential, office buildings, factory interior and exterior walls, slabs, roof panels, firewalls, explosion-proof walls, steel beams and columns fireproof panels, sound insulation walls, renovation of old buildings.
According to the usage, the board can be divided into partition wall panels, exterior wall panels, roof panels and floor panels. The reinforcement of each panel is determined according to the design load, material thickness and length. Generally available in thickness is from 50mm to 300mm, at intervals of 25mm. The length can be up to 6 meter.
Specifications:
| Length(mm) | 1800—6000 |
| Breadth(mm) | 600 |
| Depth(mm) | 75, 100, 125, 150, 175, 200, 250, 300,120, 180, 240 |
Type:
1. Internal wall panel:
| Specification | Grade | Compressive strength | Average dry density(kg/m3) | |
| Average value | Minimum value | |||
| ≤3000x600x75 | B05 A3.5 | ≥3.5 | ≥3.0 | ≤525 |
| ≤4250x600x100 | B05 A3.5 | ≥3.5 | ≥3.0 | ≤525 |
| ≤5050x600x125 | B05 A3.5 | ≥3.5 | ≥3.0 | ≤525 |
| ≤6000x600x150 | B05 A3.5 | ≥3.5 | ≥3.0 | ≤525 |
2. External wall panel:
| Specification | Grade | Compressive strength | Average dry density(kg/m3) | |
| Average value | Minimum value | |||
| ≤3750x600x100 | B05 A3.5 | ≥3.5 | ≥3.0 | ≤525 |
| ≤4690x600x125 | B05 A3.5 | ≥3.5 | ≥3.0 | ≤525 |
| ≤5750x600x150 | B05 A3.5 | ≥3.5 | ≥3.0 | ≤525 |
| ≤6000x600x175 | B05 A3.5 | ≥3.5 | ≥3.0 | ≤525 |
| ≤6000x600x200 | B05 A3.5 | ≥3.5 | ≥3.0 | ≤525 |
3. Floor panel and Roof panel
| Specification | Grade | Compressive strength | Average dry density(kg/m3) | |
| Average value | Minimum value | |||
| ≤2100x600x100 | B06 A5.0 | ≥5.0 | ≥4.0 | ≤625 |
| ≤2700x600x125 | B06 A5.0 | ≥5.0 | ≥4.0 | ≤625 |
| ≤3400x600x150 | B06 A5.0 | ≥5.0 | ≥4.0 | ≤625 |
| ≤4500x600x200 | B06 A5.0 | ≥5.0 | ≥4.0 | ≤625 |
| ≤5700x600x250 | B06 A5.0 | ≥5.0 | ≥4.0 | ≤625 |
| ≤6000x600x300 | B06 A5.0 | ≥5.0 | ≥4.0 | ≤625 |
The main performance are as follows:
1 .Lightweight: The specific gravity is only 500-650kg/m3, which is only 1/4 of concrete and 1/3 of clay brick. It is known as concrete floating on the water surface. The design value is 650kg/m3.
2. Fire resistance: 1 OOmm thickness board can reach 4 hours, and 125mm thick can reach 4 hours or more.
3. Insulation: The thermal conductivity is 0.09-0.114, and the thermal insulation effect of the 125mm thick material can reach the ordinary 370mm thick brick wall. It is a new type of building material that can achieve more than 65% energy saving in buildings with a single material.
4. Sound insulation: The sound insulation index of 100mm thick board reaches 40.8dB (transmission loss).
5. Seismic resistance: It can adapt to large inter-layer angular displacement, allowing the inter-layer displacement angle to be 1/150, which is 1/120 when using special joints. In the case of all joints, the board peeling does not occur when the inter-layer displacement angle is 1/20.
6. Environmental protection: no radiation, its hourly exposure is 12yp/h, equivalent to the level on the outdoor grass.
Advantage:
1.Thermal Insulation:
When used to build external walls,our products meet all strict requirements made by various countries without use of any other auxiliary thermal protecting materials. Tests show that products with a thickness of 4-5cm perform the same function of thermal protection as one layer of common blocks; with a thickness of 7-8cm.provides the same level of thermal protection as bricks double the thickness. Therefore it is not only a material that can be used to structures, it is also a high quality thermal material.
2.Fire resistance:
The raw materials used in our products are absolutely non-combustible. Experiment results show that 10-cm thick walls made of our factory could stand against fire for at least 4 hours. Hence,our products have been adopted to make fireproof walls.
3.Sound Insulation:
Test results shows that our products have excellent acoustic performance. Walls made of us could reduce the noise range from 30-52dB depending on the thickness of the walls and different surface disposed.
After combining the Light Concrete AAC ALC Board Panel and steel framing together, as well as considering other pipelines and envelops etc. treatment, FASEC steel modular house can be complete in much more time saving way. Compared to traditional concrete brick buildings, FASEC house can save as much as nearly half construction period.
