| Price | Negotiable |
| MOQ | 1 pieces |
| Delivery Time | 3-8 Working Days |
| Brand | AIRSUSTECH |
| Place of Origin | Guangzhou, China |
| Certification | ISO/TS16949:2009 |
| Model Number | 2B10×2T |
| Packaging Details | Strong Carton Box or as Customers Requirement |
| Payment Terms | T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram |
| Supply Ability | 1000pcs/week |
| Ships From | Any Port in China | Place of Origin | Guangzhou, China |
| Norgren | M/31102 | Packaging Details | Strong Carton Box or as Customers Requirement |
| After-sales Service | 12 Months | Model Number | 2B10×2T |
| Supply Ability | 1000pcs/week | Certification | ISO/TS16949:2009 |
| Brand Name | AIRSUSTECH | Payment Terms | T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram |
| Price | Negotiable | Delivery Time | 3-8 Working Days |
| Gas Hole | G1/2 | Minimum Order Quantity | 1 pieces |
| Production Process | Vulcanization | Packaging | Cartons Or As Customers' Request |
| Supplier | AIRSUSTECH |

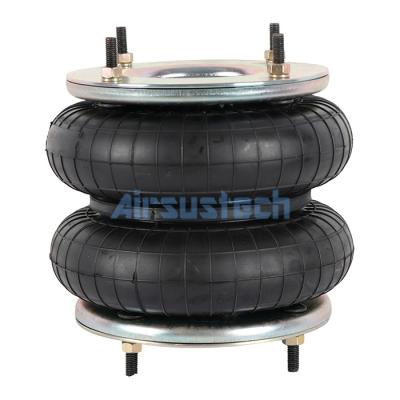

Static Height 190MM Contitech FD 210-22 DS Double Convolution Air Actuator Spring

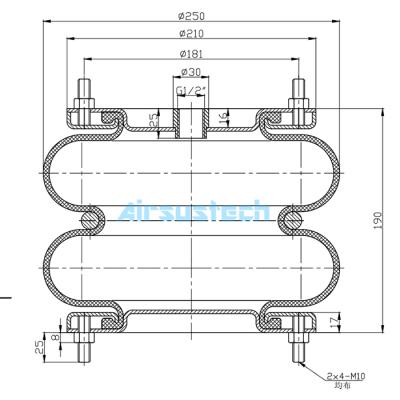

Product Technical Datas
Screw nuts type: 4×M10
Air inlet: G1/2
Min. height: 75 mm
Max. height: 300 mm
Maximum diameter: 270 mm
Center distance diameter: 181 mm
Plate width: 210 mm
Installation space required: 300 mm
Full stroke: 225 mm
The Technical Parameters of AIRSUSTECH 2B10×2T
Vibration isolation - dynamic characteristics values
| Pressure P [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force (Load) [kN] | 6.7 | 9.2 | 11.5 | 13.9 | 16.3 | 18.7 | 7.2 |
| Spring Rate [N/cm] | 100 | 123.5 | 148 | 171 | 194.5 | 218.5 | |
| Natural Frequency [Hz] | 1.9 | 1.8 | 1.8 | 1.8 | 1.7 | 1.7 |
Pneumatic application - static characteristic values
| Pressure p | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol.[l] |
| Height H [mm] | 250 | 5.28 | 7.22 | 9.16 | 11.2 | 13.2 | 15.1 | 8 |
| 200 | 7.66 | 10.3 | 13 | 15.7 | 18.4 | 21.1 | 6.7 | |
| 150 | 9.98 | 13.4 | 16.7 | 20.2 | 23.6 | 27 | 5.2 | |
| 100 | 12.4 | 16.5 | 20.6 | 24.8 | 28.9 | 33 | 3.3 |
Replaces These Air Springs (Air Bellows)
Replace Contitech FD 210-22 DS G1/2
Replace Contitech FD 210-22 DS M10-G1/2
Replace Contitech FD 210-22 DS G1/2-M10
Replace Firestone Style W01-R58-4058
Replace Firestone Style W01R584058
Replace
Firestone
Style
W01
R58
4058
Replace
Dunlop
Pneuride
10''×2
Replace Dunlop Pneuride 10'×2
Replace
Dunlop
Pneuride
10×2
Replace
Dunlop
PNP
305450112
Replace
Airbag
Man
DB1028
Replace
Dunlop
Springride
SP1538
Replace
Norgren
M/31102
Replace Norgren M31102
Replace
Norgren
M
31102
Replace
Parker
9109021
Key Considerations
Typical Use Cases
For application-specific mounting guidance or technical support, consult AIRSUSTECH engineering services with your system requirements.

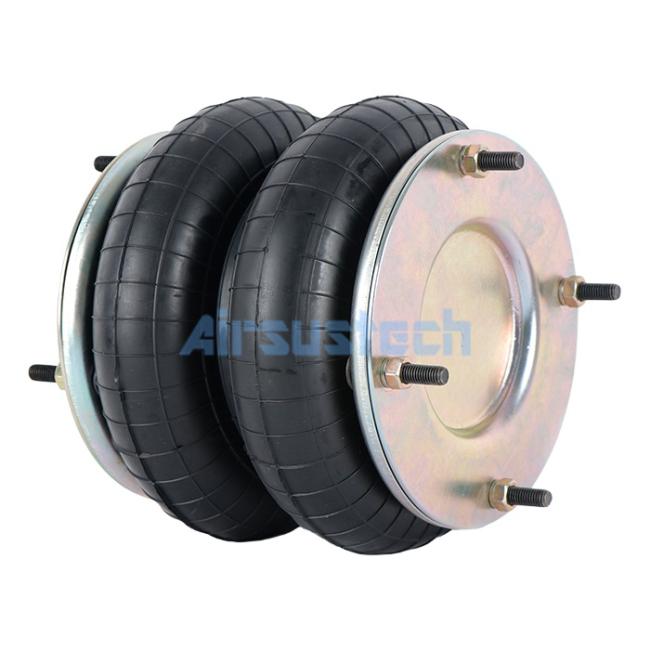

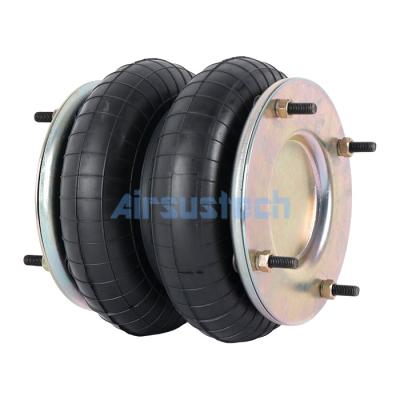

The Real Pictures of 2B10×2T Air Actuator
