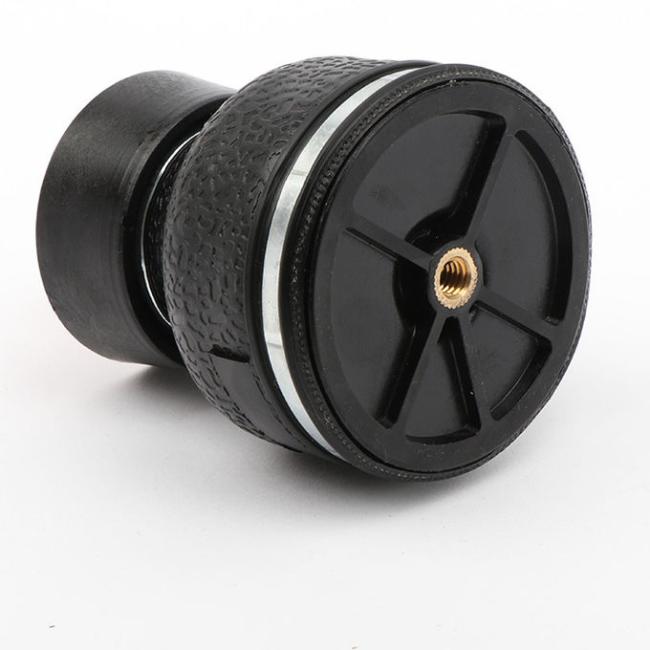

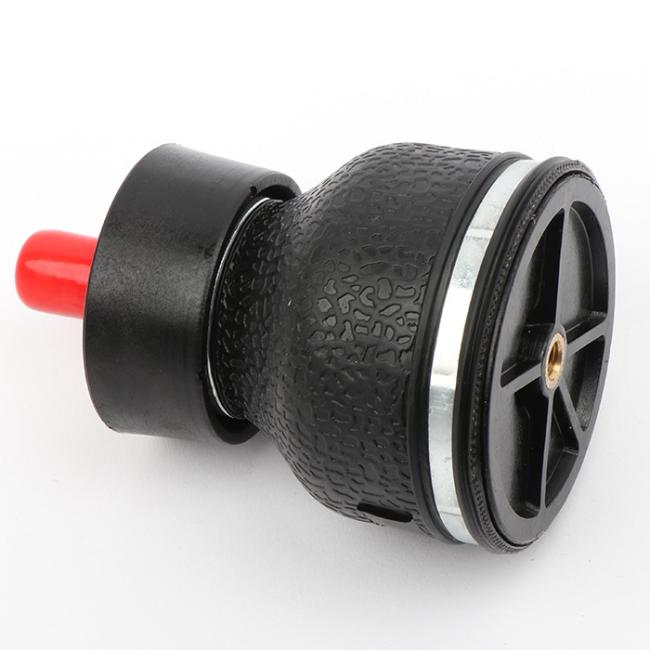

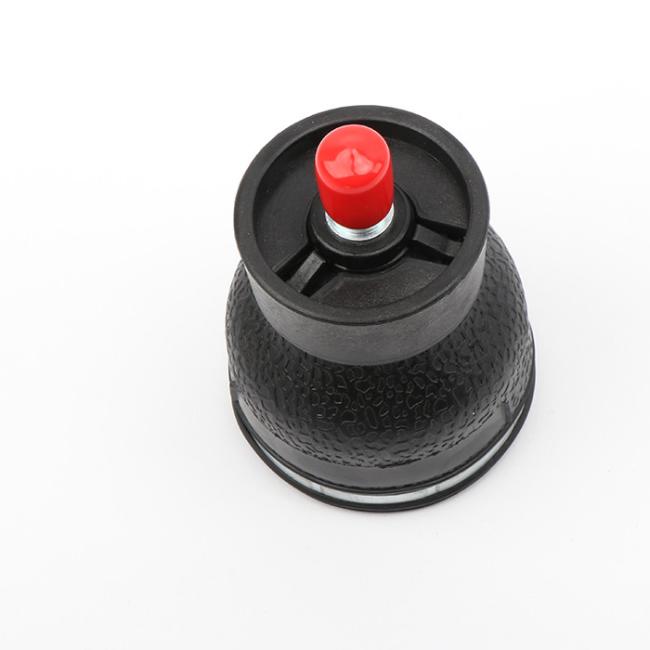

SZ 37-6 Contitech Air Spring For Automation Machine With MAX O.D. 3.6 Inch

AIRSUSTECH G3014 Satisfy all customer requirements


The cooperation with this company did put in a lot of effort, but she also allowed us to make great progress. It is these "requirements" from companies in developed countries that guide us in the direction of progress and progress. We have also been working hard to improve our products AIRSUSTECH G3014 Replaces Sz37-6 Contitech air spring to ensure that we meet the needs of more high-end customers. Even if the solution is just a small problem, we are constantly promoting and developing our products AIRSUSTECH G3014 Replaces Sz37-6 Contitech air spring. The customer's annual demand AIRSUSTECH G3014 Replaces Sz37-6 Contitech air spring reaches about 5,000, and the quality is also very good in terms of feedback.



​The company attaches great importance to the concept of manufacturing accurate and high-quality AIRSUSTECH G3014 Replaces Sz37-6 Contitech air spring Air Spring Sleeve Seat Suspension Air Spring Bag for Harley motorcycles. We are familiar with consumer needs and market trends. As experts in this field, we are committed to solving any problems for users.





AIRSUSTECH G3014 Cross others OEM



Manufacturer :AIRSUSTECH

Manufacturer Part Number :AIRSUSTECH G3014

Contitech Part Number :SZ 37-6

Contitech Part Number :SZ37-6

Contitech Part Number :SZ37 6

Goodyear Part Number :1S3-013

Goodyear Part Number :1S3 013

Goodyear Part Number :1S3013

 Piston Number-ASC-06-7-017
Lower installation: .625-11 UNC OUTSIDE / .125 NPTF INSIDE
Min/Max height: 1.5"/3.6"
Piston Number: ASC-06-7-017
Upper installation: 5/16-18 UNC
Firestone W02-358-3000, Firestone W02-358-3001, Prevost 950208





AIRSUSTECH G3014 Technical Parameters in mm



Nut / Blind Nut



Top Cover Plate Screw (Nut) Tooth : 1pcX5/16-18unc

Screw Center Distance of Top Cover Plate : in the middle

Bottom Cover Plate Screw (Nut) Tooth : 1pcX5/8-11unc

Screw Center Distance of Bottom Cover Plate : in the middle



 Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/8 N P.T.F. / 1/4NPTF



 Cover Plate

Top Cover Plate Diameter: 74.5 mm

Bottom Cover Plate Diameter: 61.2 mm



Rubber Bellows

Rubber Bellows MAX Diameter: 91.5 mm

Rubber Bellows Natural Diameter :80 mm

The Working Stroke : MAX 91 mm to MIN 38 mm

Maximum Height :91 mm

Minimum Height :38 mm

Compression Height : 53 mm



 Bumper block / Buffer block

Without Bumper Block



 Girdle Hoop / Girdle Ring

With Girdle Hoop :no Pieces of Girdle Hoop

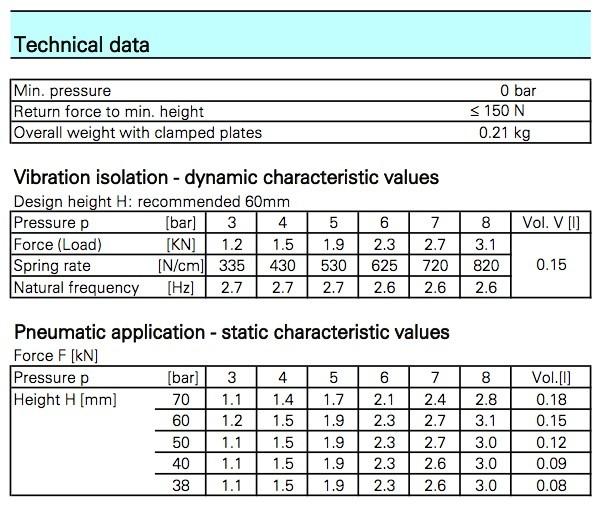

AIRSUSTECH G3014 Technical Parameters in Inch:



Design height
2.5
Load (at design height): 40 psig (lbs)
210
Load (at design height): 60 psig (pounds)
330
Load (at design height): 80 psig (lbs)
450
Natural frequency (@ 80 psig) (cpm)
220
Percentage of isolation when the mandatory frequency is 800 CPM
91.8
Isolation percentage at forced frequency 1500 CPM
97.8





material:2-layer standard line
Air isolator

Maximum diameter @ 100 PSIG (inch)
3.4
Maximum height (inch)
2.9
Maximum stroke (inch)
1.4
Minimum usable height (inches)
1.5
80PSI force at 1 inch stroke (lbs)
450
Maximum thrust for maximum stroke @ 80PSI (pounds)
400





​
