| Price | Negotiable |
| MOQ | 1 pieces |
| Delivery Time | 3-8 Working Days |
| Brand | AIRSUSTECH |
| Place of Origin | Guangzhou, China |
| Certification | ISO/TS16949:2009 |
| Model Number | 1B6×1T |
| Packaging Details | Strong Carton Box or as Customers Requirement |
| Payment Terms | T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram |
| Supply Ability | 1000pcs/week |
| Air Fitting | G1/2 | Condition | Brand New |
| Place of Origin | Guangzhou, China | Product Number | 1B6×1T |
| Packaging Details | Strong Carton Box or as Customers Requirement | Max Inflation Pressure | 0.7MPa |
| Maximum Diameter | 175 MM | Model Number | 1B6×1T |
| Supply Ability | 1000pcs/week | Certification | ISO/TS16949:2009 |
| Brand Name | AIRSUSTECH | Payment Terms | T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram |
| Price | Negotiable | Delivery Time | 3-8 Working Days |
| Minimum Order Quantity | 1 pieces | Warranty Special | One Year |
| Supplier | AIRSUSTECH | Compatibility | 100% Accuracy of Fit |
| Attribute | Value |
|---|---|
| Supplier | AIRSUSTECH |
| Product Number | 1B6×1T |
| Maximum Diameter | 175 MM |
| Air Fitting | G1/2 |
| Compatibility | 100% Accuracy of Fit |
| Condition | Brand New |
| Max Inflation Pressure | 0.7MPa |
| Warranty Special | One Year |
Air spring is a device that uses compressed air to achieve suspension and shock absorption. It is widely used in automobiles, trucks, trains, engineering machinery and other fields. Among them, stamped flange air spring, as an important type, has the advantages of simple structure, easy use and stable performance.
| Pressure P [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
|---|---|---|---|---|---|---|---|
| Force (Load) [kN] | 3.1 | 4.2 | 5.3 | 6.4 | 7.5 | 8.7 | 0.87 |
| Spring Rate [N/cm] | 158.5 | 200.5 | 245.5 | 286 | 331.5 | 374.5 | |
| Natural Frequency [Hz] | 3.5 | 3.4 | 3.4 | 3.3 | 3.3 | 3.3 |
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol.[l] |
|---|---|---|---|---|---|---|---|
| Height H [mm] 90 | 2.66 | 3.63 | 4.62 | 5.62 | 6.67 | 7.75 | 0.91 |
| 80 | 3.43 | 4.63 | 5.93 | 7.05 | 8.32 | 9.63 | 0.8 |
| 70 | 4.17 | 5.57 | 6.99 | 8.42 | 9.89 | 11.4 | 0.67 |
| 60 | 4.94 | 6.54 | 8.19 | 9.83 | 11.5 | 13.2 | 0.51 |

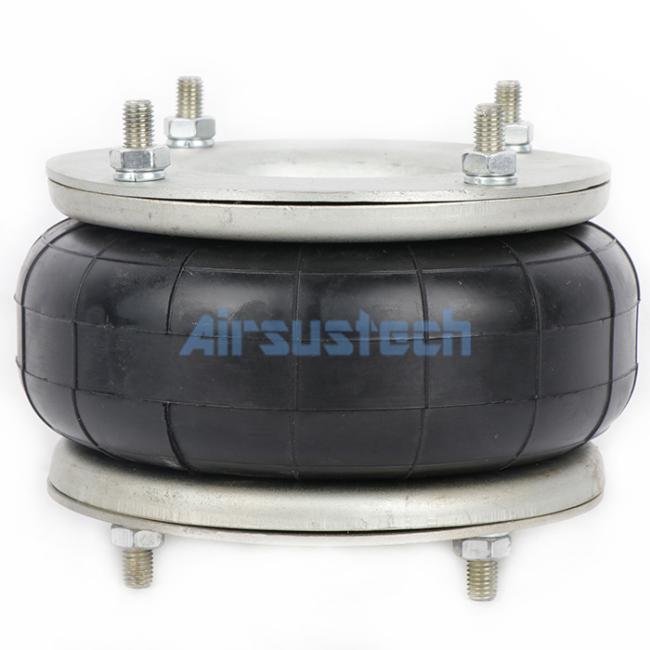

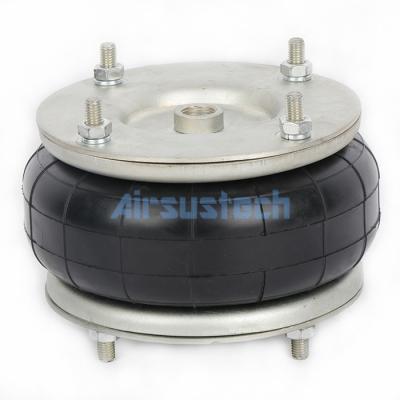

Contitech Manufacturer Number: FS 76-7 DS, FS 767 DS, FS 76 7 DS
Firestone Manufacturer Number: W01-R58-4052, W01R584052, W01 R58 4052
Dunlop Pneuride Manufacturer Number: 6"x1 (Steel), 6x1 (Steel), 6'x1 (Steel)
Dunlop Springride Manufacturer Number: SP1536, SP 1536, SP 15 36
Norgren Manufacturer Number: M/31061, M31061, M 31061
Parker Manufacturer Number: 9109004
| Single Convoluted | Double Convoluted | Triple Convoluted |
|---|---|---|
| FS 40-6 CI | FD 40-10 CI | FT 330-29 CI |
| FS 50-5 CI | FD 70-13 CI | FT 430-32 CI |
| FS 70-7 CI | FD 110-15 CI | FT 530-32 CI |
| FS 100-10 CI | FD 120-17 CI | FT 530-35 CI |
| FS 120-10 CI | FD 120-20 CI | FT 960-34 CI |
| FS 120-12 CI | FD 200-19 CI | FT 1330-35 CI |
| FS 200-10 CI | FD 200-22 CI | |
| FS 310-12 CI | FD 200-25 CI | |
| FS 330-11 CI | FD 330-22 CI | |
| FS 330-14 CI | FD 330-30 CI | |
| FS 530-11 CI | FD 530-22 CI | |
| FS 530-14 CI | FD 530-35 CI | |
| FS 960-12 CI | FD 960-22 CI | |
| FS 1330-11 CI | FD 1330-25 CI |
