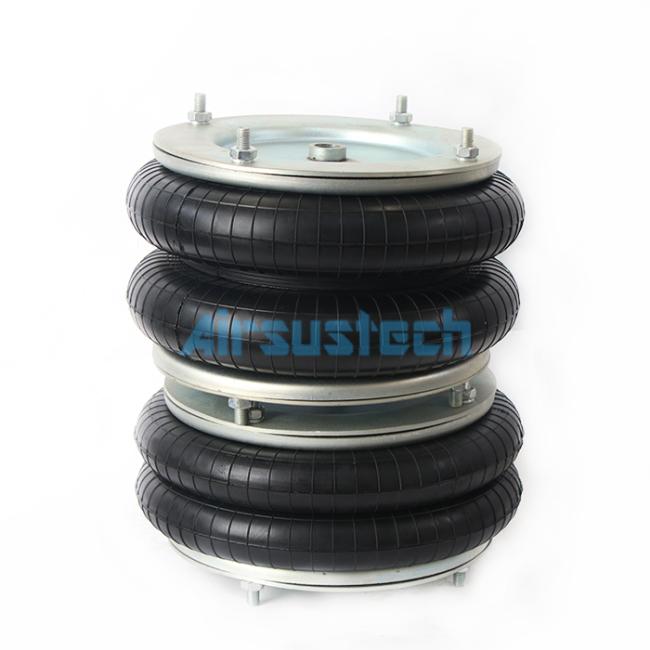

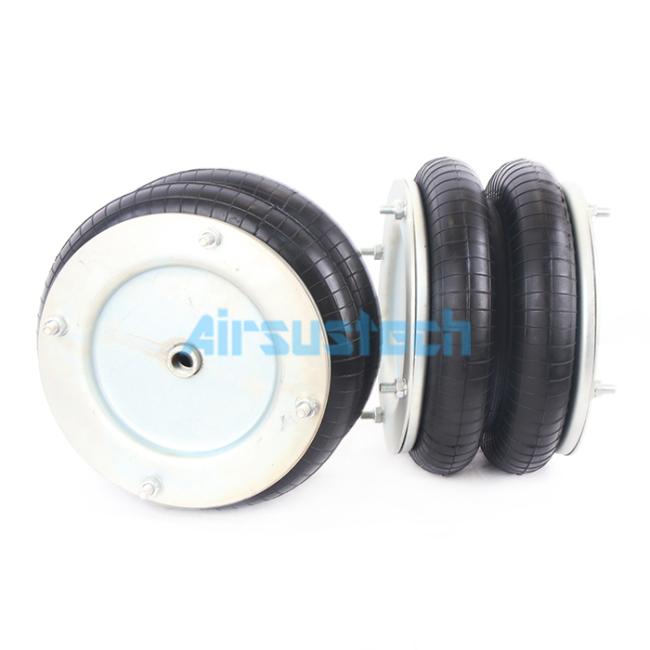

FD 412-22 DS Continental Air Actuator for Pneumatic Applications 12''×2 Series Airbag
Price
Negotiable
MOQ
1 pieces
Delivery Time
3-8 Working Days
Brand
AIRSUSTECH
Place of Origin
Guangzhou, China
Certification
ISO/TS16949:2009
Model Number
2B12×2T
Packaging Details
Strong Carton Box or as Customers Requirement
Payment Terms
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability
1000pcs/week
Product Details
Product Specification
Place of Origin
Guangzhou, China
Working Stroke
225 MM
Sample
Available
Packaging Details
Strong Carton Box or as Customers Requirement
Maximum Diameter
330 MM
Model Number
2B12×2T
Supply Ability
1000pcs/week
Certification
ISO/TS16949:2009
Brand Name
AIRSUSTECH
Payment Terms
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Brand
AIRSUSTECH
Dunlop Pneuride
12"x2
Price
Negotiable
Delivery Time
3-8 Working Days
Quality
100% Tested
Minimum Order Quantity
1 pieces
Screw Type
4-M10
Product Description
FD
412-22
DS
Continental
Air
Actuator
for
Pneumatic
Applications
12''×2
Series
Airbag
Product
Specifications
Attribute
Value
Brand
AIRSUSTECH
Model
Number
2B12×2T
Working
Stroke
225
MM
Screw
Type
4-M10
Maximum
Diameter
330
MM
Dunlop
Pneuride
12"x2
Sample
Available
Quality
100%
Tested
Product
Details
Nut/Blind
nuts
Nut
length:
25
mm
Number
of
screws
on
the
top
cover:
4
Number
of
bottom
cover
screws:
4
Top
cover
plate
screw
(nut)
tooth:
4-M10
Top
cover
screw
center
distance:
232
mm
Screw
(nut)
teeth
of
the
bottom
cover
plate:
4-M10
Center
distance
of
bottom
cover
plate
screw:
232
mm
Air
hole/air
inlet/air
connector
Air
hole/air
inlet:
G1/2
Cover
Top
cover
diameter:
260
mm
Diameter
of
bottom
cover:
260
mm
Rubber
bellows
Maximum
diameter
of
rubber
bellows:
330
mm
Buffer
block/buffer
block:
Unbuffered
block
Waist
ring/waist
ring:
Strap
ring:
no
strap
ring
OEM
Original
Manufacturer
Air
Spring
Supplier
Reference
Contitech
FD
412-22
DS,
FD
41222
DS,
FD
412
22
DS
Firestone
W01-R58-4061,
W01R584061,
W01
R58
4061
Dunlop
Pneuride
12"x2,
12x2,
12'x2
Dunlop
Springride
SP1541,
SP
1541,
SP
15
41
Norgren
M/31122,
M31122,
M
31122
Parker
9109041
Air
Spring
Function
The
air
spring
has
nonlinear
characteristics,
and
its
stiffness
changes
with
the
load,
so
its
natural
frequency
remains
almost
unchanged
under
any
load,
so
the
spring
device
has
almost
constant
characteristics.
It
has
good
high-frequency
vibration
absorption
and
sound
insulation
performance
It
can
simultaneously
withstand
axial
and
radial
loads
Different
bearing
capacities
can
be
obtained
by
adjusting
the
internal
pressure
