Contitech
FS
210-10
DS
G1/2
67404
Industrial
Convoluted
Rubber
Air
Shock
Spring
Product
Specifications
|
Attribute
|
Value
|
|
Trademark
|
AIRSUSTECH
|
|
Part
Number
|
1B10×1T
|
|
Full
Stroke
|
100
MM
|
|
Structure
|
Single
Convolution
|
|
Screw
Type
|
4-M10
|
|
Norgren
|
M/31101
|
|
Working
Temperature
|
-40℃+70℃
|
|
Manufacturer
Warranty
|
12
Months
|
Compatible
Replacement
Parts
AIRSUSTECH
1B10
×1T
replaces
these
air
bellows:
-
Firestone
W01-R58-4057,
WO1-R58-4057
-
Firestone
W01R584057,
WO1R584057
-
Firestone
W01
R58
4057,
WO1
R58
4057
-
Dunlop
Pneuride
10''×1
-
Dunlop
Pneuride
10'×1
-
Dunlop
Pneuride
10×1
-
Dunlop
Springride
SP2523
-
Dunlop
Springride
SP
2523
-
Dunlop
Springride
SP
25
23
-
Contitech
FS
210-10
DS,
FS210-10
DS
-
Contitech
FS
21010
DS,
FS21010
DS
-
Contitech
FS
210
10
DS,
FS210
10
DS
-
Norgren
M/31101
-
Norgren
M31101
-
Norgren
M
31101
-
Parker
9109024
Technical
Specifications
|
Specification
|
Value
|
|
Maximum
Outside
Diameter
|
270
mm
|
|
Installation
Space
|
300
mm
|
|
Cover
Plate
Width
|
210
mm
|
|
Center
Distance
|
181
mm
|
|
Screw
Type
|
4-M10
|
|
Compressed
Height
|
50
mm
|
|
Extended
Height
|
150
mm
|
|
Material
|
Rubber
and
steel
|
Vibration
Isolation
-
Dynamic
Characteristics
|
Pressure
P
[bar]
|
3
|
4
|
5
|
6
|
7
|
8
|
Vol.
V[l]
|
|
Force
(Load)
[kN]
|
6.9
|
9.4
|
11.9
|
14.4
|
16.9
|
19.3
|
3.4
|
|
Spring
Rate
[N/cm]
|
203
|
257
|
313
|
369
|
428
|
481
|
|
|
Natural
Frequency
[Hz]
|
2.76
|
2.6
|
2.6
|
2.5
|
2.5
|
2.5
|
|
Pneumatic
Application
-
Static
Characteristics
|
Pressure
p
[bar]
|
3
|
4
|
5
|
6
|
7
|
8
|
Vol.[l]
|
|
Height
H
[mm]
120
|
6.94
|
9.41
|
11.9
|
14.4
|
16.9
|
19.3
|
3.4
|
|
Height
H
[mm]
100
|
8.94
|
12.1
|
15.2
|
18.3
|
21.4
|
24.4
|
2.9
|
|
Height
H
[mm]
80
|
10.9
|
14.6
|
18.3
|
22
|
25.7
|
29.3
|
2.2
|
|
Height
H
[mm]
60
|
12.2
|
16.4
|
20.4
|
24.6
|
28.7
|
32.7
|
1.4
|
Important
Safety
Guidelines
for
Air
Spring
Installation
Pressurization
Requirements
Air
springs
must
never
be
pressurized
without
proper
external
restraint
from
either
a
structural
frame
or
appropriate
load
support.
Unrestricted
inflation
can
lead
to
uncontrolled
expansion
and
potential
component
failure.
Stroke
Limitation
Mechanical
stops
(bump
stops/external
stops)
are
mandatory
to
prevent
over-extension
or
over-compression.
When
stacking
multiple
air
springs,
ensure
proper
alignment
and
secure
fixation
to
avoid
instability.
Operating
Pressure
Range
Air
springs
operate
as
single-acting
actuators
and
must
not
be
subjected
to
vacuum
or
sub-atmospheric
pressure
conditions.
Monitor
for
potential
overpressure
situations
during
rapid
compression
events.
Additional
Safety
Measures
-
Always
verify
system
pressure
ratings
before
installation
-
Use
appropriate
mounting
hardware
to
prevent
movement
under
load
-
Regularly
inspect
for
signs
of
wear
or
fatigue
Failure
to
follow
these
guidelines
may
compromise
system
integrity
and
void
product
warranties.

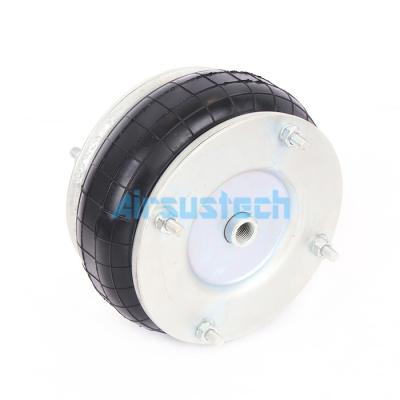

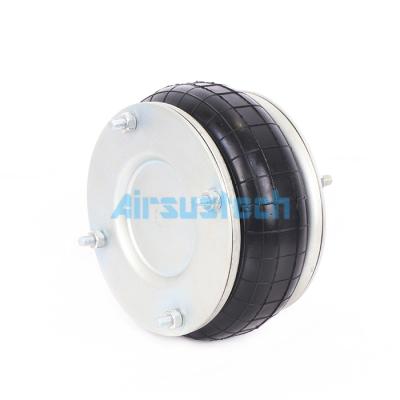

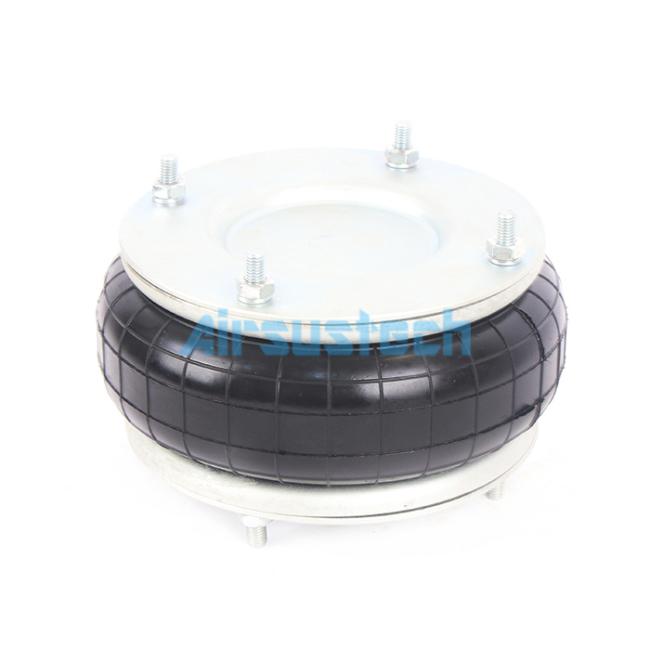

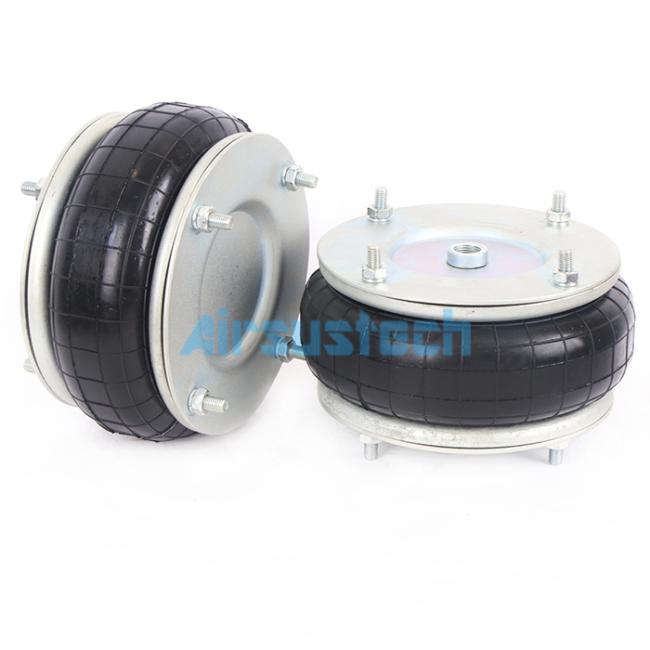

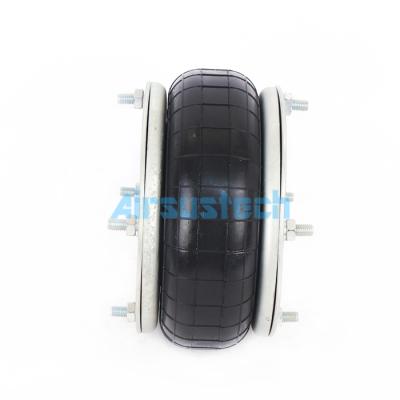

Product
Images
