2H630262 AIRSUSTECH Flange Connection Rubber Air Spring for Firestone W01-358-5126

2H630262 AIRSUSTECH Flange Connection Rubber Air Spring for Firestone W01-358-5126

OEM Cross References

Product Detailed Datas

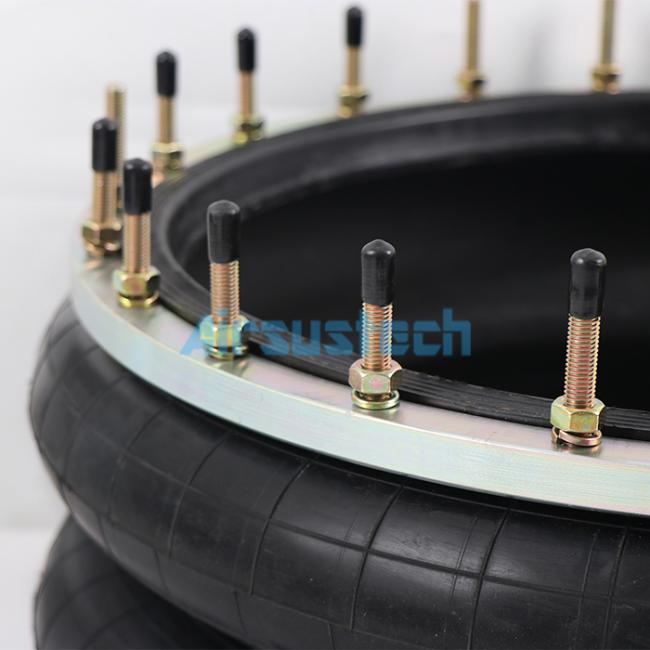

• AIRSUSTECH 2H630262 air spring is made of natural rubber with aluminum flange ring. The minimum height is 90 mm, maximum height is 340 mm and the full stroke is 250 mm.
• The static height of 2H630262 is 262 mm, center to center distance is 560 mm and the flange diameter is 610 mm. When the air pressure at 0.7MPa, the maximum outer diameter of air spring is 660 mm.

2H630262 Technical Parameters

The Introduction of Flange Connection Air Springs

• Air spring is a device that uses compressed air to achieve suspension and shock absorption. It is widely used in automobiles, trucks, trains, engineering machinery and other fields. Among them, stamped flange air spring, as an important type, has the advantages of simple structure, easy use and stable performance.
• The main components of stamped flange air spring include rubber bellow, flange and air valve. The bellow is composed of multiple layers of rubber and polyester belt, with good elasticity and wear resistance; the flange is usually made of high-quality steel, with high strength and corrosion resistance; the air valve is used to adjust the air pressure to ensure the normal operation of the spring. These parts are precisely assembled and connected to form a complete stamped flange air spring device.
• Secondly, the working principle of stamped flange air spring is mainly to use the compression and release of gas to achieve shock absorption and suspension functions. When the vehicle passes through uneven roads or is subjected to external impact, the spring body will be squeezed or stretched, causing the gas to produce pressure changes inside the spring body. Through the adjustment of the air valve, the flow and pressure of the gas can be controlled, thereby achieving shock absorption and suspension adjustment of the vehicle. The stamped flange air spring has a large compression volume and a fast reaction speed, which can effectively improve the stability and comfort of the vehicle.

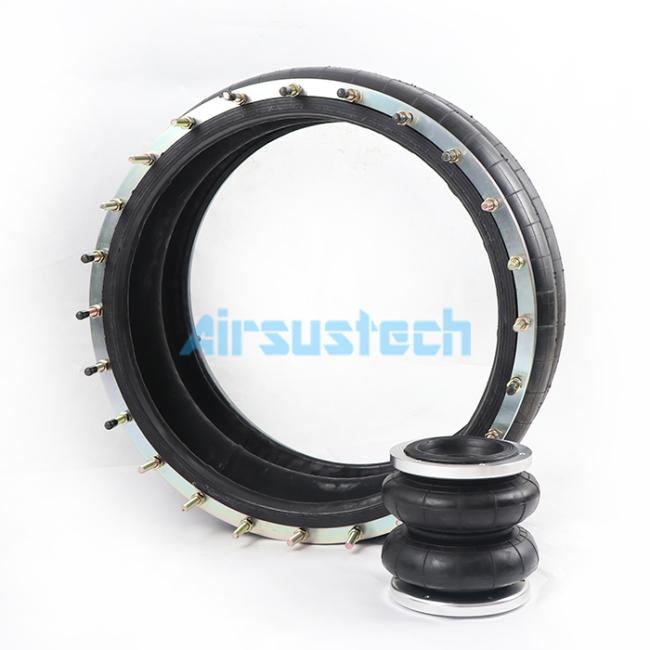

Other Kinds of Flange Rubber Air Suspensions
