| Price | US$0.01~US$86.99 |
| MOQ | 1 |
| Delivery Time | 3-9 working days |
| Brand | DF/OEM/Neutral |
| Place of Origin | Shenzhen, China |
| Certification | CE/ROHS/FCC/REACH/ISO9001/ISO14001 |
| Model Number | TK-MC-RM-14S |
| Packaging Details | Export Standard Packing |
| Payment Terms | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability | 1000PCS/Week |
| Working Rate | 10/100M or 10/100/1000M | Input voltage | AC 100-240V 50/60Hz , DC 36-72V |
| Place of Origin | Shenzhen, China | Packaging Details | Export Standard Packing |
| Product Name | 14 Slots Rack Mount Chassis For Fiber Optic Media Converter | Mode | Singlemode, Multimode |
| Dimensions | 427mm (W)×230mm (D)×91 mm (H) | Qty of Media Converter | 14 Slots |
| Standard | IEEE802.3,IEEE802.3u,IEEE802.3ab ,IEEE802.3z ,IEEE802.1q,IEEE802.1p,IE EE802.1d | Model Number | TK-MC-RM-14S |
| Supply Ability | 1000PCS/Week | Certification | CE/ROHS/FCC/REACH/ISO9001/ISO14001 |
| Brand Name | DF/OEM/Neutral | Payment Terms | Western Union, T/T, MoneyGram/Paypal |
| Power output | Power output 80W maximum | Operating humidity | 5%~90% |
| Price | US$0.01~US$86.99 | Delivery Time | 3-9 working days |
| Output voltage | DC 12V | OEM | Yes, Acceptable |
| Minimum Order Quantity | 1 | Maintaining temperature | 40~70ºC |
| Operating temperature | 0~50ºC |
2U 19 Inch 14 Slots Rack Mount Chassis For Fiber Optic Media Converter
Fiber optical media converter is the Ethernet transmission media conversion unit which interconverts the electric signals on twisted pair cable of short distance and optical signals of long distance. It is also called fiber to Ethernet converter. Fiber optical media converter generally uses at internet environment where Ethernet cable could not cover and have to use fiber optical cable to extend the transmission distance. Also it is located in internet access solution of MAN broadband.
Fiber optical media converter breaks the 100m distance limits of Ethernet electric cable, makes the internet coverage extending to 120KM effectively, bases on high performance dedicated chipset and cache of large capacity to provide non-blocking transmitting performances. In addition, it also provides the function of balancing flow, isolating the conflicts and dedicating errors to ensure the security and stability of data transmission.
The 14-Slot Rack-mount Chassis is specially designed for accommodating chassis-based Media Converters. It is a standard 19-inch 2U height rack-mount chassis which can be suitably mounted in the standard 19-inch rack.The chassis lets you install multiple media converters in an equipment rack together with the network devices for which they provide media conversion. This provides for space saving, and the cabling will look neat. The chassis comes with its own universal AC to DC power supply. For maximum power availability, an optional redundant power supply is available for installation in the chassis.
2U 19 Inch 14 Slots Rack Mount Chassis For Fiber Optic Media Converter Features:
2U 19 Inch 14 Slots Rack Mount Chassis For Fiber Optic Media Converter Technical Parameters:
| Parameter | Specifications |
| Input voltage | AC 100-240V 50/60Hz ,DC 36-72V |
| Output voltage | DC 12V |
| Power output | 80W maximum |
| Operating temperature | 0~50ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | 40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Dimensions | 427mm (W)×230mm (D)×91 mm (H) |

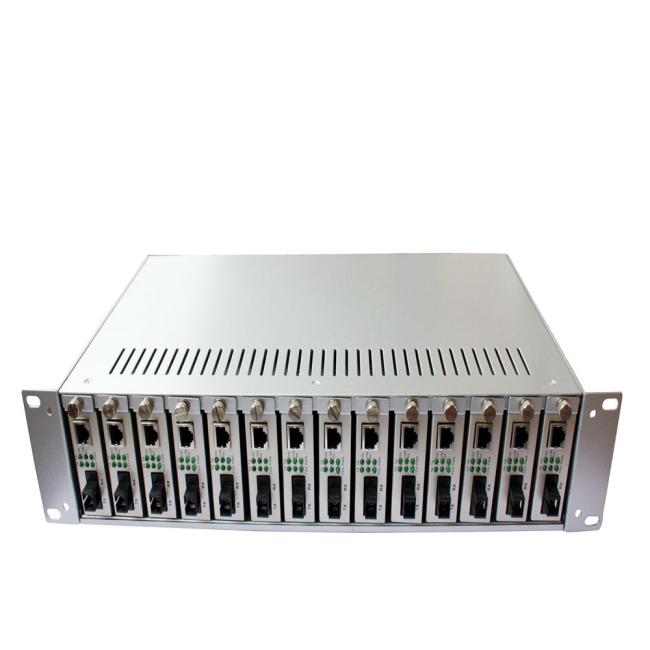

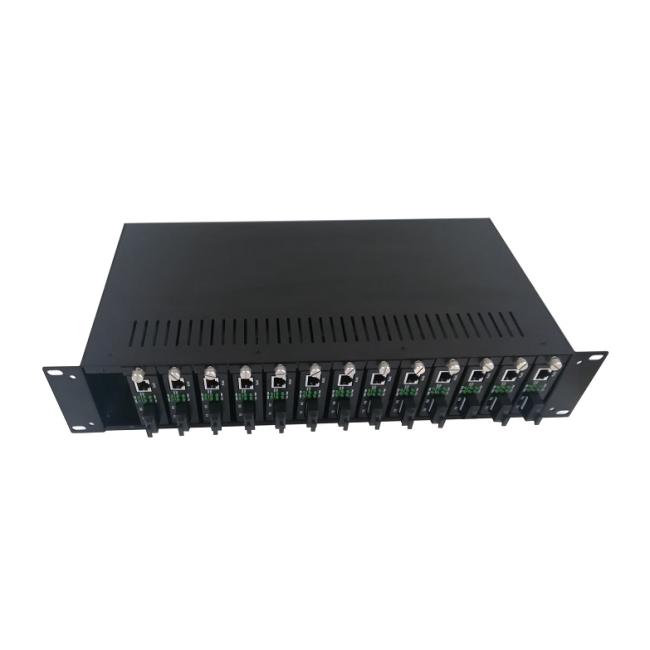

2U 19 Inch 14 Slots Rack Mount Chassis For Fiber Optic Media Converter Pictures:
