| Price | USD 10 ~ USD 20 |
| MOQ | 1 nos |
| Delivery Time | 3~5 working days |
| Brand | Takfly/OEM |
| Place of Origin | Shenzhen, China |
| Certification | CE, ROHS, FCC, REACH, ISO9001, ISO14001 |
| Model Number | MC-1000-SC-N |
| Packaging Details | Spone + Box + Carton |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 2000 nos/week |
| Place of Origin | Shenzhen, China | Transmission Distance | 550m to 120km |
| Fiber port Working Rate | 1000Mbps | RJ45 port Working Rate | 10/100/1000Mbps |
| Packaging Details | Spone + Box + Carton | Model Number | MC-1000-SC-N |
| Supply Ability | 2000 nos/week | Certification | CE, ROHS, FCC, REACH, ISO9001, ISO14001 |
| Wavelength | 850nm/1310nm/1550nm | Brand Name | Takfly/OEM |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Price | USD 10 ~ USD 20 |
| Delivery Time | 3~5 working days | Minimum Order Quantity | 1 nos |
| Copper Cable | Cat5, Cat5e, Cat6 | Fiber Connector | SC duplex |

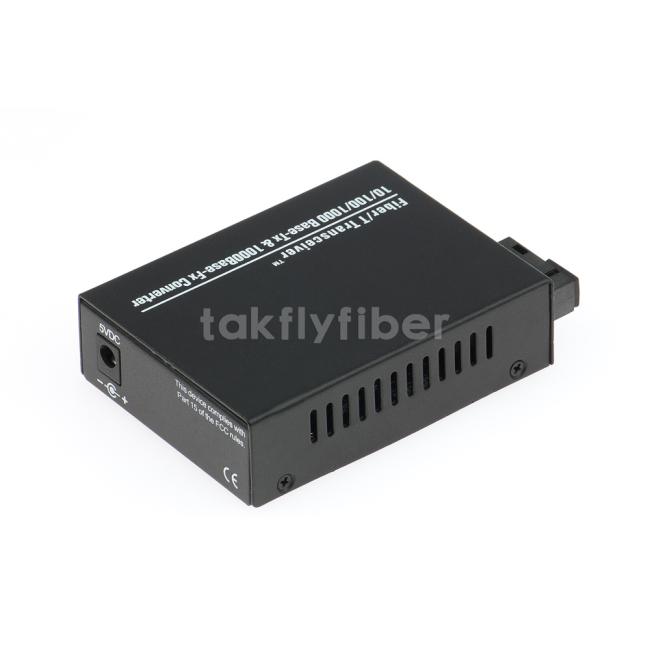

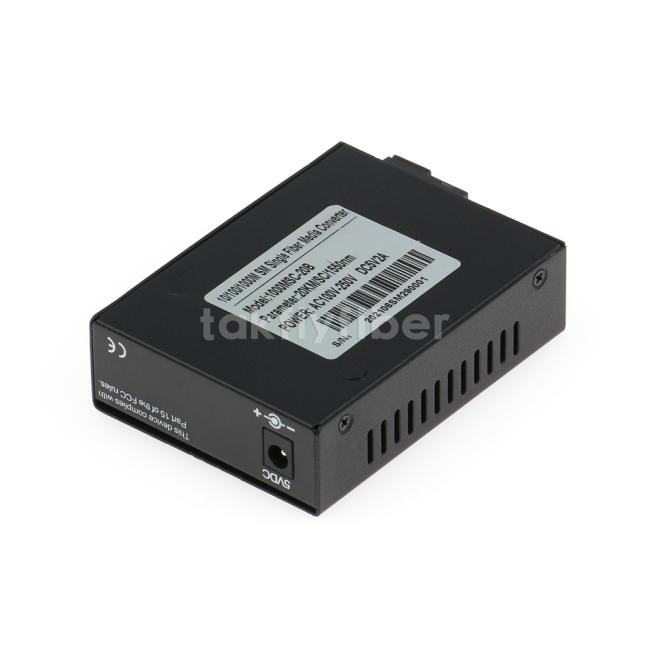

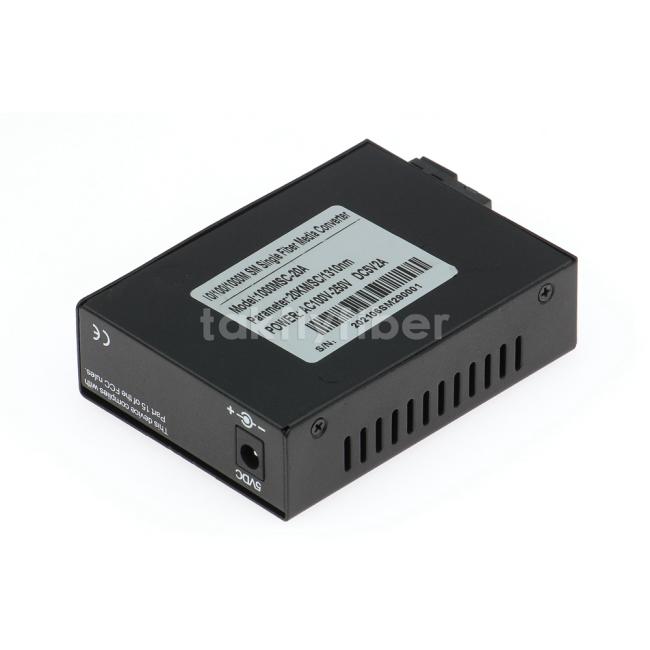

10/100/1000M Ethernet To Fiber Media Converter Gigabit with 1310/1550nm Single SC Fiber Slot and 1 RJ45 Port
1. Description
Media converters are flexible and cost-effective devices for implementing and optimizing fiber links in all types of networks. The most common type of media converter is a device that functions as a transceiver converting the electrical signal used in copper Unshielded Twisted Pair (UTP) network cabling into light waves used in fiber optic cabling.
The Gigabit media converter with external power supply are designed to transmit and receive 10/100/1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.
2. Feature
*
In
conformity
to
IEEE802.3
10base-T,
IEEE802.3u
100
base-TX/FX,
IEEE802.3z,
IEEE802.1a,
IEEE802.1PQ0S,
IEEE802.1d
Spanning
Tree.
*
Hot
Pluggable
&
Wall-Mountable.
*
Stable
performance
more
than
50thousand
hours
with
fault-free.
*
Unique
IC
solution
applied.
*
Supports
10/100Mbps
full/half
duplex,
easy
upgrades.
*
Auto
MDI/MDI-X.
*
Auto
Negotiation.
*
Support
flow
control.
*
Concentrated
into
BT-EF16-D220(16slot
for
media
converter
cards)
or
BT-EF14-D220(14slot
for
media
converter
standalone
type)
2U
rack-mount
chassis.
*
Stable
performance
more
than
50
thousands
hours
with
fault-free.
*
In
conformity
with
safety
code
of
FCC,
CE
and
RoHS.
3. Technical Spec
| Access Method | 10/100/1000Mbps |
| Standard | IEEE802.3,IEEE802.3u,IEEE802.3ab ,IEEE802.3z ,IEEE802.1q,IEEE802.1p,IEEE802.1d |
| Wavelength | 850nm/1310nm/1550nm |
| Distance |
Dual
Fiber
MM
:550m Dual Fiber SM : 10/20/30/50/80Km Single Fiber SM : 20/40/60/80Km CAT5:100m |
| Conversion Method | Media Conversion |
| Time Delay | <10μs |
| BER | <1/1000000000 |

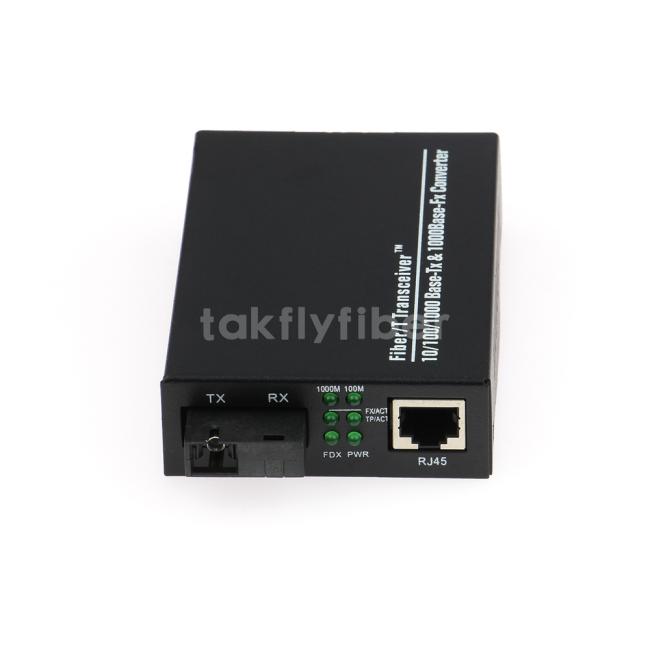

| LED Indicator Lamps | 1000M,100M, FX LINK/ACT, TP LINK/ACT, FDX, POWER |

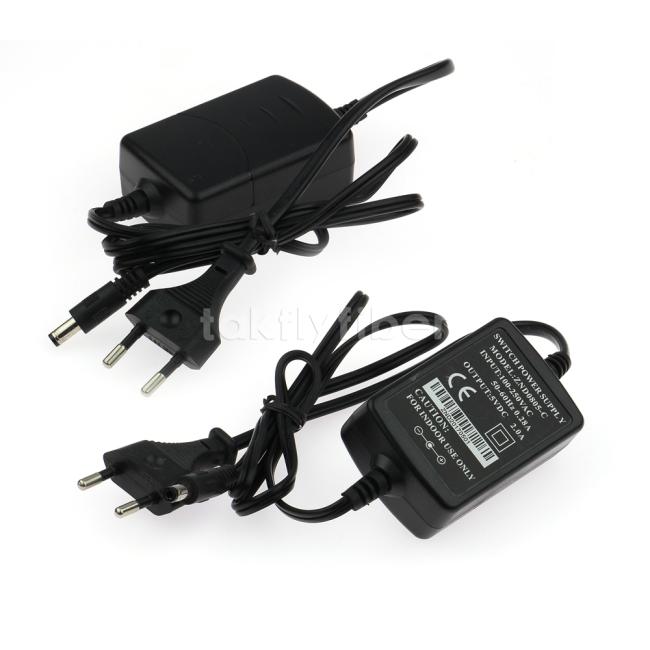

| Power Supply | DC5V 2A (external power), AC220 0.5A /DC-48( internal power ) |
| Power Dissipation | 3W |
| Operating Temperature | 0 ~ 50 ℃ |
| Working rate | 10/100/1000Mbps |
| Storage Humidity | 5% ~ 90% |
| Storage Temperature | -40 ~ 70 ℃ |
| Working humidity | 5% ~ 90% non-condescending |
4. Application
*
Extend
your
Ethernet
connection
up
to
0~25km
away
using
fiber
optics
*
Creates
an
economical
Ethernet-fiber/copper-fiber
link
for
connecting
remote
sub-networks
to
larger
fiber
optic
networks/backbones
*
Converts
Ethernet
to
fiber,
fiber
to
copper/Ethernet,
ensuring
optimum
network
scalability
for
connecting
two
or
more
Ethernet
network
nodes
(e.g.
connecting
two
buildings
on
the
same
campus)
*
Designed
to
provide
high-speed
bandwidth
for
demanding
large
scale
work
groups
that
require
expansion
of
Gigabit
Ethernet
Network
