| Price | US$0.01~US$58.99 |
| MOQ | 1 |
| Delivery Time | 3-9 working days |
| Brand | DF/OEM/Neutral |
| Place of Origin | Shenzhen, China |
| Certification | CE/ROHS/FCC/REACH/ISO9001/ISO14001 |
| Model Number | TK-MC-1.25G-SC-BD-40KM |
| Packaging Details | Export Standard Packing |
| Payment Terms | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability | 5000PCS/Week |
| Packaging Details | Export Standard Packing | Standard | IEEE802.3,IEEE802.3u,IEEE802.3ab ,IEEE802.3z ,IEEE802.1q,IEEE802.1p,IE EE802.1d |
| Supply Ability | 5000PCS/Week | Power Supply | DC5V 1A |
| Fiber Port | SC/FC/ST Single Fiber Port | Minimum Order Quantity | 1 |
| Working Temperature | -40~ 70 ℃ | Distance | SM: 10KM~120KM |
| Working Rate | 10/100/1000M, 1.25G | Storage Humidity | 5%~90% |
| Place of Origin | Shenzhen, China | Warranty | 2 Years |
| Transmission Distance | 40KM | Product Name | 10/100/1000M Fiber Optic Media Converter WDM SC Bidi 40KM |
| Color | Black, Golden | Mode | Single Mode |
| Material | Metal | Model Number | TK-MC-1.25G-SC-BD-40KM |
| Certification | CE/ROHS/FCC/REACH/ISO9001/ISO14001 | Wavelength | 1310nm/1490nm/1550nm |
| Brand Name | DF/OEM/Neutral | Payment Terms | Western Union, T/T, MoneyGram/Paypal |
| Price | US$0.01~US$58.99 | Delivery Time | 3-9 working days |
| OEM | Yes, Acceptable | Size: | 94mmx70mmx26mm |
10/100/1000M Fiber Optic Media Converter SM 1310nm 1550nm WDM SC Bidi 40KM
Fiber Optic Media Converter Despription:
Takfly provides 2 years warranty for our Fiber Optic Media Converter,the quality is guaranteed.
Additionally, Takfly's 10/100/1000M SM 1310nm/1550nm WDM SC Bidi Fiber Optic Media Converter could transmit distrance from 10KM to 120KM.
Takfly's Fiber Optic Media Converter is plug and play, high performance, Low power consumption.
Fiber Optic Media Converter Techinical Parameter:
| Technical Parameter: | |
| Access Method: | 10/100/1000Mbps |
| Standard: | IEEE802.3,IEEE802.3u,IEEE802.3ab ,IEEE802.3z ,IEEE802.1q,IEEE802.1p,IEEE802.1d |
| Wavelength: | 850nm/1310nm/1550nm |
| Distance: |
Dual
Fiber
LC
type
MM:
550m, Dual Fiber SM: 10/20/30 /50/80Km, Single Fiber SM: 20/40/60Km, CAT5: 100m |
| Conversion Method: | Media Conversion |
| Time Delay: | <10μs |
| BER: | <1/1000000000 |
| LED Indicator Lamps: | 1000M, 100M, FX LINK/ACT, TP LINK/ACT,FDX,POWER |
| Power Supply: | DC5V 1A (external power), AC220 0.5A /DC-48( internal power ) |
| Power Dissipation: | 3W |
| Operating Temperature: | 0 ~ 50 ℃ |
| Humidity: | 10/100/1000Mbps |
| Storage Temperature: | -40~ 70 ℃ |
| Storage Humidity: | 5%~90% |
| Dimension: | External:94mmx70mmx26mm; Internal: 140mmx110mmx30mm |
Fiber Optic Media Converter Features:
1) Conversion between auto-adaptation 10Base-T, 100Base-TX or 1000Base-T and 1000Base-SX/LX , full duplex 1000M working pattern.
2) With distinct HIC solution, low-temperature-rise chip, no need of cooling system, realization of flow control,decrease of broadcast storm.
3) With famous brand optical-electronic-integration module providing excellent optical and electrical properties toensure reliable data transmission and long working life.
4) Supporting broadcast filtering, address auto-learning and auto-updating, and store-and-forward operating mechanism.
5) Supporting full-duplex flow control or half-duplex back pressure working pattern, along with Auto-negotiation.
6) Supporting 9kbyte super data packet transmission By store and forwarder mode.
7) Providing indicator lamps for link-loss, electrical and optical link diagnosing, dynamic data transmission andfull/half duplex, data rate.
8) With more than 50,000 hours MTBF, complying with telecom operating standard.
9) Supporting choosing optical ports from dual fiber(MM),dual fiber(SM),single fiber(SM).

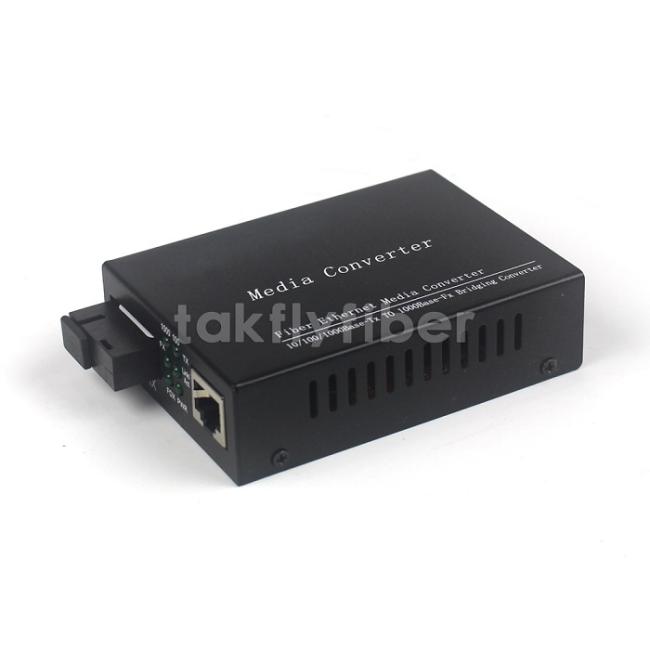

Fiber Optic Media Converter Pictures:
