| Price | negotiation |
| MOQ | 1 pcs |
| Delivery Time | 5-30workdays |
| Brand | MEDECO |
| Place of Origin | China |
| Certification | CE & ISO Certifications |
| Model Number | ME-50PE Mechinical surgical pendant |
| Packaging Details | 172x77x90 cm 254/195 kg |
| Payment Terms | T/T,L/C Westunion |
| Supply Ability | 5000-10000units per year |
| N/W: | one arm 110KGS | Place of Origin | China |
| nature | Ceiling Type | Packaging Details | 172x77x90 cm 254/195 kg |
| products feture | simple and compact structure | Nature 1 | Damping Friction Brake, to make sure without drifting and easy to stop, insure safe |
| Nature 2 | Medical gas outlet optional German / British /America/Japanese/ French /Chinese standards | Feture | rotation range up to ≤350 degree |
| G/W: | one arm 190KGS | Model Number | ME-50PE Mechinical surgical pendant |
| Supply Ability | 5000-10000units per year | SIZE: | one arm 0.52 CBM |
| Certification | CE & ISO Certifications | Brand Name | MEDECO |
| Payment Terms | T/T,L/C Westunion | Price | negotiation |
| Delivery Time | 5-30workdays | Minimum Order Quantity | 1 pcs |
| Rotary Radius | ≥650mm | Model | ME-50PE Mechinical surgical pendant |
| Rotary arm length | 1000mm (standard configuration) |

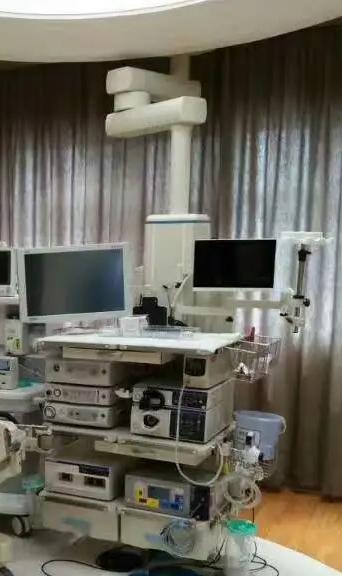

Features of Single/Double Arm Medical Pendant ME-50PE:
1. Each joint has a rotation range up to ≤350 degree.
2. Ceiling Type
3. Pendant column can be custom designed to accommodate a large variety of medical gas outlets and electrical device.
4. One arm, can rotation, rotation angle≤350 degree.
5. High-strength aluminium alloy, wear-well reduce your cost
6. Pendant Color Blue, Red and so on
7. Pendant Dimension can customize
8. Medical gas outlet optional German / British /America/Japanese/ French /Chinese standards.
9. Can horizontal rotation, cannot lift.
Standard Configuration of Single Arm Medical Pendant ME-50PE
| Model | ME-50PE Single Arm |
| Material | Used high-strength aluminum allo, Modular Design, Surface Electrostatic Powder Painting. |
| Prevent corrosive, easy to clean. | |
| Brake way | Damping Friction Brake, to make sure without drifting and easy to stop, insure safe |
| Rotary arm length | 1000mm (standard configuration) |
| Rotary Radius | ≥650mm |
| Head Service | Column, Standard Height 800mm |
| Loading | ≥180kg |
| Shelf loading | ≥60kg |
| Degrees rotation | ≤350 º |
| Gas outlets (DIN): | O2*1,VAC*1 Air*1,CO2*1,Universal socket:6 pcs(220V) Tray:2,drawer:1,monitor suspension system *1 (7kg-20kg,without monitor) |
| N/W: | 110KGS |
| G/W: | 190KGS |
| SIZE: | 0.52 CBM |
FAQ:
1. If we support OEM ?
Yes, we support OEM, could make the brand with customer logo and nameplate.
2.Waht kinds of certification do we have ?
We have Ce certification and ISO Certification.
3. Whats our delivery time ?
For samll pc such as 1 pcs , the exact delivery time is about 5 days after get the payment.
For large pcs,such as 100 pcs, about one month after receive the advance payment.
4.What's your general shipping ways ?
Our general shipping ways is by sea, if customer is urgent also could arrange by air.
5. If there is battery inside the medical pendant ?
There is no battery.
