| Price | negotiation |
| MOQ | 1 |
| Delivery Time | 5-30workdays |
| Brand | MEDECO |
| Place of Origin | China |
| Certification | CE ISO |
| Model Number | ME-50EF Ceiling Pendant Surgical Tower Crane |
| Packaging Details | carton and wooden case |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000-10000units per year |
| Place of Origin | China | Packaging Details | carton and wooden case |
| gas outlets: | :O2*2,VAC*1,Air*1 | Material | Used high-strength aluminum allo, Modular Design, Surface Electrostatic Powder Painting, |
| Model Number | ME-50EF Ceiling Pendant Surgical Tower Crane | Supply Ability | 5000-10000units per year |
| Degrees rotation | ≤350 º | SIZE: | 0.46 CBM |
| Certification | CE ISO | Brand Name | MEDECO |
| Payment Terms | L/C, T/T | Suitable | ICU and NICU so on |
| Shelf loading | ≥60kg | Price | negotiation |
| Delivery Time | 5-30workdays | Loading | ≥180kg |
| Minimum Order Quantity | 1 | universal power socket: | 6pcs（220V） |
| Rotary Radius | ≥650mm | Head Service | Column, Standard Height 800mm |
| Model | ME-50EF Ceiling Pendant Surgical Tower Crane | Rotary arm length | 1000mm (standard configuration) |
Medical Single Arm Surgical Ceiling Pendant Surgical Tower Crane With CE and ISO
Features of ME-50EF Single Arm Surgical Ceiling Pendant Surgical Tower Crane:
1. Sitable for ICU and NICU room.
2. Used high-strength aluminum allo, Modular Design, Surface Electrostatic Powder Painting,
Prevent corrosive, easy to clean.
3. One arm, can rotation, rotation angle≤350 degree.
4. Pendant Dimension can customize.
Technique Data of ME-50EF Single Arm Surgical Ceiling Pendant Surgical Tower Crane:
| Rotary arm length | 1000mm (standard configuration) |
| Rotary Radius | ≥650mm |
| Head Service | Column, Standard Height 800mm |
| Loading | ≥180kg |
| Shelf loading | ≥60kg |
| Degrees rotation | ≤350 º |
| Gas outlets (DIN): | O2*2,VAC*1,Air*1 |
| Universal power socket: | 6pcs(220V) |
| Single arm | Tray:2 pcs,Drawer:1 pcs |
| N/W: | 118KGS |
| G/W: | 188KGS |
| SIZE: | 0.46 CBM |
| Standard Configuration | ||||
| Model | ME-50EF (Single Arm) | Mark | ||

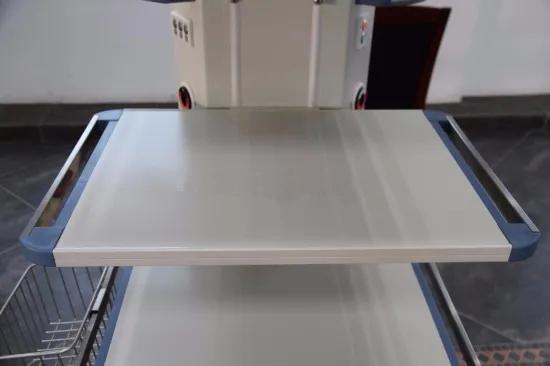

| Shelf | 2 pcs | |||

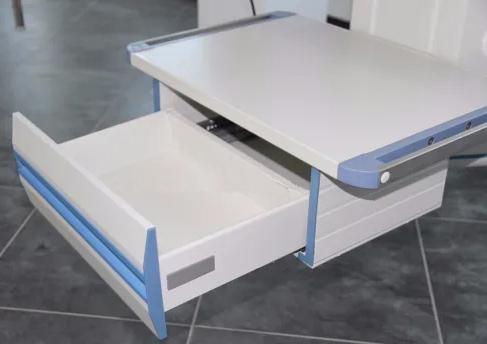

| Drawer | 1 pcs | |||
| I.V Pole | 1 pcs | |||
| Extension arm | 1 pcs | |||
| Gas outlets | Surgical Pendant | Anesthesia Pendant | Endoscopy Pendant | |
| O2*1,Vac*1, Air*1 |
O2*1, Vac*1, Air*1 N2O*1, AGSS*1 |
O2*1, Vac*1, Air*1 CO2*1 |
DIN Standard | |
| Electrical socket | 6pcs (220V 10 A) | Universal Type | ||
| Other Configuration optional: | |
| RJ 45 | √ |
| Video Socket | √ |
| Grounding socket | √ |
| Monitor bracket | √ |
| Electrical socket and gas outlets can choose different standards,quantity is optional according to hospital need | |
FAQ:
1. If we support OEM ?
Yes, we support OEM, could make the brand with customer logo and nameplate.
2.Waht kinds of certification do we have ?
We have Ce certification and ISO Certification.
3. Whats our delivery time ?
For samll pc such as 1 pcs , the exact delivery time is about 5 days after get the payment.
For large pcs,such as 100 pcs, about one month after receive the advance payment.
4.What's your general shipping ways ?
Our general shipping ways is by sea, if customer is urgent also could arrange by air.
5. If there is battery inside the medical pendant ?
There is no battery.
