| Price | Negotiated The Price |
| MOQ | 100 |
| Delivery Time | 7-10 working days |
| Brand | SECORE |
| Place of Origin | Shenzhen |
| Certification | RoHS CE |
| Model Number | BCL-1652 |
| Packaging Details | 20pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| coreless motor size | 16*52mm D*L | product name | micro tattoo coreless bldc motor, hollow cup bldc motor |
| Place of Origin | Shenzhen | Packaging Details | 20pcs per carton or as request |
| Free load Speed | 24630rpm | Model Number | BCL-1652 |
| Supply Ability | 100000pcs per month | Certification | RoHS CE |
| Rated Voltage | 24V | Brand Name | SECORE |
| Payment Terms | T/T, D/A | Rated torque | 26mN.m |
| Rated current | 3.6mA | application | beauty apparatus, Beauty Tools, tattoo machine |
| Price | Negotiated The Price | Delivery Time | 7-10 working days |
| Minimum Order Quantity | 100 | Rated Power | 67W |
67W 16mm Long Lifespan Slotless Brushless Motor 12v 24v For Tattoo Machine Factory

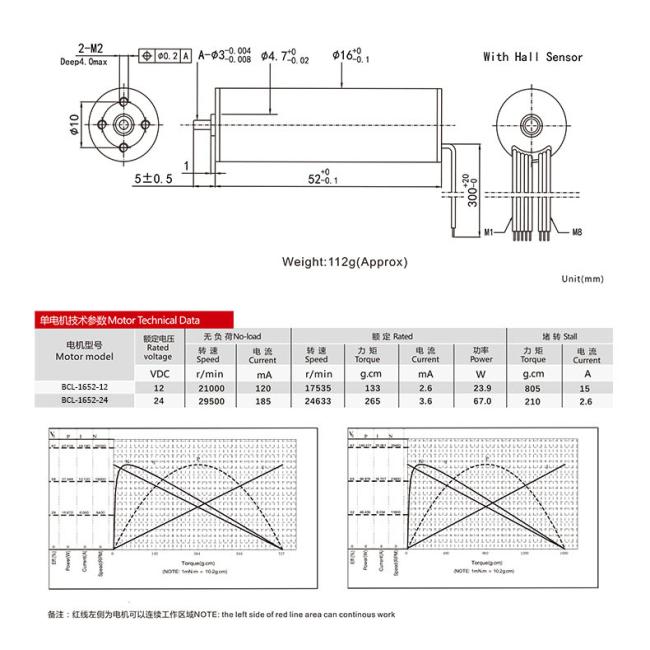

Brushless slotless DC Motor Technical data:
| Model # | RATED Voltage | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
| SPEED | CURRENT | SPEED | TORQUE | CURRENT | Out. Power | TORQUE | CURRENT | ||
| VDC | ±10% r/min | mA | ±10% r/min | g.cm | mA | W | g.cm | A | |
| BCL-1652-12 | 12 | 21050 | 121 | 17530 | 132 | 2.61 | 24 | 806 | 15.1 |
| BCL-1652-24 | 24 | 29505 | 186 | 24630 | 260 | 3.61 | 68 | 211 | 2.61 |
