| Price | Negotiated The Price |
| MOQ | 100 |
| Delivery Time | 7-10 working days |
| Brand | SECORE |
| Place of Origin | Shenzhen |
| Certification | CE ROHS |
| Model Number | SC-CL50100 |
| Packaging Details | 20pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| product name | coreless EC motor, hollow cup dc motor | Usage | Power tool, robot, high precision machine |
| Place of Origin | Shenzhen | Packaging Details | 20pcs per carton or as request |
| Model Number | SC-CL50100 | Supply Ability | 100000pcs per month |
| Certification | CE ROHS | Rated Voltage | 24V |
| Brand Name | SECORE | Payment Terms | T/T, D/A |

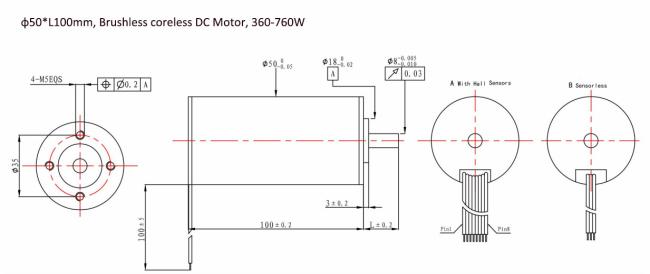

| Rated torque | 0.71N.m | Diameter * Length | 50mm * 100mm |
| Rated current | 26.69A | Price | Negotiated The Price |
| Delivery Time | 7-10 working days | Rated Speed | 7190rpm |
| Minimum Order Quantity | 100 | Rated Power | 520W |
Coreless Motor Replacement For Maxon EC50, 520W 24V 0.7N.M hollow cup motor with customized color
Product range :
Product type: Coreless PMDC Motor
| Motor model no. | SC-CL50100-1 | SC-CL50100-2 | SC-CL50100-3 | |
| At Nomimal | ||||
| Nominal voltage | V/DC | 24 | 36 | 48 |
| Nominal speed | RPM | 5986 | 5526 | 5357 |
| Nominal current | A | 15.45 | 13.06 | 9.5 |
| Nominal Torque | mNm | 501.6 | 668.8 | 659.5 |
| Free Load | ||||
| No load speed | RPM | 6800 | 6500 | 6300 |
| No load current | mA | 500 | 350 | 290 |
| At Max Efficiency | ||||
| Max efficiency | % | 87.8 | 87.6 | 86.7 |
| Speed | RPM | 6390 | 9079 | 5890 |
| Current | A | 7.98 | 5.86 | 4.24 |
| Torque | mNm | 250.8 | 289.8 | 285.7 |
| At Max output power | ||||
| Max output power | W | 744 | 758.7 | 725 |
| Speed | RPM | 3400 | 3250 | 3150 |
| Current | A | 62.8 | 42.7 | 30.6 |
| Torque | mNm | 2089 | 2229 | 2198 |
| At stall | ||||
| current | A | 125 | 85 | 61 |
| torque | mNm | 4179.2 | 4458.56 | 4396.04 |
| Motor Constants | ||||
| Terminal resistance | Ω | 0.18 | 0.42 | 0.79 |
| Terminal inductance | mH | 0.155 | 0.348 | 0.638 |
| Torque constant | mNm/A | 33.57 | 52.67 | 72.41 |
| Speed constant | rpm/V | 283.3 | 180.6 | 131.3 |
| Speed/torque constant | rpm/mNm | 1.6 | 1.5 | 1.4 |
| Mechanical time constant | ms | 4.1 | 3.67 | 3.61 |
| Rotor inertia | g.cm2 | 240.5 | 240.5 | 240.5 |
| Number of pole pairs | 1 | |||
| Number of phases | 3 | |||
| weight of motor | g | 837 | ||
| Typical noise level | dB | ≤50 | ||
The coreless motor is a high-precision micro motor. Don't hit it during installation and transportation, dont' drop from height, or hit it vigorously. It is using rare earth permanent magnet rubidium iron boron magnets, the magnetic field is stable and long-lasting. Please use the temperature range specified by the magnets. If there are special temperature requirements, please make it clear at the beginning of the negotiation.
