| Price | Negotiated The Price |
| MOQ | 100 |
| Delivery Time | 7-10 working days |
| Brand | SECORE |
| Place of Origin | Shenzhen |
| Certification | RoHS |
| Model Number | BCL-1652 |
| Packaging Details | 20pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| product name | 16mm 24W coreless bldc motor, tattoo machine slotless motor | Usage | beauty apparatusBeauty Tools, power tool, 5g antenna |
| Place of Origin | Shenzhen | Packaging Details | 20pcs per carton or as request |

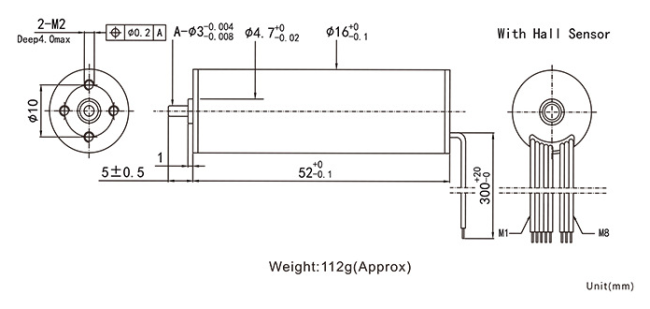

| motor dimensions | 16*52mm dia * length | Free load Speed | 17530rpm |
| Model Number | BCL-1652 | Supply Ability | 100000pcs per month |
| Certification | RoHS | Rated Voltage | 12V |
| Brand Name | SECORE | Payment Terms | T/T, D/A |
| Rated torque | 133g.cm, 13mN.m | Rated current | 2.6mA |
| Price | Negotiated The Price | Delivery Time | 7-10 working days |
| Minimum Order Quantity | 100 | Rated Power | 24W |

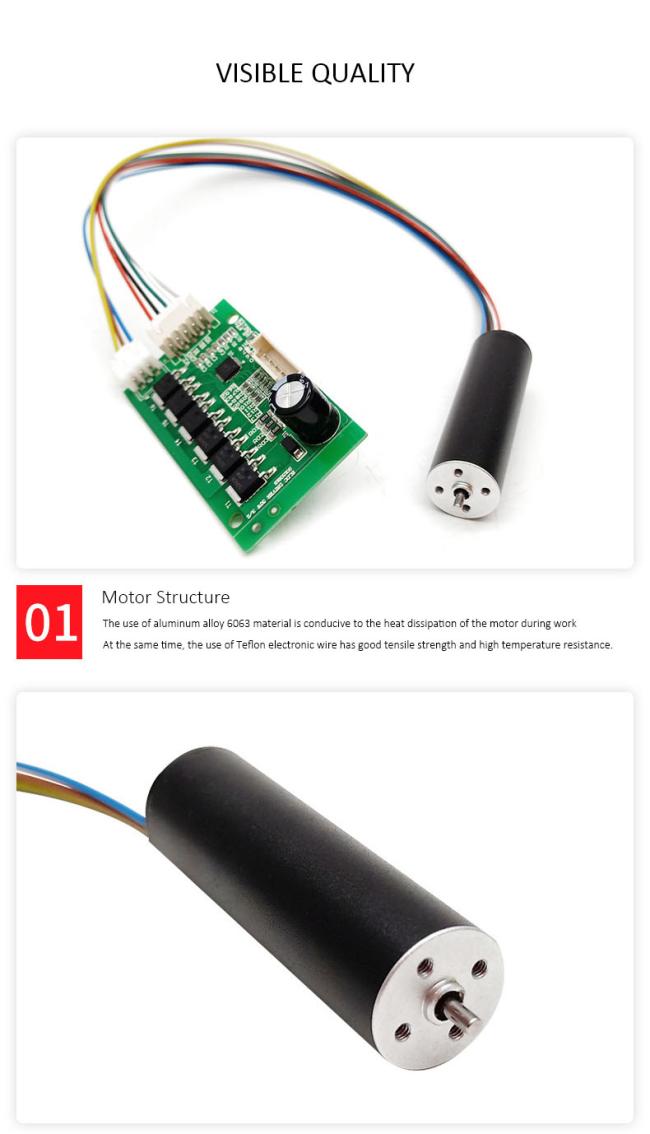

16mm Ironless Bldc Motor Hollow Cup Motor Applied In Health Care Electronics
Brushless slotless DC Motor parameter:
| Model # | RATED Voltage | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
| SPEED | CURRENT | SPEED | TORQUE | CURRENT | Out. Power | TORQUE | CURRENT | ||
| VDC | ±10% r/min | mA | ±10% r/min | g.cm | mA | W | g.cm | A | |
| BCL-1652-12 | 12 | 21000 | 120 | 17535 | 133 | 2.6 | 23.9 | 805 | 15 |
| BCL-1652-24 | 24 | 29500 | 185 | 24633 | 264 | 3.6 | 67 | 210 | 2.6 |
