| Price | Negotiated The Price |
| MOQ | 200 |
| Delivery Time | 6-10 working days |
| Brand | SECORE |
| Place of Origin | Dongguan |
| Certification | CE ISO9001 CCC VDE |
| Model Number | SC-CL2230 |
| Packaging Details | 50pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 50000pcs per month |
| product name | 2230 brush motor, brush coreless motor without iron | Place of Origin | Dongguan |
| Packaging Details | 50pcs per carton or as request | Model Number | SC-CL2230 |
| Supply Ability | 50000pcs per month | Certification | CE ISO9001 CCC VDE |
| Rated Voltage | 18V | Brand Name | SECORE |
| Payment Terms | T/T, D/A | Rated torque | 5.8mN.m or as request |
| Rated current | 0.43A or as request | Mounting size | 22mm*30mm ( Diameter * length ) |
| application | Pump, tattoo gun, tattoo machine, tattoo device, tattoo pen | Price | Negotiated The Price |
| Delivery Time | 6-10 working days | Rated Speed | 9230rpm |
| Minimum Order Quantity | 200 | Rated Power | 9.6W |

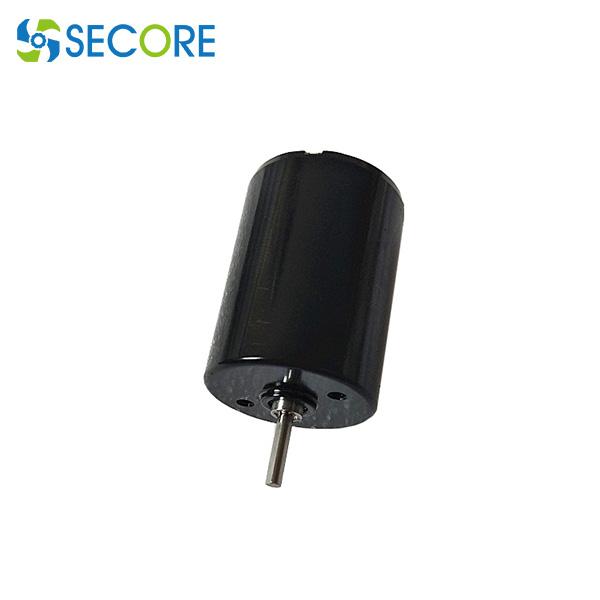

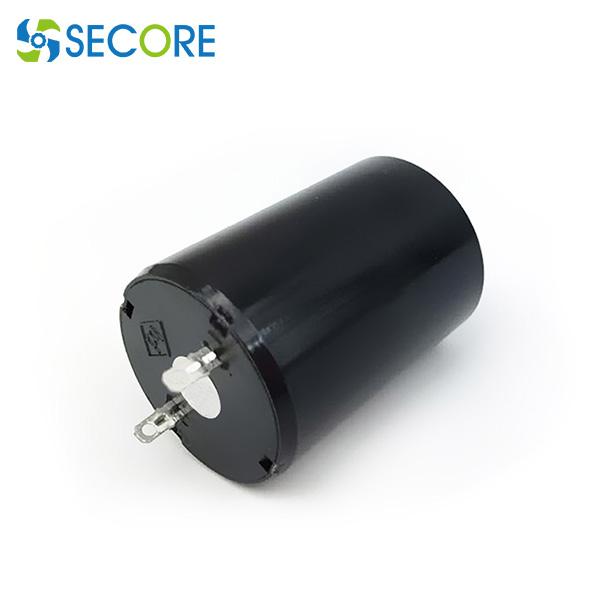

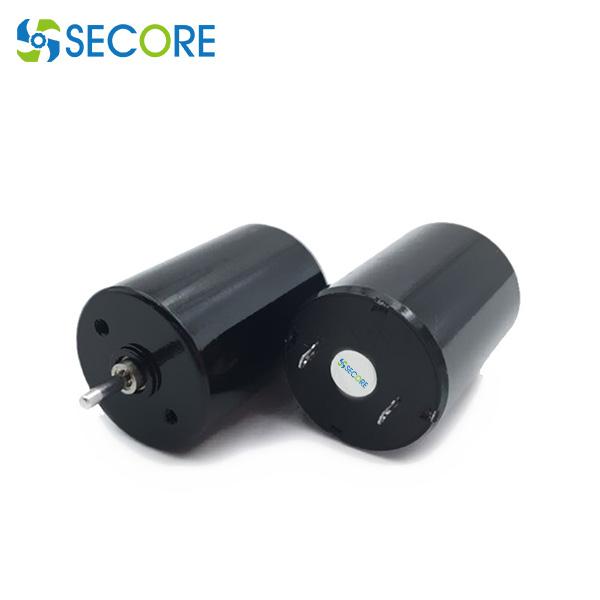

22mm Smooth Running Mini Coreless Dc Motor For Precision Machine Tattoo Rotary Gun
Technical
parameter:
| Motor data | Motor model no. | ||
| Values at rated voltage | CL2230 | ||
| At Nomimal | Nominal voltage | V/DC | 18 |
| Nominal speed | RPM | 9240 | |
| Nominal current | A | 0.44 | |
| Nominal Torque | mNm | 5.81 | |
| Free load | No load speed | RPM | 10900 |
| No load current | mA | 47 | |
| At Max Efficiency | Max efficiency | % | 75.5 |
| Speed | RPM | 9560 | |
| Current | A | 0.33 | |
| Torque | mNm | 4.8 | |
| At Max output power | Max output power | W | 11.6 |
| Speed | RPM | 5420 | |
| Current | A | 1.34 | |
| Torque | mNm | 20.01 | |
| At Stall | current | A | 2.8 |
| torque | mNm | 39.7 | |
| Motor constants | Motor Constants | Ω | 6.94 |
| Terminal resistance | mH | 0.88 | |
| Torque constant | mNm/A | 15.76 | |
| Speed constant | rpm/V | 600.5 | |
| Speed/torque constant | rpm/mNm | 272.5 | |
| Mechanical time constant | ms | 7.93 | |
| Rotor inertia | g.cm² | 2.9 | |
