| Price | Negotiated The Price |
| MOQ | 500 |
| Delivery Time | 10-15 working days |
| Brand | SECORE |
| Place of Origin | China |
| Certification | CE ROHS |
| Model Number | BLS-3825O |
| Packaging Details | 500pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| Speed | 3200-6500rpm or customized | Construction | permanent magnet |
| product name | high torque brushless motor, brushless electric motor, motor brushless 12v | Place of Origin | China |
| Typical application | foot massager, hair dryer, electric shaver, medical device etc | Packaging Details | 500pcs per carton or as request |

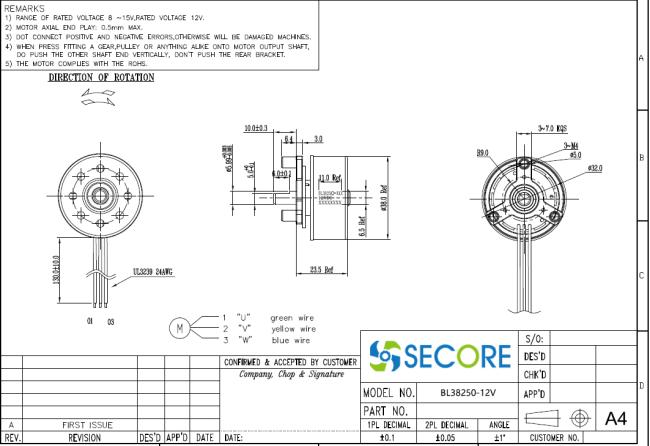

| Dimension | ∮38*25（mm） | Model Number | BLS-3825O |
| Supply Ability | 100000pcs per month | Certification | CE ROHS |
| Brand Name | SECORE | Payment Terms | T/T, D/A |
| Price | Negotiated The Price | Delivery Time | 10-15 working days |
| Rated voltage | 12-24V | Minimum Order Quantity | 500 |
| Rated Torque | 60g.cm or as request | Power | 15-25W |
6500rpm Brushless Motor With Built-In Controller 12V BLDC For Home Appliance
Main features:
Size: φ38*25mm
Built-in driver
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC / EMI / Noise
Long life: 20000hrs Min.
| Model # | Rated voltage | No load | Power at no load | max power | stall | Protection Current | Eccentricity design | |
| (V) | (rpm) | (W) | (W) | (kg.cm) | (A) | (mm) | ||
| BL3825O-V1 | 7.4 | 3600~3900 | 1~2 | 15 | 2.0 | 5~6 | 3.0 | |
| BL3825O-V2 | 12 | 3600~3900 | 2~3 | 18 | 3.0 | 5~6 | 3.0 | |
| BL3825O-V3 | 16.8 | 3600~3900 | 3~4 | 20 | 3.3 | 5~6 | 3~3.5 | |
| BL3825O-V4 | 24 | 3600~3900 | 4~5 | 25 | 3.8 | 5~6 | 3~3.5 | |
Customization Range:
1.Additional voltage types
2.Configurable shaft length and second shaft end
3.Modified shaft dimensions and pinion configurations such as flats, gears, pulleys and eccenters
4.Extended temperature range
5.Vacuum compatibility (e.g., 9-5 Pa)
6.Customization for high speed and or high load applications
7.Customization for motors with increased electrical or mechanical tolerance requirements
If there is no suitable specifications, it can be customized according to actual needs.
About us
Shenzhen Secore Technology Co.,Ltd is professionally engaged in various of motors such as brushless dc motors, high voltage brushed dc motors, gear motors, integrates R&D, mass production, sales and service with 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average sales value 40 million dollars.
LAB Testing devices:
Motor performance testing
Parts of Typical Application:
| 1. Bank System: ATM, currency counter |
| 2. Vending Machine: Beverage Vending Machine, Coffee Vending Machine |
| 3. Security: Door Lock, Safebox, Sucurity Camera |
| 4. Sanitary Applications: Towel dispenser, soap dispenser, air freshener dispenser, hand dryer |
| 5. Medical Equipments: Automative Blood Press Monitor, Dosing Equipment |
| 6. AI: Robot and Robot Arm |
| 7. Home Appliance: Kitchen Appliance, TV Lift, Auto Cleaner, Auto Toilet Lid |
| 8. Office Products: Printer, Paper Shredder, Label Machine |
