| Price | Negotiated The Price |
| MOQ | 500 |
| Delivery Time | 10-12 working days |
| Brand | SECORE |
| Place of Origin | Guangdong, China |
| Certification | CE ROHS |
| Model Number | BLS3717O |
| Packaging Details | 500pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| Speed | 10000rpm or customized | continuous current | 1.6A |
| Place of Origin | Guangdong, China | Keyword | High speed BLDC fan motor, fan motor solution, cleaner BLDC motor |
| Typical application | vacuum cleaner, electric fan, air cleaner, air purifier, medical apparatus | Packaging Details | 500pcs per carton or as request |
| Model Number | BLS3717O | Supply Ability | 100000pcs per month |
| Certification | CE ROHS | commutation | brushless BLDC |
| Brand Name | SECORE | Payment Terms | T/T, D/A |
| feature | explosion-proof, drip-proof | Price | Negotiated The Price |
| Delivery Time | 10-12 working days | Rated voltage | 12V or as request |
| Minimum Order Quantity | 500 | Rated Torque | 150g.cm or as request |

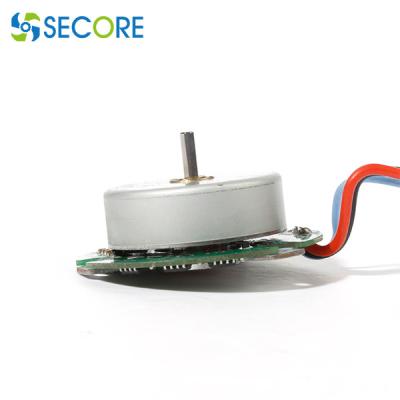

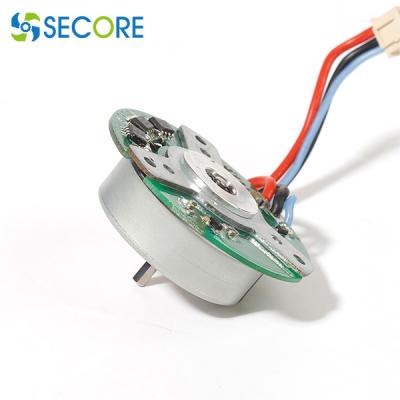

10000rpm 12V Mini Brushless Dc Cleaner Motor BLDC With Controller Driver
Parameters:
Diameter* height: φ37.0mm* 17.0mm
Equip with Built-in driver
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC / Low EMI / Low noise
Long life: 20000hrs Min.
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||
|
OPERATING RANGE |
RATED | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |
| r/min | A | r/min | A | g.cm | W | g.cm | A | |||
| BLS3717-V1 | 8V~16V | 12V | 11876 | 0.25 | 10332 | 1.6 | 153.9 | 16.31 | 1184.8 | 10.64 |
| BLS3717-V2 | 8V~26V | 18V | 18020 | 0.29 | 15497 | 1.79 | 168.4 | 26.76 | 1202.7 | 10.98 |
| BLS3717-V3 | 8V~26V | 24V | 23274 | 0.34 | 20481 | 2.61 | 253.4 | 53.24 | 2111.9 | 19.28 |
TO BE TAILORED
If there is no suitable specifications, it can be customized according to actual needs.
FAQ
Q1. What kind of motors you can provide?
A: Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 500kg.cm
Q2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirement as per torque, lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you may, please share your expected performance and specific requirement for us better to provide a solution and closest offer.
Q3.
What's
the
lead
time
for
regular
order?
A:
For
mass
orders,
the
standard
lead
time
is
25-40
days
and
LT
can
be
shorter
or
longer
based
on
different
model,
period
and
quantity.
Q4.
Is
it
possible
for
you
to
develop
new
motors
if
we
can
provide
tooling
cost?
A:
Yes.
Please
kindly
share
the
detailed
requirements
like
performance,
size,
annual
quantity,
target
price
etc.
Then
we'll
make
our
evaluation
to
see
if
we
can
arrange
or
not.
Q5.
Can
I
get
some
samples?
A:
Yes,
we
are
glad
to
offer
samples
for
testing
before
the
initial
order.
