| Price | USD500-800/MT |
| MOQ | 50mt |
| Delivery Time | 45days |
| Brand | RAYMOND |
| Place of Origin | China |
| Certification | ISO14000 |
| Packaging Details | standard export packing |
| Payment Terms | L/C, T/T, Western Union, MoneyGram, D/A, D/P |
| Supply Ability | 10000MT/ month |
| Zinc Coating | 120g/㎡ | Place of Origin | China |
| Packaging Details | standard export packing | Color | RAL 5019 |
| Back Surface | 7 Micron + 5 Micron Primer. | Supply Ability | 10000MT/ month |
| Certification | ISO14000 | Brand Name | RAYMOND |
| Payment Terms | L/C, T/T, Western Union, MoneyGram, D/A, D/P | Thickness | 0.70mm |
| Commodity | Pre-painted steel coil | Price | USD500-800/MT |
| Delivery Time | 45days | Minimum Order Quantity | 50mt |
| Top Surface | 15 Micron Polyester + 5 Micron Primer | Width | 1000mm |
| Application | Roofing,Structure,Flange Plate,Ship Plate,Container Plate |
SGCH RAL 5015 Z90 Color Painted Steel Coil Plate Sheet
PPGI
(PPGL)
Features:
MTC of pre painted galvanized steel coil
| COMMODITY: | PRE-PAINTED ZINC STEEL SHEET | Contract NO. | HYEXP2010-07-10A | Date: | SEPTEMBER-17-2010 | ||||||||||||||||
| Steel Grade: | ACC JIS G3312, SOFT MATT | Condition of Supply | PRE-PAINTED ZINC STEEL SHEET |
Certificate NO. |
100710A | ||||||||||||||||
| No. | Heat No. | Size(mm) | Zinc Coating: | Color side A | Coat property | Steel property | |||||||||||||||
| Pain thick (μm) | T-Bend (T) | Impact (J) | Gloss (GU) | Pencil hard | YS. Re Mpa | UTS. Rm Mpa | EL. A % | ||||||||||||||
| 1 | 0710225 | 0.30X800 MM RAL5012 | Z-60 | RAL 5012/25 microns | 25 | 3 | 9 | 50 | 3H | 360 | 380 | 35 | |||||||||
| 2 | 0710296 | 0.30X800 MM RAL8004 | Z-60 | RAL 8004/25 microns | 25 | 3 | 9 | 55 | 3H | 365 | 373 | 37 | |||||||||
| 3 | 0710246 | 0.25X800 MM RAL5012 | Z-60 | RAL 5012/25 microns | 25 | 3 | 9 | 50 | 3H | 358 | 375 | 36 | |||||||||
| 4 | 0710288 | 0.25X800 MM RAL8004 | Z-60 | RAL 8004/25 microns | 25 | 3 | 9 | 55 | 3H | 355 | 368 | 36 | |||||||||

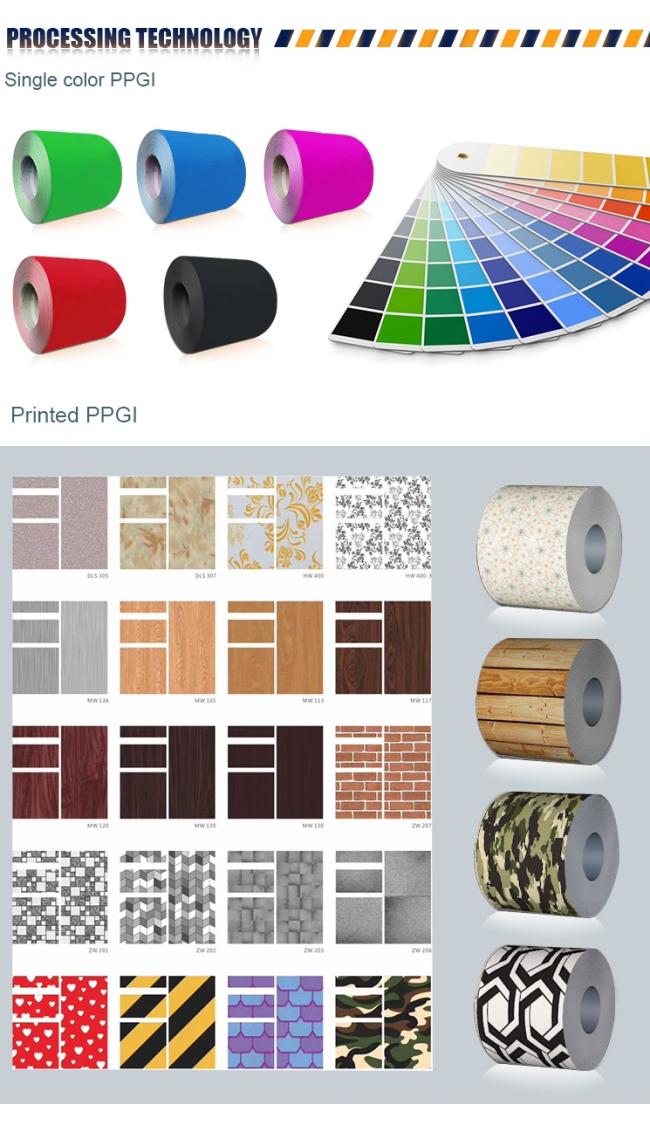

Product Picture
