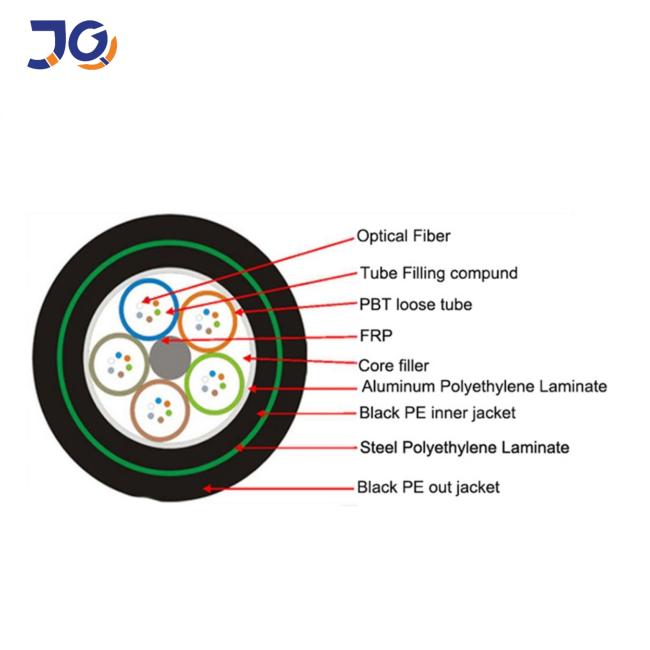

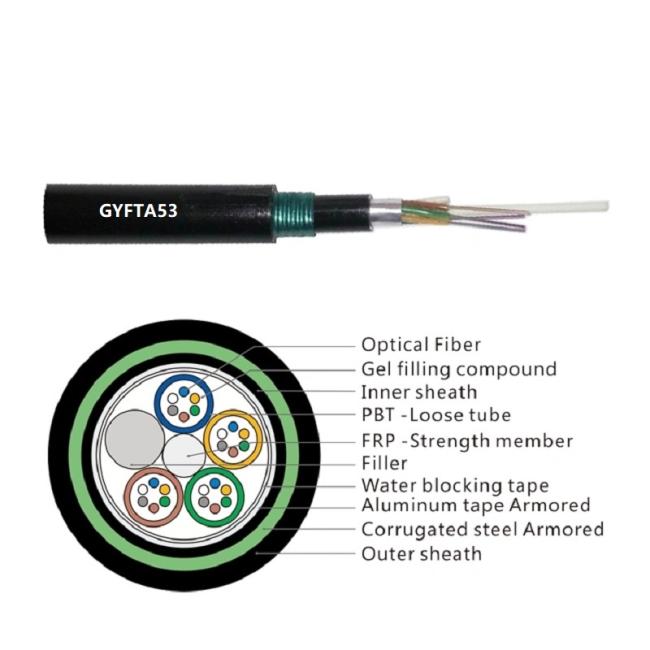

2.The tubes are filled with a water-resistant filling compound.
3.A Fiber Reinforced Plastic (FRP) locates in the center of core as non-metallic strength member.
4.Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
5.An Aluminum Ployethylene Laminate (APL) is applied around the cable core.
6.The cable core is covered with a thin PE inner sheath, which is filled with jelly to protect it from water ingress.
7.Ater a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.
Product Feature
1.Good mechanical and temperature performance;
2.High strength loose tube that is hydrolysis resistant;
3.Special tube filling compound ensure a critical protection of fiber;
4.Special designed compact structure is good at preventing loose tubes from shrinking; PE sheath protects cable from ultraviolet radiation;
Technical Parameters:
Data Sheet
Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
Facory Picture
Certificate
