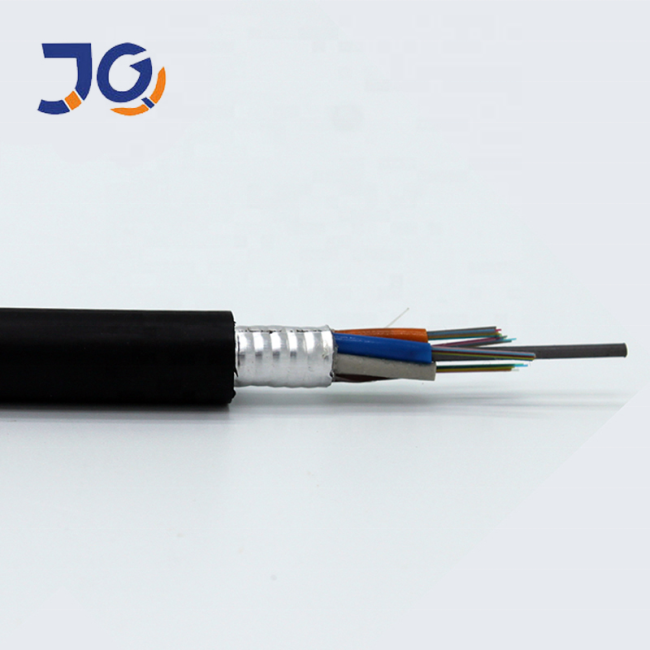

Multi Mode 50/125 Armored Fiber Optic Cable For Underground Anti Rodent Gyta Gyts

Price	Negotiable
MOQ	1KM
Delivery Time	3-5 days, it depends on your quantity
Brand	Jiqian
Place of Origin	Guangdong,China
Certification	CE/ISO9001
Model Number	GYTA
Packaging Details	wooden drum
Payment Terms	L/C, D/A, T/T, Western Union
Supply Ability	60000KM/month

Product Details

Product Specification

Fiber count	2-288Core	Place of Origin	Guangdong,China
Warranty	25 years	Packaging Details	wooden drum
Model Number	GYTA	Supply Ability	60000KM/month
Certification	CE/ISO9001	MOQ	1KM
Brand Name	Jiqian	Payment Terms	L/C, D/A, T/T, Western Union
Strength member	steel	Delivery Time	3-5 days, it depends on your quantity
Length	1/2/3/4/5KM	OEM	Yes
Minimum Order Quantity	1KM	Amoured	Yes

Product Description

Anti Rodent Gyta Gyts Multi Modle 50/125 Armored Fiber Optic Cable Price Per Mete For Underground
Product Description

			Product Name

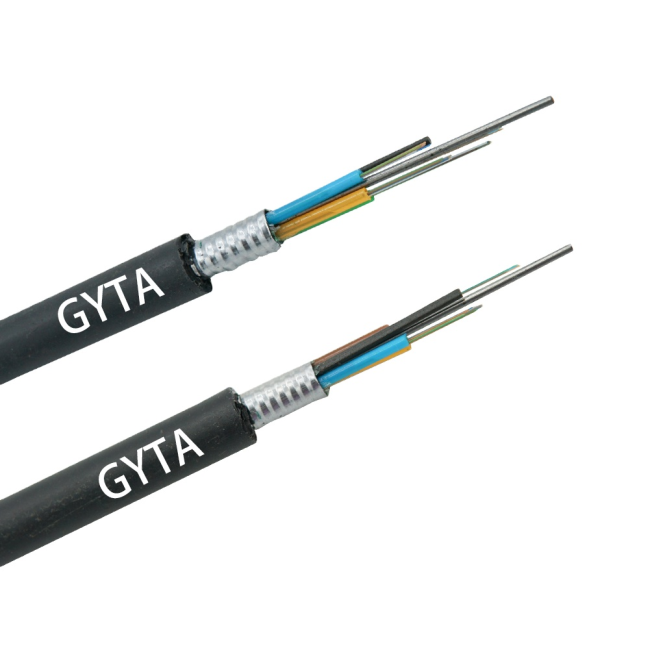

			GYTA Outdoor Fiber Optic Cable

			Material

			PE outer jacket

			Structure

			Stranded Loose Tube Aluminum Tape Cable

			Package

			3km/drum or customized

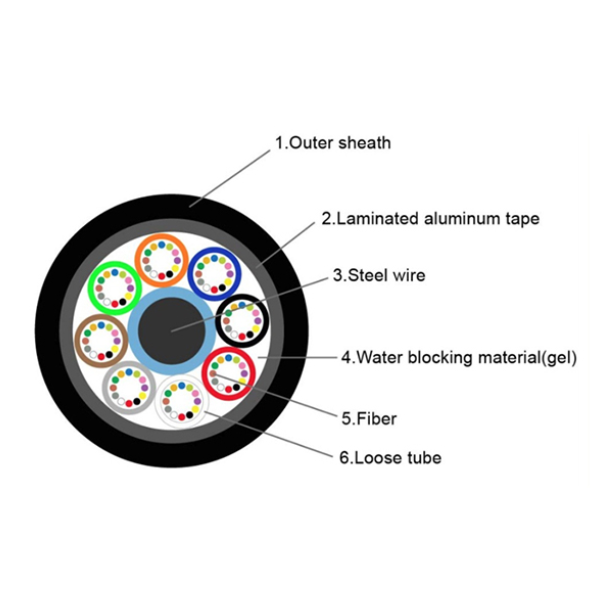

GYTA Optical Fiber Cable
Steel wire used as the central strength memberSteel wire used as the central strength member
Loose tube filling compound
100% cable core filling
APL moisture barrier
Fiber parameter

			Item
			Unit
			Specification

			Fiber Type
			G.652D

Mode field diameter

			1310nm
			mm
			9.2±0.4

			1550nm
			mm
			10.4±0.8

			Cladding diameter
			mm
			125.0±1

			Cladding non-circularity
			%
			£1.0

			Core/cladding concentricity error
			mm
			£0.5

			Coating diameter
			mm
			245±5

			Coating non-Circularity
			%
			£6.0

			Coating/cladding concentricity error
			mm
			£12.0

			Cable cut-off wavelength
			nm
			£1260

Attenuation Coefficient

			1310nm
			dB/km
			£0.36

			1550nm
			dB/km
			£0.22

			Proof stress level
			kpsi
			≥100

Company Picture

Packaging Details

1.Wooden reel, 1000m/reel,2000m/reel,3000m/reel,customer's requirements are also welcomed;

2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by strong wooden battens.

Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
We still have more. Please feel free to contact me. Whatsapp:+8618122383351

Multi Mode 50/125 Armored Fiber Optic Cable For Underground Anti Rodent Gyta Gyts

Product Details

Product Specification

Product Description

You May Also Like

Get Latest Price

Guangzhou Jiqian Fiber Optic Cable Co., Ltd.

Product Name	GYTA Outdoor Fiber Optic Cable
Material	PE outer jacket
Structure	Stranded Loose Tube Aluminum Tape Cable
Package	3km/drum or customized

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	mm	9.2±0.4
Mode field diameter	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	£1.0
Core/cladding concentricity error		mm	£0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	£6.0
Coating/cladding concentricity error		mm	£12.0
Cable cut-off wavelength		nm	£1260
Attenuation Coefficient	1310nm	dB/km	£0.36
Attenuation Coefficient	1550nm	dB/km	£0.22
Proof stress level		kpsi	≥100
