| Price | Negotiable |
| MOQ | 1 Kilometer |
| Delivery Time | 2-5days |
| Brand | JQ/OEM |
| Place of Origin | Guangdong, China |
| Certification | CE/ISO9001 |
| Model Number | GYFS |
| Packaging Details | Wooden Drum |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 8000 kilometers per month |
| Central strength member | FRP | Place of Origin | Guangdong, China |
| Packaging Details | Wooden Drum | Color | Customized |
| Model Number | GYFS | Supply Ability | 8000 kilometers per month |
| Certification | CE/ISO9001 | Brand Name | JQ/OEM |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union | Type | Outdoor Fiber Optic Cable |
| Delivery Time | 2-5days | Length | as required |
| Oem | Available | Minimum Order Quantity | 1 Kilometer |
| Cable Structure | Multi-Loose Tube Steel Tape armor | Package | Wooden Drum/Customized |
| Loose tube | PBT | Application | Outdoor overhead, buried, |
| Fiber type | G652D Single mode or as your request | Number of Conductors | ≥ 10 |
Product Description:

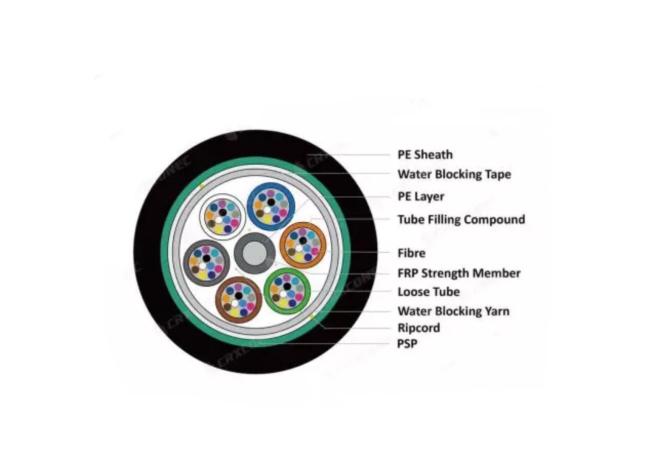

The fiber with armor dry cable (GYFS) is located in the loose sleeve of the water-blocking yarn, the core of the cable is a non-metal reinforced FRP (PE cushion may be added), and the FRP is twisted around the loose sleeve and the filling rope, the gap in the cable core is filled with the water-blocking yarn, and the water is blocked by the outer part of the cable core. Finally cable extruded steel polyethylene sheath.
Characteristics:
■Special
water-blocking
yarn
is
put
into
the
loose
tube
and
cable
core
to
provide
critical
protection
for
the
optical
fiber.
■The cable structure design is very tight.
■With good flexibility.
■Good mechanical and temperature characteristics.
■Strong resistance to water and moisture.
■PE outer sheath has strong resistance to ultraviolet radiation and wear resistance.
Application:
■Adapted
to
Outdoor
distribution.
■Long
distance
and
local
area
network
communication.
■Suitable
for
aerial
pipeline
laying
method.
Specification:
| item | value |
| Model Number | GYFS |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-288 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | FRP |
| Loose tube | Jelly filled |
| Loose Tube Material | PBT |
| Armoured | Steel tape |
| Outer Sheath | PE |
| Cable Structure | Multi-Loose Tube Steel Tape armor |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Installation | aerial, in duct |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m | |
| Attenuation | 850 nm | <3.0 dB/km | <3.3 dB/km | ||
| (+20X) | 1300 nm | <1.0 dB/km | <1.0 dB/km | ||
| 1310 nm | <0.34 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.21 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | ||
| 1300 nm | >500 MHz-km | >500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength cc | <1260 nm | <1450 nm |
| Fiber | Nominal | Nominal | Max Fiber | Max No. | Allowable Tensile | Allowable Crush | ||
| Count | Diameter | Weight | Per Tube | of(Tubes+ | Load(N) | Resistance(N/100mm) | ||
| (mm) | (kg/km) | fillers) | Short Term | Long Term | Short Term | Long Term | ||
| 2~36 | 10.3 | 109 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 11.5 | 145 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 13.5 | 175 | 12 | 8 | 1500 | 600 | 1000 | 300 |
| 98~120 | 14.8 | 209 | 12 | 10 | 1700 | 600 | 1000 | 300 |
| 122~144 | 16.6 | 249 | 12 | 12 | 2000 | 600 | 1000 | 300 |
| 146~216 | 16.7 | 254 | 12 | 18(2 layers) | 2000 | 600 | 1000 | 300 |
| 218~288 | 19 | 325 | 12 | 24(2 layers) | 2500 | 600 | 1000 | 300 |
Company Profile:
Guangzhou
Jiqian
Fiber
Optic
Cable
Co.Ltd.
is
located
in
2nd
Floor,Building
B3,Building
3
No.43
Lixin
9th
Road,Xintang
Town,Zengcheng
District,Guangzhou
city,Guangdong
province,China.It
is
a
large-scale
high-tech
specialized
joint-stock
enterprise
that
integrates
scientific
research,
development,production,
and
sales.
It
specializes
in
producing
various
types
and
specifications
of
optical
cables
with
2-288
cores.
The
company
adheres
to
the
corporate
spirit
of
"integrity,
speed,
flexibility,
efficiency,
and
innovation",
and
strives
for
perfection,
appreciation
for
customers,
and
paving
the
way
for
success,
Adhere
to
the
standard
that
"customer
satisfaction
is
the
most
important
measure
of
our
performance".
We
promise
to
work
together
with
you
with
high-quality
products,
discounted
prices,and
first-class
services
to
create
a
brilliant
career.
We
sincerely
welcome
customers
all
over
the
world
to
visit
our
factory
and
build
long
term
relationship
with
each
other.
