| Price | Negotiable |
| MOQ | 5km |
| Delivery Time | 10 working days |
| Brand | JQ/Customized |
| Place of Origin | Guangzhou,China |
| Certification | ISO9001, FCC, ROHS/CE |
| Model Number | GYTS/GYTA-12/24/48/96/144C |
| Packaging Details | wooden drum |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 800KM Per day |
| Fiber count | 2-288 cores | Installation | aerial & Duct |
| Place of Origin | Guangzhou,China | Packaging Details | wooden drum |
| Color | Black/Customized | Model Number | GYTS/GYTA-12/24/48/96/144C |
| Supply Ability | 800KM Per day | sample | acceptable |
| Certification | ISO9001, FCC, ROHS/CE | Armored | Steel tape |
| Brand Name | JQ/Customized | Payment Terms | L/C, T/T, Western Union |
| Strength member | Steel wire | Delivery Time | 10 working days |
| Product name | Outdoor Optic Fiber Cable | Minimum Order Quantity | 5km |
| Package | 1km/2km/3km/5km per roll | Jacket metarial | PE,HDPE/LSZH |
| Application | Telecom/network, Telecommunication | Fiber brand | YOFC/Fiberhome/ Corning |
Product Description

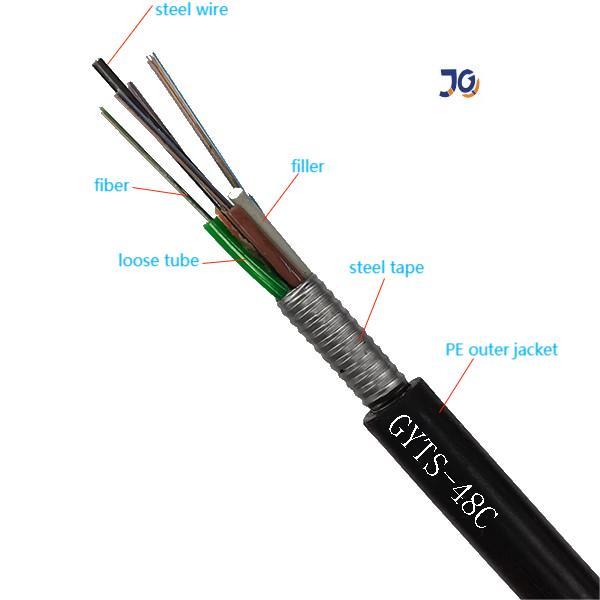

Description of a standard GYTS fiber optic cable
PBT loose tube of 2-12 fiber, Tube thickness: 0.3±0.05mm, Diameter: 2.1±0.1um, Fiber (Fiber characteristic), Cladding diameter: 125.0±0, Fiber characteristics: Diameter: 242±7 um, UV color fiber: Standard chromatogram. Central Strength member: steel wire with Diameter: 1.6mm. It has a Filling Compound; Longitudinal corrugated steel tape laminated with polyethylene on both sides. Consequently, it has a Corrugated steel Thickness: 0.4 ±0.015, Steel thickness: 0.15±0.015, Black MDPE out jacket, Jacket thickness: 1.8 ±0.20mm and Diameter: Cable Diameter: 10.5±0.20mm.
Features
Central loose tube with jelly compound inside to protect the cladding fiber.
Corrugated steel tape laminated with plastic at both sides bonding to PE sheath.
Good mechanical and temperature resistant performance..
Crush resistance and flexibility.
Light weight and small diameter, easy to installation and operation.
Applications:
Long distance and local area network(LAN) communication.
Aerial & conduit/duct application.
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
|
Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius |
Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-30 | 9.2 | 95 |
10
|
20
|
1500 | 600 | 1000 | 300 |
| 32-36 | 9.5 | 100 | 1500 | 600 | 1000 | 300 | ||
| 38-60 | 10.0 | 115 | 1500 | 600 | 1000 | 300 | ||
| 62-72 | 10.5 | 125 | 1500 | 600 | 1000 | 300 | ||
| 74-96 | 12.9 | 175 | 1500 | 600 | 1000 | 300 | ||
| 98-120 | 14.4 | 210 | 1500 | 600 | 1000 | 300 | ||
| 122-144 | 15.8 | 245 | 1500 | 600 | 1000 | 300 | ||
| 146-216 | 16.3 | 260 | 1500 | 600 | 1000 | 300 | ||
| 218-240 | 19.5 | 345 | 1500 | 600 | 1000 | 300 | ||
| 242-288 | 21.7 | 415 | 1500 | 600 | 1000 | 300 | ||
Detail product pictures
FAQ
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
