Firestone W01-M58-6140 Air Bags Single Convoluted Air Spring 1/4 Air Inlet

Suspension Air Springs
Jul 15, 2025
16 views
Chat Now
# Firestone W01-M58-6140 Air Bags # 1/4 Air Inlet Air Bags # Single Convoluted Air Spring Bags

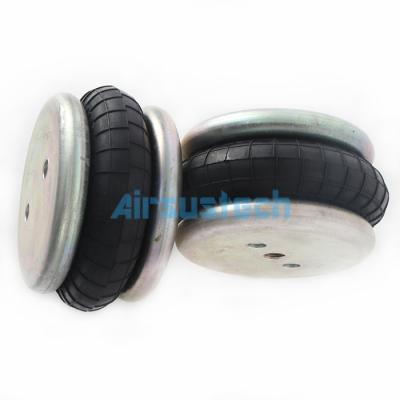

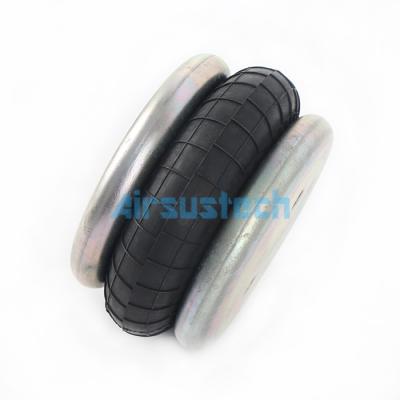

Firestone W01-M58-6140 Air Bags Single Convoluted Air Spring 1/4 Air Inlet Technical Parameters of W01-M58-6140: Dim. A (Blind Nut Centers) (mm): 44 Maximum Diameter @ 7 Bar (mm): 152 Minimum Height (mm): 48 Maximum Stroke (mm): 36 Maximum Usable Height (mm): 84 Air Inlet: 1/4 BSP Force in kN @ 5 Bar at Stroke of 25 mm: 3.6 Force in kN @ 5 Bar at Stroke of Maximum Stroke: 2.5 Cross References: Bos-ch 1915041000 ContiTech FS50-5 1/4 M8 FS50-5CI G1/4 Enidine YI 1B5 810 Enidine
Learn More →
Firestone W01-M58-6140 Air Bags Single Convoluted Air Spring 1/4 Air Inlet
Firestone W01-M58-6140 Air Bags Single Convoluted Air Spring 1/4 Air Inlet
Learn More
