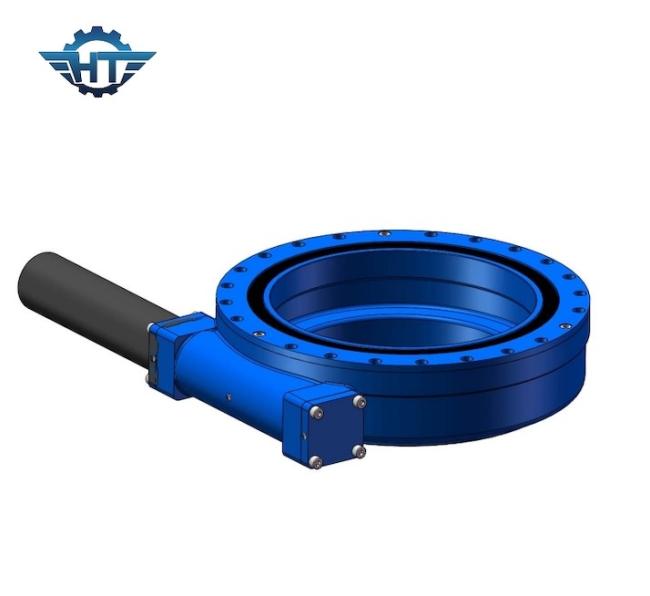

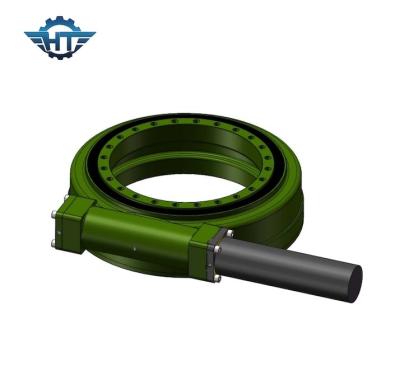

Hourglass Worm Gear Slew Drive For Solar Tracker With 24VDC Planetary Gear Motor
Hourglass Worm Gear Slew Drive Description
SE single axis horizontal slewing drive is a critical component in both single axis solar tracking system and dual axis solar tracking system. Besides, it can also applied in CSP and CPV system, wind energy etc.
Single-Axis Trackers
A single-axis tracker orients PV modules along one axis of rotation, moving horizontally from east to west as the sun moves. Moving these PV modules requires that the reducer offer both load-holding and rotational torque – something only a highly specialized slewing drive can offer. Trackers applied slewing drives that engage a greater number of teeth on the pitch line of the gear ring will offer the maximum amount of strength, durability and performance. This ensures the tracker has the longest possible field life with the least amount of downtime or maintenance cost.
Dual-Axis Trackers
Dual-axis
trackers
rotate
side
to
side
and
up
and
down,
enabling
even
more
precise
tracking
of
the
sun's
movement.These
slewing
drives
enable
a
higher
energy
output
than
single-axis
systems.
Given
that
they
employ
two
degrees
of
freedom,
utilizing
strong
and
powerful
slewing
drives
is
even
more
important
for
reliable
and
continuous
functionality
in
the
field.
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self- locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Advantages
1. Rotation 360 degrees
2. Driving motor connected to the left or right side
3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory
4. Grease had been filled before factory
4. Simple installation and low maintenance
5. Rational space utilization
6. The gear is self-locking; therefore a brake is not necessary
7. Easy and fluent method of starting and stopping
8. High tilting torque, suitable for horizontal installation
