| Price | US $10-15 / Piece |
| MOQ | 1 PCS |
| Delivery Time | Negotiable |
| Brand | LY Corrugated |
| Place of Origin | China |
| Certification | CE、ISO、TUV、SGS |
| Model Number | Flexible Metal Hose |
| Packaging Details | case |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 20000 Piece/Pieces Per Month |
| Temperature | -235-400ºC | Place of Origin | China |
| Packaging Details | case | Media | Water,Steam,Oil,Air,Various Liquids |
| Model Number | Flexible Metal Hose | Supply Ability | 20000 Piece/Pieces Per Month |
| Certification | CE、ISO、TUV、SGS | Max. Pressure | 2.5MPa |
| Suitable for | High Temperature, High Pressure | Brand Name | LY Corrugated |
| Payment Terms | L/C, D/A, D/P, T/T | Advantage | Good Sealing Performance and Long Service Life |
| Price | US $10-15 / Piece | Minimum Order Quantity | 1 PCS |

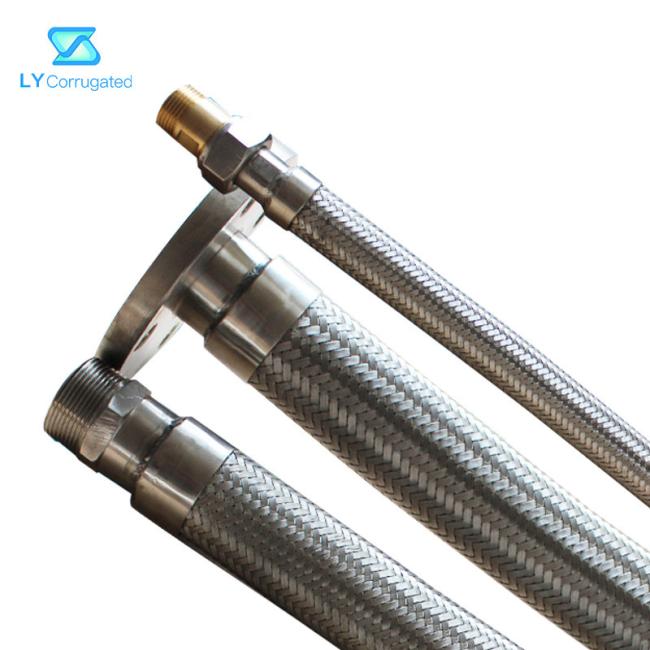

OEM 1/2" 3/4" Stainless Steel Corrugated Hose Metal Flexible Metal Hose
| Metal Hose Specifications | ||||||
| Nominal Diameter | standard Spiral Size | Working Pressure Mpa | Material | L(MM) | ||
| inch | M | S | ||||
| 6 | 1/4' | 14*1.5 | 17 | 2.5 |
stalnless
steel(306/316) The joint is made ofcopper, carbon steel,stainless steel (the sealing surfacecan be matchedaccording to thecover of the hosesealing surface) |
The
length
canbe
processed according tocustomer requirements |
| 8 | 5/16' | 16*1.5 | 19 | 2.5 | ||
| 10 | 3/8' | 18*1.5 | 24 | 2.5 | ||
| 12 | 1/2' | 20*1.5 | 24 | 1.6 | ||
| 14 | 1/2' | 22.1.5 | 27 | 1.6 | ||
| 15 | 1./2' | 24*1.5 | 30 | 1.6 | ||
| 16 | 5/8' | 27*1.5 | 32 | 1.6 | ||
| 18 | 3/4' | 30*1.5 | 37 | 1.6 | ||
| 20 | 3/4' | 33*2 | 38 | 1.6 | ||
| 25 | 1' | 36*1.5 | 41 | 1.6 | ||
| 36*2 | 41 | 1.6 | ||||
| 39*2 | 45 | 1.6 | ||||
| 30 | 1-1/4' | 45*1.5 | 51 | 1.6 | ||
| 32 | 1-1/4' | 48*2 | 55 | 1.6 | ||
| 40 | 1-1/2' | 58*2 | 68 | 1.6 | ||
| 48 | 2' | 68*2 | 76 | 1.6 | ||
| 50 | 2' | 70*2 | 78 | 1.6 | ||
| 65 | 2-1/2' | 85*2 | 95 | 1.6 | ||
Flexible Metal Hose
1,
easy
to
disassemble
2,
shockproof,
anti-dislocation,
load
reduction
3,
excellent
anti-rust
material
4,
good
sealing
performance,
long
service
life
5,
the
design
structure
is
reasonable,
corrosion
resistance
