| Price | US$15900 - US$31800 / Set |
| MOQ | 1 Set |
| Delivery Time | 20-30 work days |
| Brand | Lycorrugated |
| Place of Origin | Foshan |
| Certification | CE, ISO,TUV, SGS |
| Model Number | Bridge Alignment and Tension Control |
| Packaging Details | Case |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 600 Sets per year |
| Place of Origin | Foshan | The guiding board multi-layer alignment effect | up to +-1mm |
| Tension machine magnetic powder brake pull force | up to 10kg MPa | Cardboard Web Size | 1800mm |
| Packaging Details | Case | Product | Overhead Bridge Alignment System |
| Model Number | Bridge Alignment and Tension Control | Supply Ability | 600 Sets per year |
| Corrugated Cardboard Layers | 3/5/7 layers | Certification | CE, ISO,TUV, SGS |
| Brand Name | Lycorrugated | Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Detection light curtain accuracy | 0.5mm | Price | US$15900 - US$31800 / Set |
| Delivery Time | 20-30 work days | The guiding range | +-5cm |
| Minimum Order Quantity | 1 Set | Application | 1800mm Corrugated Cardboard Production Line |

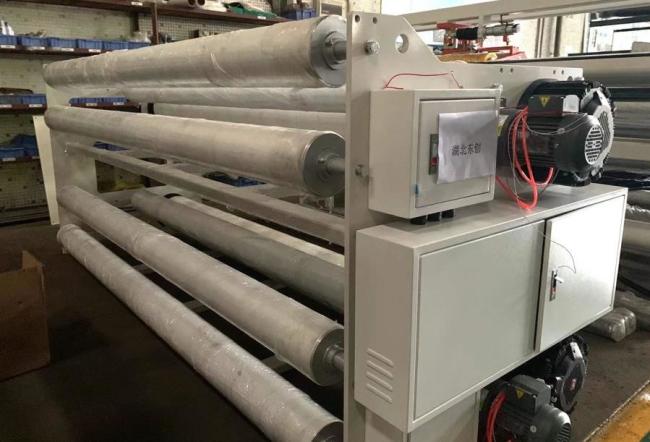

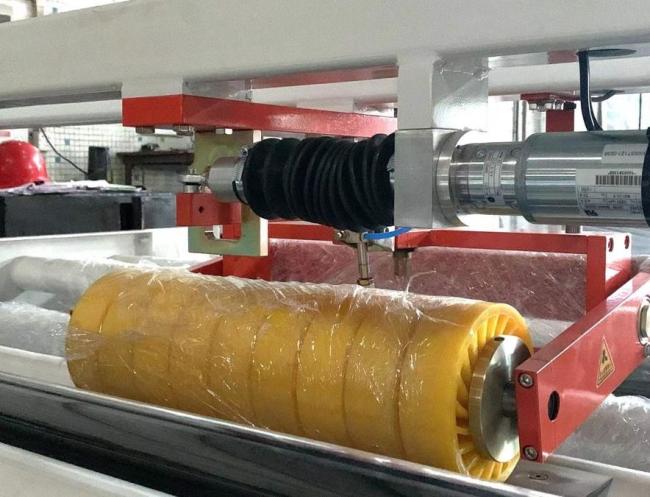

1800mm Bridge Web Tension Control System For 3/5/7 Ply Corrugated Line
Technical Parameters:
| Product | Bridge Alignment System For Corrugator |
| Application | 1800mm 3/5/7 ply Corrugated Line |
| Detection light curtain accuracy | 0.5mm |
| The guiding range | +-5cm |
| The guiding board multi-layer alignment effect | up to +-1mm |
| Tension machine magnetic powder brake pull force | up to 10kg MPa |
| Measurement accuracy of material edge and material center | +- 1mm |
| Accuracy of width measurement | +-2mm |
Advantage:
1.Replace the suction fan to save production cost
2.The material tension is stable, equipped with a touch screen, which can be used for diagnosis and maintenance
3.High-precision pneumatic brake, German electronically controlled proportional valve
4.Servo drive, high precision and fast response, equipped with a paper drawing motor, which is suit for three/ five/ seven layer corrugated type conversion and feeding
