| Price | Negotiable |
| MOQ | 50 EA |
| Delivery Time | 30 days |
| Place of Origin | China |
| Certification | API 7K |
| Model Number | 6-1/2 inch |
| Packaging Details | Wooden Box |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 500 EA Per Month |
| Place of Origin | China | Support | OEM |
| Size | 6-1/2” | Packaging Details | Wooden Box |
| Product Name | Piston Assembly | Material | Polyurethane |
| Model Number | 6-1/2 inch | Supply Ability | 500 EA Per Month |
| Pressure | 7500Psi | Certification | API 7K |
| Brand Name | Payment Terms | L/C, T/T, Western Union | |
| Industry | Oil Drilling Mud Pump | Delivery Time | 30 days |
| Minimum Order Quantity | 50 EA |

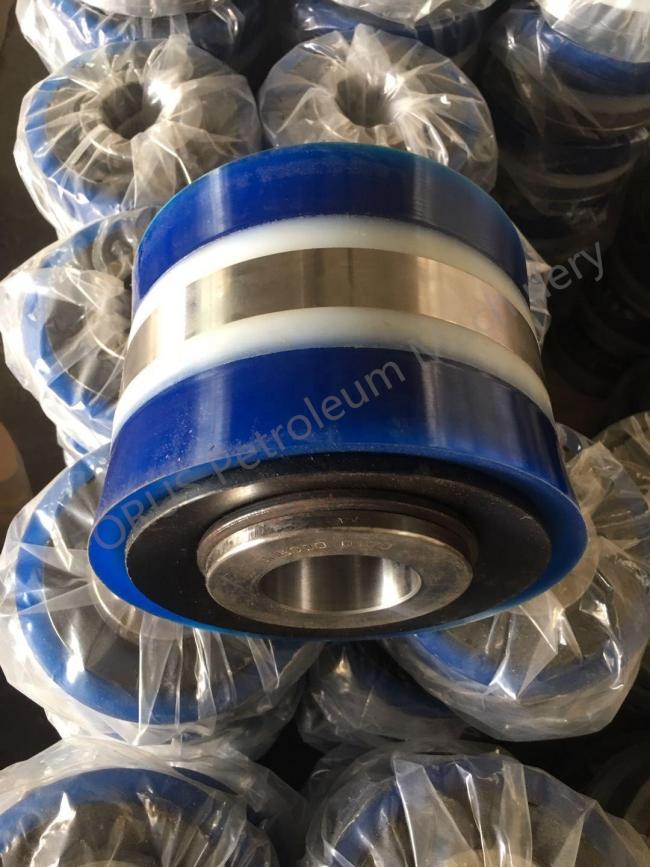

Mud Pump Piston For BOMCO/EMSCO/ NOV /GD Mud Pump Piston
Mud Pump Piston Product Description
The piston assembly is one of the main parts of the hydraulic end system of the mud pump, and it is also one of the vulnerable parts in the drilling work. The discharge pressure of the mud pump is generated by the reciprocating linear movement of the piston assembly in the piston. The piston assembly is composed of a piston core, rubber, circlip, pressure plate, etc. The material of the piston core is 42CrMo, and the material of the piston rubber is nitrile rubber or polyurethane rubber.
Product Feature
* USA Imported Polyurethane Technology
* World Leading HIGH PRESSURE Technology
* Bonded Flex Lip Type, Dual Durometer
* 7500 Psi High Pressure & High Abrasion Resistance
* Extremely Long & Reliable Service Life
* Chinese Dual Duro & USA Dual Duro Polyurethane for Options
* Fully interchangeable with Green Duo & world major piston types
Mud Pump Part List
| Item | Product Description | Mud Pump Model | Part No. |
| 1 | Hydraulic cylinder assembly | F-1300/F-1600 | AH130102050100 |
| 2 | Cylinder head flange | F-1300/F-1600 | AH1301010502 |
| 3 | Cylinder head | F-1300/F-1600 | AH1301010503 |
| 4 | Plug board assembly | F-1300/F-1600 | AH130101050400 |
| 5 | Valve rod guides(lower) | F-1300/F-1600 | AH130101050500 |
| 6 | Cylinder head plug | F-1300/F-1600 | AH130101050600 |
| 7 | Positioning plate | F-1300/F-1600 | AH1301010507 |
| 8 | Cylinder head gasket | F-1300/F-1600 | AH1301010508 |
| 9 | Cylinder liner lock ring | F-1300/F-1600 | AH1301010518 |
Supply Brand
BOMCO: F-500,F-800,F-1000,F-1300,F-1600,F-1600HL,F-2200HL
HONGHUA:HHF-500,HHF-1000,HHF-1300,HHF-1600,HHF-1600HL,HHF-2200HL
RONGSHENG:RS-F500,RS-F800,RS-F1000,RS-F1300,RS-F1600
LS:3NB-1300C, 3NB-1000, 3NB-1000C,3NB-800
ITECO:T-500,T-800,T-1000,T-1600
Oil WELL:A-350-PT, A-650-PT,A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT
WEATHERFORD:MP-5, MP-8, MP-10, MP-13, MP-16
NATIONAL: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220, C-250,C-350, K-380, K-500-A, K-700
EMSCO:F-350,F-500,F-650,F-800,F-1000,FA-1300,FA-1600,FB-1300,FB-1600,FC-1600, FC-2200,FD-1000, FD-1600
GARDNER DENVER:PZ-7, PZ-8, PZ-9,PZ-10,PZ-11
