| Price | Negotiable |
| MOQ | 1 Set |
| Delivery Time | 20 days |
| Brand | FORUS |
| Place of Origin | China |
| Certification | API 7K |
| Model Number | ZP275 |
| Packaging Details | Wooden Box |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 300 Sets Per Month |
| Place of Origin | China | Packaging Details | Wooden Box |
| Product Name | Rotary Table | Material | Carbon Steel |
| Standard | API | Process | Casting |
| Model Number | ZP275 | Supply Ability | 300 Sets Per Month |
| Certification | API 7K | Brand Name | FORUS |
| Payment Terms | L/C, T/T, Western Union | Industry | Oilfield Drilling |
| Delivery Time | 20 days | COC | Provide |
| Minimum Order Quantity | 1 Set |

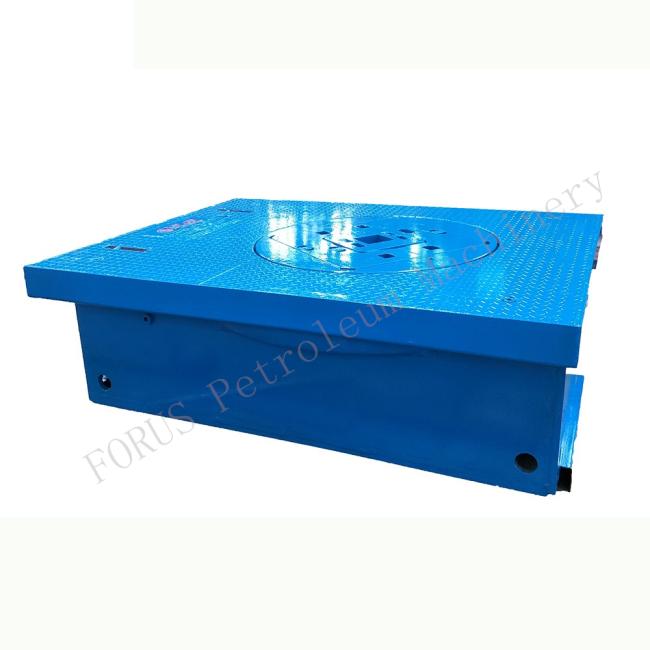

Drilling Rig Components New Top Quality API Standard Rotary Table
product information:
The drilling rig rotary table is an important part of the drilling rig. Its function is to decelerate a pair of bevel gear pairs during drilling operation, so
that the turntable can obtain a certain range of rotational speed and torque output, and drive the drilling tool to perform drilling operations.
Rotary table structure features:
* Meets Api7k requirements.
* Meet the requirements of industry standard SY/T5531.
* The turntable adopts spiral bevel gear drive, which has high bearing capacity, stable operation
Specification Parameter
| Model | ZP70 | ZP125 | ZP175 | ZP205 | ZP275 | ZP375 |
| Hole Dia. (mm) | 180 | 305 | 444.5 | 520.7 | 698.5 | 952.5 |
| Max static Load (kN) | 600 | 1350 | 1350 | 3150 | 4500 | 5850 |
| Max working torque (kN.m) | 8 | 12 | 13.7 | 22.6 | 27.5 | 32.4 |
| max speed (r/min) | 300 | |||||
| gear ratio | 2.94 | 3.5 | 3.58 | 3.62 | 3.67 | 3.56 |
| central distance (mm) | 591 | 1118 | 1118 | 1353 | 1353 | 1353 |
| central height | -- | 160 | 270 | 318 | 330 | 330 |
