| Price | Negotiable |
| MOQ | 1 |
| Delivery Time | Negotiable |
| Brand | GLM |
| Place of Origin | China |
| Certification | ASME, PED and GB |
| Model Number | CAP |
| Packaging Details | wooden box and iron shelf or as percustomers requirement |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 50000 |
| Place of Origin | China | Standard: | ANSI, ASME ,MSS, API, DIN, JIS, BS. AWWA and GB |
| Packaging Details | wooden box and iron shelf or as percustomers requirement | Model Number | CAP |
| Supply Ability | 50000 | Certification | ASME, PED and GB |
| Brand Name | GLM | Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Shape: | Equal | material | Carbon steel |
| Minimum Order Quantity | 1 | Head Code | conical tank heads |
| Usage: | Convey Water, Oil, Gas, Steam and so on | Diameter | 3800 |

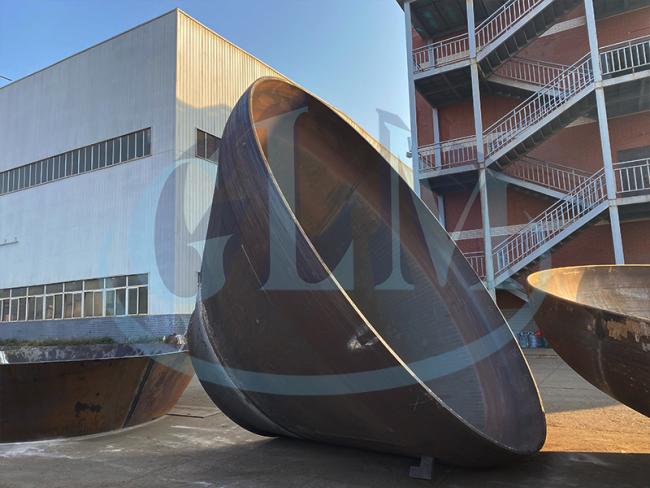

The conical head is applied for the bottom of the pressure vessel to facilitate the collection and removal of internal materials and for the connection of two-stage vessels of varying diameters
Technical characteristics
A conical head is generally specified by following factors :
Big Diameter , Small Diameter , Bottom angle, Knuckle radius or
Big Diameter , Small Diameter , Height, Knuckle radius .
For 15°cones : Possibility to realize it without welding seams
Possible knuckle radius value if edging machining :
4 – 15 – 30 – 50 – 75 – 100 – 125 – 150 – 200 …
Possible knuckle radius value if embossing process:
5 – 10 – 15 – 20 – 30 – 50 – …
| Brand Name: | GLM |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
