| Price | Negotiable |
| MOQ | 1 |
| Delivery Time | Negotiable |
| Brand | GLM |
| Place of Origin | China |
| Certification | ASME, PED and GB |
| Model Number | CAP |
| Packaging Details | wooden box and iron shelf or as percustomers requirement |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 50000 |
| Brand Name | GLM | Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Place of Origin | China | Technics | hot press |
| Minimum Order Quantity | 1 | Packaging Details | wooden box and iron shelf or as percustomers requirement |
| General | Large Diameter spherical Heads | Process | Welded Heat Treated |
| Material | Carbon Steel | Model Number | CAP |
| Supply Ability | 50000 | Certification | ASME, PED and GB |
Description:
Spherical end is a part of the spherical surface directly connected with the cylinder, due to the simple structure, easy to manufacture, often used as a vessel in the two independent pressure chamber of the middle head can also be used as end caps. Because there is no corner transition between the spherical surface and the cylinder, there is considerable discontinuous stress on the seal head and the cylinder near the joint. The stress distribution is not very reasonable. Therefore, in the low-pressure vessel equipment, the spherical head can be used. The biggest advantage of the spherical head is that any diameter can be customized. The boundary forces and bending moments mainly affect the stress near the joint edge, so the stress at the near-central part of the spherical cap is still dominated by the stress of the film. The stress on the cylinder farther away from the spherical cap is also dominated by the stress of the film. The connection between the spherical cap and the cylinder is affected by the boundary force, etc., and additional radial and circumferential bending stress and local film stress are induced on the basis of the original film stress.
Specifications:
| Brand Name: | GLM |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
Product

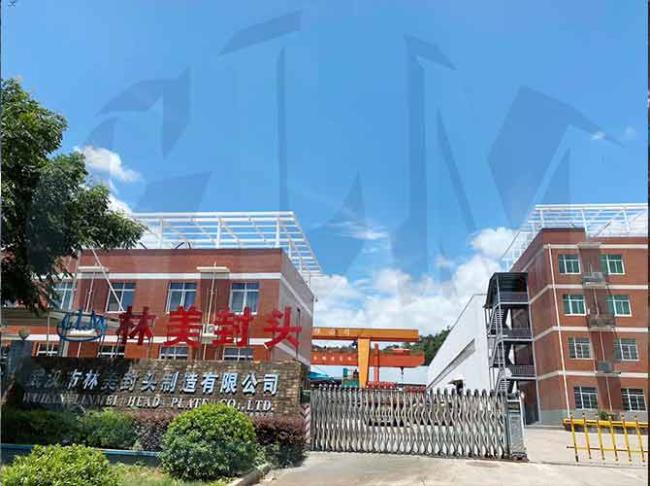

Our Company
