| Price | Negotiable |
| MOQ | 1 |
| Delivery Time | Negotiable |
| Brand | GLM |
| Place of Origin | China |
| Certification | ASME, PED and GB |
| Model Number | CAP |
| Packaging Details | wooden box and iron shelf or as percustomers requirement |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 50000 |
| Place of Origin | China | Standard: | ANSI, ASME ,MSS, API, DIN, JIS, BS. AWWA and GB |
| Packaging Details | wooden box and iron shelf or as percustomers requirement | Test: | UT,RT,MT,PT,ET |
| Model Number | CAP | Supply Ability | 50000 |
| Certification | ASME, PED and GB | Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Brand Name | GLM | Shape: | Equal |
| Technics: | Forged | Minimum Order Quantity | 1 |
| Head Code | hemispherical heads | Usage: | Convey Water, Oil, Gas, Steam and so on |
carbon steel tank dishes end cap Hemispherical Ellipsoidal conical Dished Head

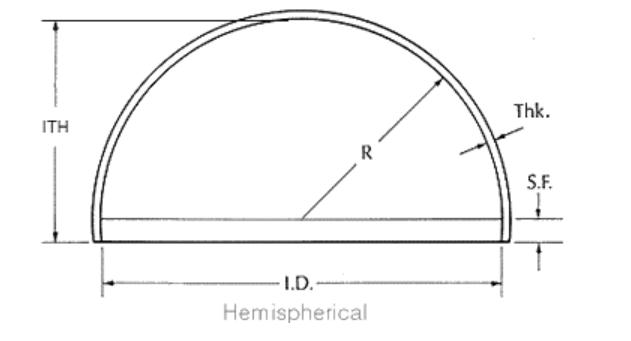

Hemispherical Head is widely applied to make pressure tanks to storage liquids and gasses. Our asme hemispherical head is often made with carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. Hemispherical is the ideal shape for development of hemispherical dish end, because the pressure in the vessel is divided equally across the surface of the head. The radius (Ri) of the head equals the radius of the cylindrical part of the vessel. This type of hemispherical tank heads or hemispherical dish ends are made in most popular sizes and thicknesses.
The smaller diameter of the hemispherical head can be the overall compression molding, but the larger diameter because of its large depth, the overall compression is difficult, it is necessary to use a number of the same sizes of the trapezoidal ball and the top of the center of a round spherical plate ball crown made of welding.
Specifications:
| Brand Name: | GLM |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
producing-process mode
