| Price | Negotiable |
| MOQ | 1 |
| Delivery Time | Negotiable |
| Brand | GLM |
| Place of Origin | China |
| Certification | ASME, PED and GB |
| Model Number | CAP |
| Packaging Details | wooden box and iron shelf or as percustomers requirement |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 50000 |
| Place of Origin | China | Delivery time | 20 days after receiving the down payment |
| keywords | formed head,asme elliptical end | thickness | 20mm |
| Packaging Details | wooden box and iron shelf or as percustomers requirement | Material | as516 gr 70 |
| Specification | Standard specification | Model Number | CAP |
| Supply Ability | 50000 | Certification | ASME, PED and GB |
| Brand Name | GLM | Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Minimum Order Quantity | 1 | Surface Treatment | Rust-proof oil, Galvanizing |
| General | ASME CarbonSteel Elliptical Dish End | Application | Heat Pressure Vessel, Reaction Pressure Vessel |
Description of asme elliptical dish end
The elliptical end ( or named ellipsoidal head ) which is a head consisting of two parts: a rotating ellipsoidal sphere and a cylindrical straight section.
asme elliptical dish end is fabricated to have a certain shape instead of a particular dish radius or knuckle radius. The dish radius is approximately 90% of the diameter and the knuckle radius is approximately 17% of the diameter. 2:1 elliptical flanged and dished ends are ASME compliant.
Quality Control of dish head:
Materials purchased - Physical and chemical tests - Production - Hot forging and forming - Heat treatment - Inspection - Fine finishing - Finished product inspection - Marking - Finished product inspection - Marking - Packing and typing - Shipping.
Specifications of elliptical dish end:
| Brand Name: | GLM |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |

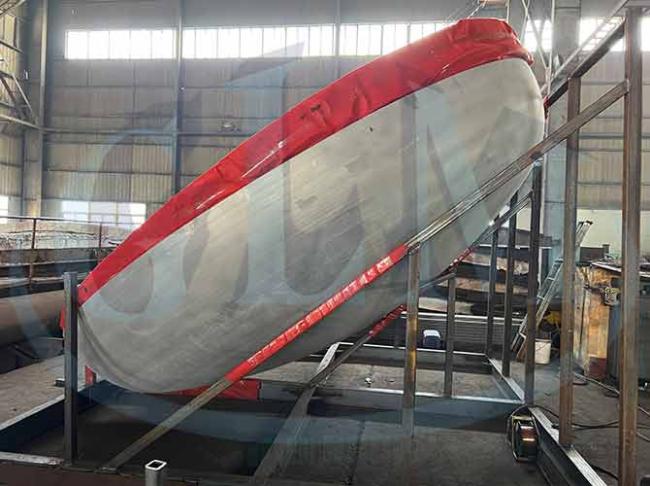

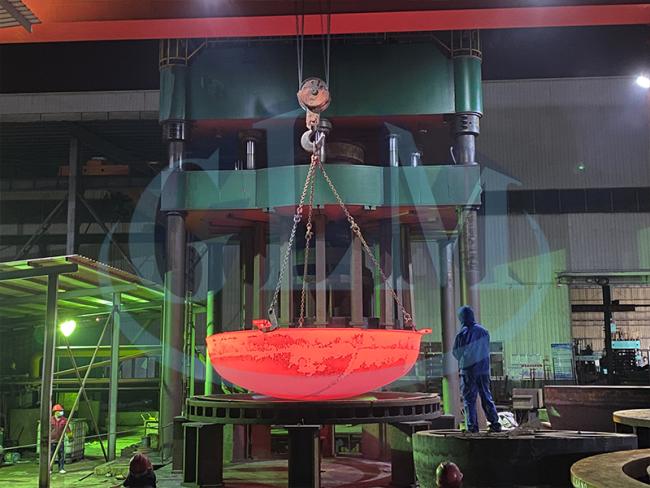

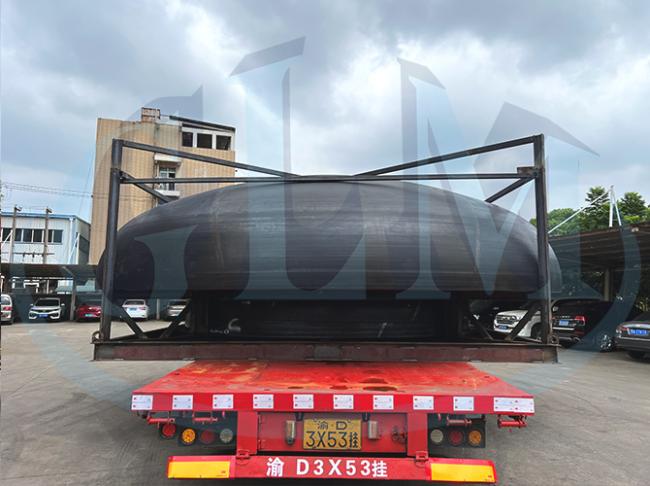

Product Display of carbon steel end
