| Price | Negotiate |
| MOQ | 2 PCS |
| Delivery Time | Negotiable |
| Brand | Shine Abrasives |
| Place of Origin | CHINA |
| Certification | ISO |
| Model Number | 1A1 |
| Packaging Details | 1 pcs in one paper box |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 PCS per week |
| Grit Size | D107 | Place of Origin | CHINA |
| Shape | 1F1 | Packaging Details | 1 pcs in one paper box |
| HS Code | 6804211000 | Model Number | 1A1 |
| Body materials | Aluminum | Supply Ability | 1000 PCS per week |
| Certification | ISO | Brand Name | Shine Abrasives |
| Payment Terms | L/C, T/T | Price | Negotiate |
| Minimum Order Quantity | 2 PCS | Bond | Metal |
| Diameter | 8 inch 200mm |
Metal Bond Diamond Wheels For Float Glass Edge And Profile Grinding
Shine Abrasives metal bond diamond grinding wheels, used for float glass lines
with below machines.
Straight Line Edge Grinding Machine
Double Edge Grinding Machine
Straight line Bevelling Machine
Shape Machine
Round Edge Machine
Double Round Edge Machine
CNC Glass Processing Machine

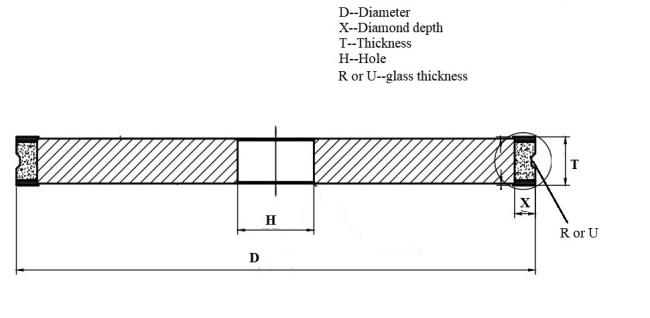

The typical drawing of Shine Abrasives Metal Bond Diamond Wheels For Float Glass Edge And Profile Grinding.
The main sizes form of Shine Abrasives Metal Bond Diamond Wheels For Float Glass Edge And Profile Grinding.
|
R or U Glass thickness |
D Diameter |
X Diamond depth |
T Thickness |
H Hole |
Diamond grit sizes |
| 3mm |
100mm 125mm 150mm 175mm 200mm |
5mm 7mm 10mm |
10mm |
20mm 22mm 50mm 60mm 90mm customized
|
D126 D107 D91 D76 D64 D54 D46 customized
|
| 4mm | 11mm | ||||
| 5mm | 12mm | ||||
| 6mm | 13mm | ||||
| 8mm | 15mm | ||||
| 10mm | 17mm | ||||
| 12mm | 19mm | ||||
| 15mm | 21mm |
Other standard sizes also are available as requested.
Features of Shine Abrasives Metal Bond Diamond Wheels For Float Glass Edge And Profile Grinding.
Tough, durable metal bond
High quality synthetic diamond abrasives
Economical
Aggressive grinding or profiles performance
Various sizes and grit sizes are available as customized.

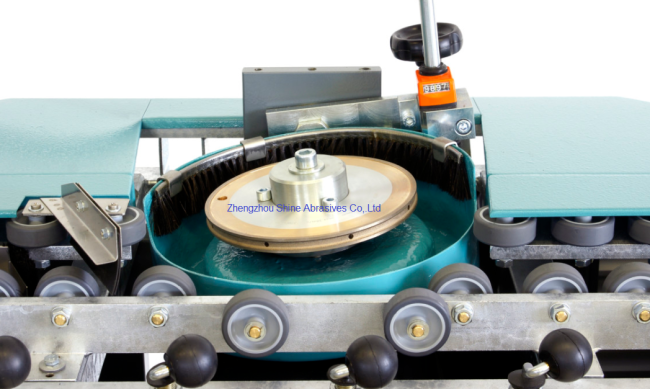

Application picture for reference.
