1A1 Resin Bond Grinding Wheel for PDC Drill Bits Oil Drilling Tools The Essential Solution for Downhole Tool Maintenance

Price	FOB
MOQ	2 pcs
Delivery Time	5 work days
Brand	Shine Abrasives
Place of Origin	China
Certification	ISO
Model Number	4V2 1A1 14A2
Packaging Details	one in paperbox
Payment Terms	L/C, T/T
Supply Ability	1000 PCS in one week

Product Details

Product Specification

Grit Size	120	Packaging Details	one in paperbox
Supply Ability	1000 PCS in one week	Accuracy	High
Minimum Order Quantity	2 pcs	Features	diamond sintered grinding wheel for gem
Wheel Color	Black	Wheel Performance	Varies
Place of Origin	China	Color	White
Quantity	High	Wheel Hole Number	Varies
Material	Diamond	Concentration	100%
Model Number	4V2 1A1 14A2	Wheel Grade	Fine
Certification	ISO	Brand Name	Shine Abrasives
Payment Terms	L/C, T/T	Rim Size	8x3mm
Price	FOB	Delivery Time	5 work days
Wheel Face Width	Varies	Hole Diameter	Other
Surface Finish	Smooth

Product Description

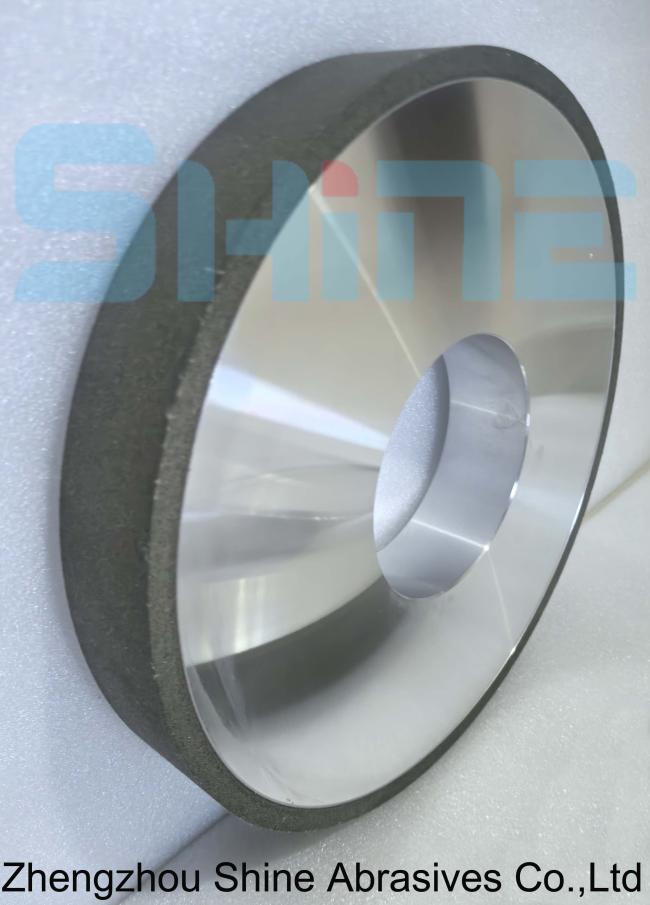

1A1 Resin Bond Grinding Wheel for PDC Drill Bits Oil Drilling Tools

The Essential Solution for Downhole Tool Maintenance

Product Specifications

Attribute	Value
Wheel Face Width	Varies
Wheel Grade	Fine
Accuracy	High
Concentration	100%
Rim Size	8x3mm
Color	White
Wheel Color	Black
Features	diamond sintered grinding wheel for gem
Hole Diameter	Other
Wheel Hole Number	Varies
Surface Finish	Smooth
Grit Size	120
Material	Diamond
Quantity	High
Wheel Performance	Varies

Product Description

1A1 Resin Bond Grinding Wheel for PDC Drill Bits Oil Drilling Tools. The most important is that it is very cost effective. It is more competitive than Vitrified bond and Metal Bond. So it is broadly applied in the grinding industries.

1A1 resin grinding wheel is mainly used in PDC drilling bit, PDC cutter/inserts, tungsten carbide coating/insert, carbide coating, hardfacing coating.

Type	1A1 Flat resin bond diamond grinding wheel
Concentration	50%,75%,125%,150%
Mesh	46#,60#,80#,100#,120#(coarse grinding); 120#,150#,180#,200#,240#(medium grinding); 280#,320#,400#,500#,600#(fine grinding); 800#,1000#,1200#,1500#,2000#,3000#(polishing)
Specification	D75-H10-T5-X10 D150-H19-X5-T5 D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75 D175-H127-X4-T5 D250-H40-X10-T3 D300-H127-X10-T40 D350-H127-T20-X10 D400-H127-T40-X10 D500-H203-X10-T32 Specification sizes can be customized
Application	Hard alloy, high alumina porcelain, optical glass agate gemstone, semiconductor material, ceramics, stone, etc

Maintaining Downhole Tools with Diamond Wheels

Downhole tools are of the utmost importance when it comes to the oil and mining industry. The quality of downhole tools is key when comes to facing the difficult and technically challenging risks that companies face when discovering oil and minerals.

1A1 Resin Bond Diamond Grinding Wheel for PDC Drill Bits
