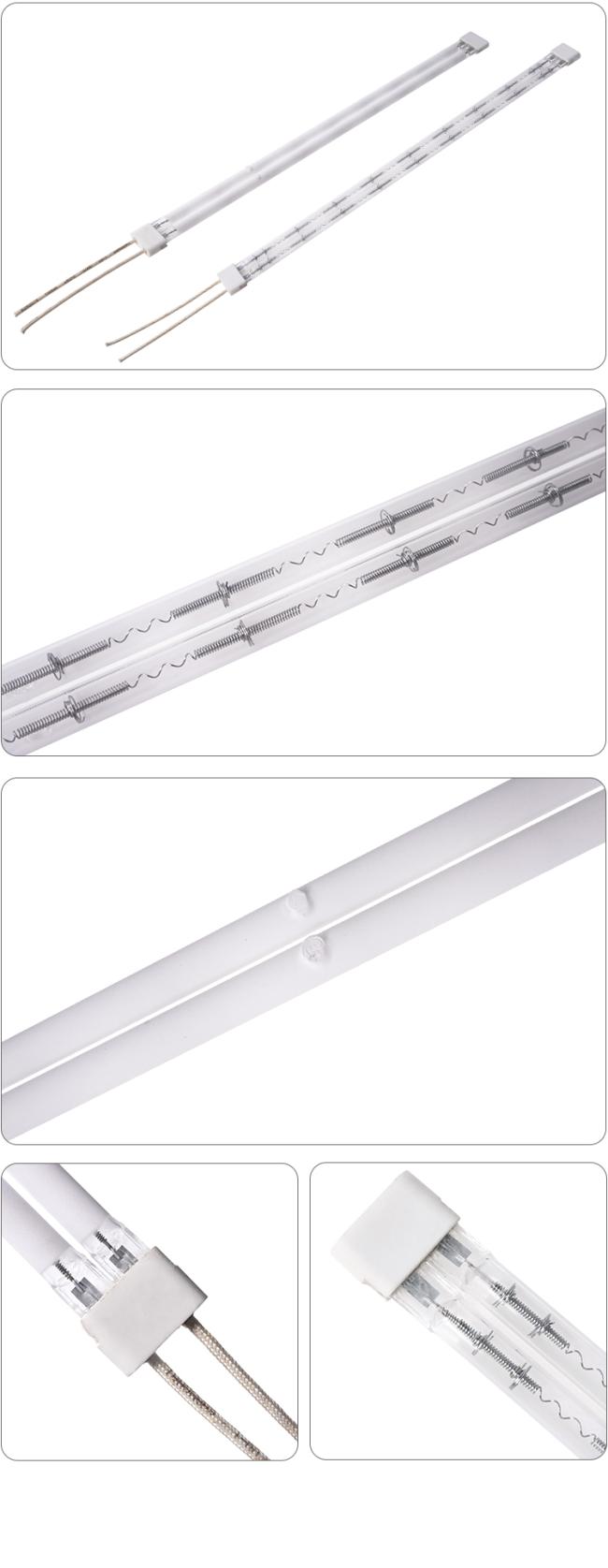

Single Tube Quartz Short Wave Heating Lamp Tungsten Infrared Tube
Product Specifications
| Attribute |
Value |
| Application |
Infrared heater, Painting drying |
| Working Time |
5000h |
| Heating length |
50-1500mm |
| Reflector |
White |
| Tube material |
Tungsten, quartz glass |
| Response time |
1s |
| Wave Length |
Short wave |
| OEM/ODM |
Many types of voltage, wattage, length, base, cables, universal burning position available |
Key Features
- Infrared heater matched to materials for up to 50% energy savings
- Consistent and reliable quality
- 24-hour customer support
- CE, ISO9001, RoHS, SGS certified
- Low minimum order quantity (1pc samples available)
Technical Details
| Specification |
Details |
| Filament |
Tungsten |
| Lamp reflector |
White Reflector |
| Voltage |
55-575V (customizable) |
| Wattage |
200-4000W (customizable) |
| Wave Length |
Short wave |
| Tube diameter |
8-24mm |
| Life Time |
>5000hrs |
Design Characteristics
- Power range: 200 to 5,000 W
- Voltage range: 24 to 575 V
- Short, Medium and Long-Wave IR designs available
- Filament temperatures: 1,100°C to 2,600°C
- Heat lengths: 50 to 1,500 mm
- Reflective layers: gold, white
- Fast response time (1 second for Short-Wave)
- Tube diameters: 8 to 25 mm
- Standard stock items for immediate delivery
- Custom and OEM designs available
Infrared Lamps for Industrial Applications
Frequently Asked Questions
Are you a factory or trading company?
We are a professional factory.
Where is your factory located? How can I visit there?
Our factory is located in JiangMen City, Guangdong Province, China. You can fly to Guangzhou BAIYUN airport directly. We welcome all clients to visit us.
Can I get some samples?
We are happy to offer samples for you to check and test.
Do you have any MOQ limit?
Low MOQ, 1pc for sample checking is available.
What about the lead time?
Sample needs 3-7 work days, mass production time needs 10-20 work days for order quantity more than 1000 PCS.
What certificates you have? What is the life time of the IR lamps?
CE, ISO9001, RoHS, SGS authentication already passed, each lamp with life more than 5000-20000hrs.
Do you offer guarantee for the products?
Yes, we will confirm the guarantee period in formal quotation together with data sheet.
