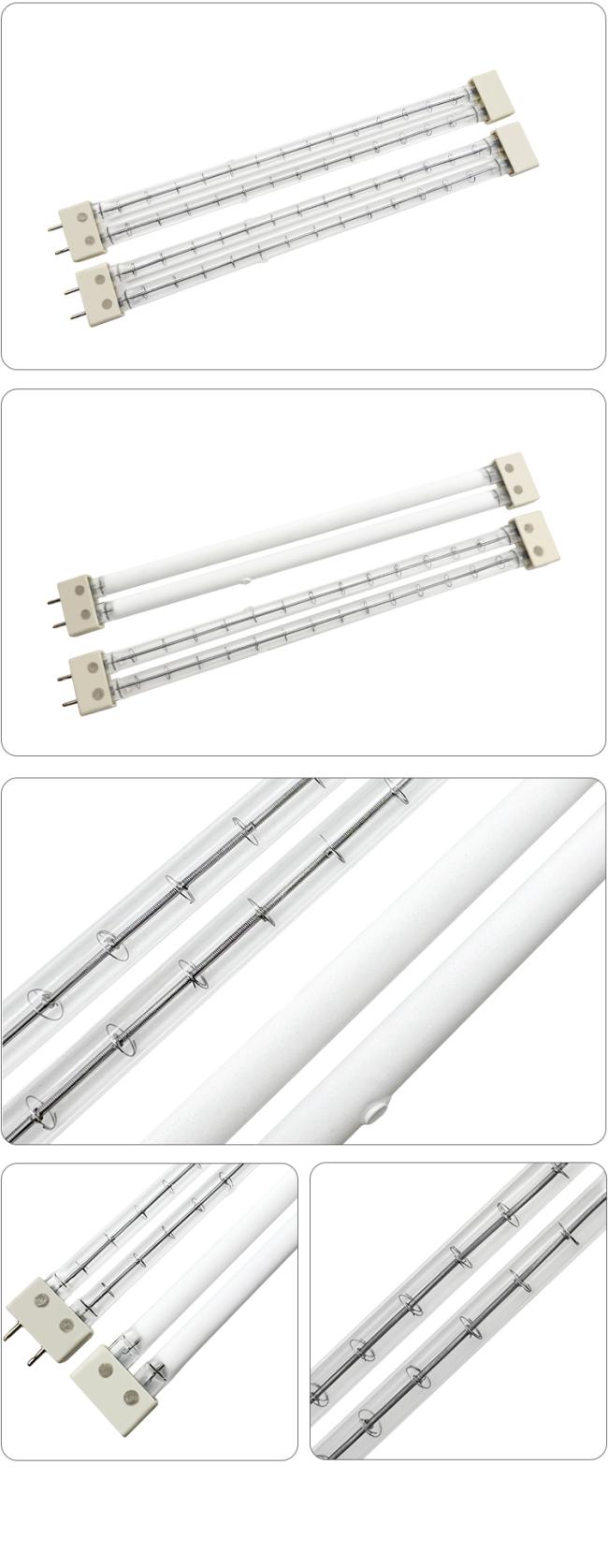

400V 1850W Single Tube IR Emitters Halogen Quartz Heater Tube for Preheating of Annealing Furnace Lamp
Product Specifications
| Attribute |
Value |
| Heating length |
255±5mm |
| Reflector |
White |
| Working Time |
5000h |
| Wave Length |
Short wave |
| OEM/ODM |
Many types of voltage, wattage, length, base, cables, universal burning position available |
| Filament type |
Tungsten |
| Filament temperature |
1100-2600°C |
| Power |
1850W |
| Voltage |
400V |
| Total length |
328mm |
| Pipe diameter |
12.8mm |
Short Wave Infrared Emitter Transparent Quartz Tube Heating Lamp
Benefits of Infrared Heat
- Clear heating: No surface corrosion or dropping off
- Quick controllable heat: Heating time is adjustable as needed
- Clean and odorless: No risk of contamination to environment or target objects
Application Scenarios
Infrared Heating For Plastics Process
- IR drying of coatings on plastics
- IR stretching or shrinking plastics
- IR Heating For Plastic Packaging
- IR heating for blow moulding of PET bottles
Infrared Heating For Photovoltaic Industry
- IR heating for string soldering
- IR preheating for sputtering processes
Infrared Heating For Printing Industry
- IR curing ink on cloth
- IR drying for inkjet-based CTP plates
- IR drying of printing products (e.g., banners machine)
Infrared Heating For Food And Chemical Industry
- IR heating for disinfection of tableware
- IR heating of chicken and vegetables
- IR heating of natural herbal medicine
- IR heating for removing snow and ice
Infrared Heating For Glass Industry
- IR preheating of car glass
- IR drying of coatings on glass
- IR heating for manufacturing and cutting laminated glass
Infrared Heating For Textiles Industry
- IR drying of coatings on textiles
- IR heating for laminating of fabrics
Infrared Heating For Electronic Industry
- Coatings on electronic components
- The aging of the electronic components
OEM Service
We can advise customers in choosing the right heat lamp for specific applications. Our Technical Department can design custom lamps based on your technical requirements.
We produce various sizes and types of heat lamps according to customer specifications. Providing drawings helps us create accurate samples for your evaluation.
