1850W 400V Single Tube Quartz Infrared Lamp with 328mm Total Length for Efficient Heating

Price	Negotiable
MOQ	Negotiable
Delivery Time	15-20Work day
Brand	UVIR
Place of Origin	China
Certification	CE & ROHS
Model Number	SHW100757
Packaging Details	Each lamp in a cylinder .Then in a professional plywood box
Payment Terms	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Product Details

Product Specification

Place of Origin	China	Watt	1850W
Packaging Details	Each lamp in a cylinder .Then in a professional plywood box	Reflector	White
Material	Glass	Model Number	SHW100757
Heating length	255±5mm	Certification	CE & ROHS
Brand Name	UVIR	Payment Terms	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Price	Negotiable	Delivery Time	15-20Work day
Minimum Order Quantity	Negotiable	Voltage	400V
Total length	328mm

Product Description

SHW100757 Single Tube Halogen Coated White Straight Tube Infrared Lamp

Product Specifications

Specification	Value
Quartz Tube	12.8 mm
Watt	1850W
Material	Glass
Place of Origin	China
Voltage	400V
Reflector	White
Total length	328mm
Heating length	255±5mm

Advantages of Infrared Radiators

Direct energy transfer without contact or intermediate conversion medium
Rapid energy release for precise heating control
Energy savings up to 50% compared to conventional heating methods

Twin Tube Short-Wave IR Lamps

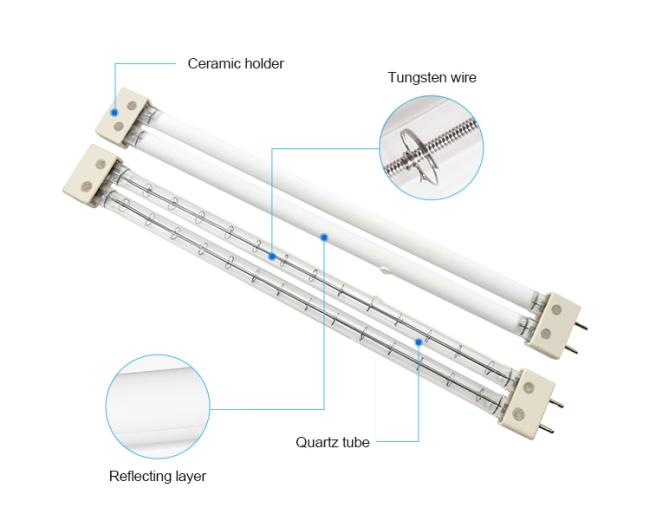

Main components of our twin tube infrared lamps:

Fused silica construction
Tungsten heating elements
Supports for heating wire
End plate and ceramic end
Wire leads

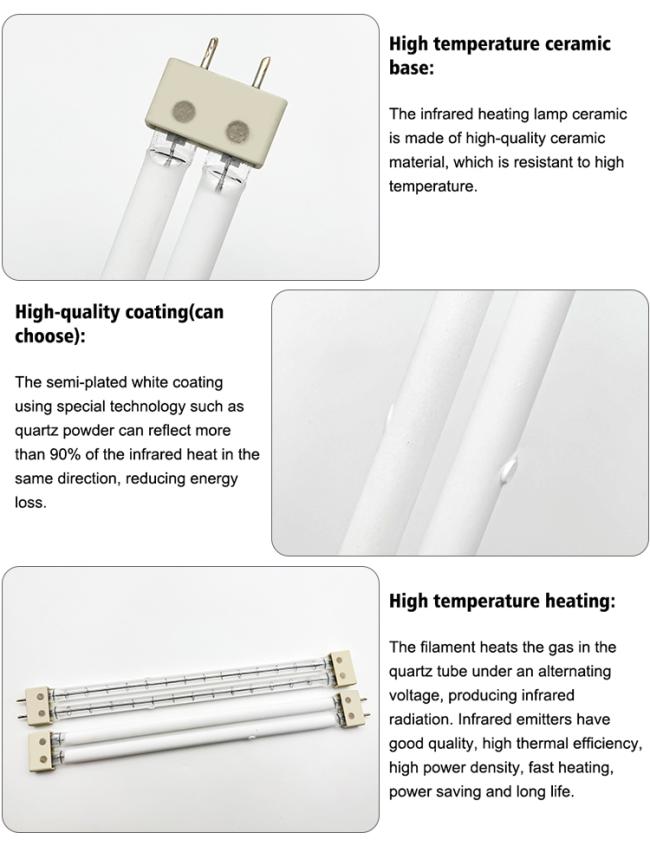

Reflective layer (white coating in this model)
Proprietary gas composition

Technical Specifications

Industrial IR twin tube cross-section dimensions

The quartz tube strength has been significantly enhanced using a steel beam-inspired design concept, allowing twin tube lengths up to 6 meters (cross section: 33 X 14 mm).

Cross-Section	Maximum Length (m)	S-W	M-W
8x18	2.1	N	Y
23x11	3.5	Y	Y
33x14	4.0	Y	Y

Heater dimensions depend on the required voltage/wattage relationship.

Product Variations

Stock and standard twin tube short-wave lamps

After Sales Service

Package tracking
Technical support
24 hours working time
Discount for reorder
Replacements for quality problems
Confidentiality of customer information

Frequently Asked Questions

Q1. Can I have a sample order?

A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 5-7 days, about 30 days for mass production.

Q3. Do you have any MOQ limit?

A: Usually MOQ is 2pcs for each model.

Q4. How do you ship the goods?

A: We usually ship by DHL, UPS, FedEx or TNT for samples. Airline and sea shipping for large quantities.

Q5. How to proceed an order?

A: First communicate your requirements. We provide a quote, then you confirm samples and place deposit. We arrange production.

Q6: How to deal with the faulty?

A: Our products undergo strict quality control. During guarantee period, we send replacements in next order.
