BT MP3 Player Digital Speedometer For Electric Bike Ebike Odometer

Price	$65.00 - $80.00/Sets
MOQ	Negotiable
Delivery Time	Negotiable
Brand	Topshine/OEM/ODM
Place of Origin	China
Model Number	TSGB02
Packaging Details	Please contact us for details
Supply Ability	10000 Unit/Units per Month

Product Details

Product Specification

Can Be Customizable	Yes	Online GPS Tracking	Support
Place of Origin	China	Waterproof	Yes
Packaging Details	Please contact us for details	LCD Screen	Yes
Port	GuangZhou	Model Number	TSGB02
Supply Ability	10000 Unit/Units per Month	Feature	Remote E-Bike Diagnosis
Free GPS Tracking Platform	Support	Brand Name	Topshine/OEM/ODM
Battery Capacity	850mAh Battery	Price	$65.00 - $80.00/Sets
Eectronic Brake Handle	Yes	Music	MP3/Bluetooth Player Selection
Part	LCD Display	Speaker	Yes

Product Description

Products Description

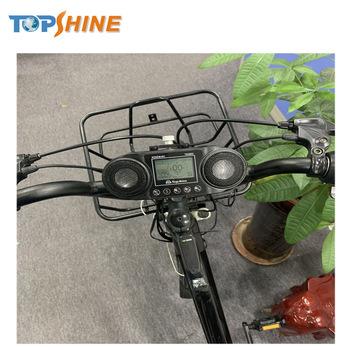

E-Bike with MP3/Bluetooth Stereo Hi-Fi Speaker LCD Screen

TSGB02 HiFi-GPS odometer is a newest and multi-functional electric bike odometer (common bicycle size table), which is independently developed by Topshine technology, it integrates GPS tracker and stereo music speaker. This product adopts high-precision GPS positioning chip with positioning accuracy less than 10 meters. It support play MP3 and bluetooth music. This product use the outdoor 1.8inch LCD screen, display the current environment temperature, altitude, electronic compass, speed and other information in real time clearly. Through the professional GPS tracking platform of Topshine technology, you can track the bike online real time and remotely control to disable the bike such as power failure. It support sending e-Message to the screen through the tracking platform. The launch of this product will bring unprecedented new experience to users. The high technology will accompany you all the way and make your cycling journey more colorful.

Brand	Topshine
Model	TSGB02
Working voltage	36-90V
Rated working current	50－1000mA
Shutdown leakage current	〈500uA
Humidity	5%~95%
Operating temperature	-20°C~75°C
Speaker power	3W＋3W
GSM frequency	GSM 850/900/1800/1900MHz
GPS chip	GPS MTK Chipset
GPS sensitivity	-159dB
Positioning accuracy	5meters, 2D RMS
Size	1606337mm
The material	ABS

Details Images

Functions of TSGB02:

* Stereo HI-FI speaker
* Auto Music Volume setting while Speed changing
* MP3/Bluetooth/USB connection to the computer player selection
* Hand-free phone
* Online GPS tracking
* Electronic compass
* Remote Disable motor function
* Receive and showing e-Message on the LCD
* Time, Date and Alarm clock function
* Real time ambient temperature detection
* Real time altitude detection
* Remote e-bike diagnosis
* Local diagnosis show on LCD
* Check latitude and longitude on LCD
* Touch keyboard instead of traditional mechanical keyboard to extend service life of the keyboard and good waterproof;
* Trip Riding time and History Riding time report
* Trip Odometer and History Odometer report
* Max speed and average speed report
* 6 types of riding mode selection
(0FF: Fitness mode; PAS1/2/3: Power assist mode; PASA: Stepless Power assist mode; ICS: Inertial Cruise)
* Fixed power,PAS1-3
In this mode,if pedalling will produce assist and accelerate,if stop to pedalling ,Ebike will be decelerate until to stop.If you keep pedaling, and the motor will always provide power. Power level: PAS1PAS2 PAS3.
* PASA- stepless power
This mode is an advanced stepless power assist mode, which is convenient for users to ride on different road conditions. In this mode, the power assist size can be adjusted according to different road conditions and slopes by turning handlebars.And then the system will automatically remember and output the current power for riding the current road conditions.
* ICS - inertial cruising
ICS is a kind of can make the vehicle operation simplification of the original cycling pattern, this pattern is simple operation is especially suitable for the elderly, women and children (at least 18 years old)ride.When you switch to this mode, press down on the pedal and the motor will provide some help. When the vehicle reaches the desired speed and stops pedaling, the vehicle will cruise forward at the current speed.
* OFF-Close the power
After switching to OFF mode, the bike turns OFF the power and goes into human-powered cycling mode, also known as fitness mode,perfect for active outdoor enthusiasts.

Tracking Platform

We also provide free tracking platform

GPS tracking platform demo :
Web base : www.track-car.com

Mobile Phone: http://www.track-car.com/M

User name: officetest

Password: 123

Packing & Delivery

Now we have limited time activities. If you buy our bikes during the activity , we will give you priority to experience our new
products for free without any price increase.

Our Service

* Provide 2 free Tracking Platform (PC base & Android APP) lifelong. None any monthly or yearly charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professional R&D team provide Customization and after-sale service lifelong.
* 100% made of an industrial-grade component, GSM module have certified(CE2200)and with legal IMEI code.

Payment & Shipment

Payment Term: PayPal /western union /TT
Shipping Term: DHL /FedEx /TNT /ARAMEX/EMX
Lead time: Samples within 1 day of delivery.bulk production within 5-7days of delivery.
