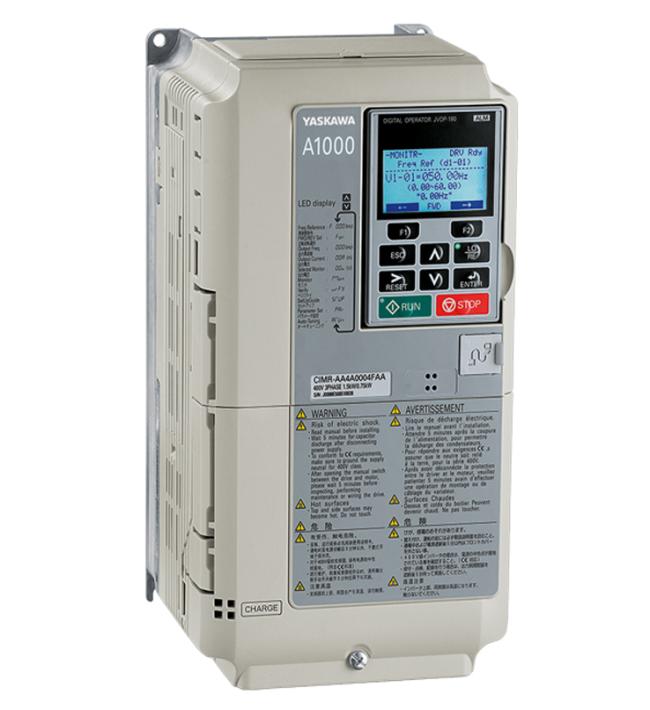

Yaskawa
inverter
CIMR-AB4A0004FBA
Frequency
converter
series
A1000
AC400V
3
phase
The
A1000
is
a
full
featured
drive,
providing
outstanding
quality,
performance,
flexibility,
and
environmental
friendliness
through
1000HP.
Enjoy
network
communications,
feedback,
and
expandable
I/O
to
control
anything
from
simple
fans
and
pumps
to
complex
machines.
For
new
installations
or
retrofits,
the
A1000
provides
a
single
robust
solution,
regardless
of
your
application.
Highlights:
Closed
or
open
loop
vector
control
for
outstanding
regulation,
torque
production,
and
position
control
capability.
Continuous
Auto-tuning
optimizes
performance
by
compensating
for
changes
in
motor
temperature.
High
Frequency
Injection
enables
high
precision
open
loop
control
of
Interior
Permanent
Magnet
Motors.
Fast
acting
current
and
voltage
limiters
help
achieve
continuous
drive
operation
during
periods
of
excessive
demand.
High
Slip
Braking
reduces
installation
cost
and
the
need
for
dynamic
braking
resistors
Communication
options
for
all
major
industrial
networks
provides
high
speed
control
and
monitoring,
reducing
installation
cost.
DriveWizard
computer
software
and
Application
Sets
for
easy
configuration.
Auxiliary
Control
Power
Unit
maximizes
production
time
and
efficiency
by
maintaining
network
communication
while
main
power
is
removed.
Embedded
Safe
Torque
Off
minimizes
downtime
for
applications
requiring
occasional
intervention
(SIL
CL2,
PLd,
Category
3).
Embedded
function
blocks,
programmable
with
DriveWorks
EZ,
provide
additional
application
flexibility
and
the
opportunity
to
eliminate
separate
controllers.
USB
Copy
Unit
and
Keypad
configuration
storage
provide
speed
and
convenience
for
duplicate
configuration
of
multiple
drives.
Removable
terminal
board
with
configuration
storage
provides
convenience
of
configuration
backup.
Made
with
RoHS
compliant
materials.
Integrated
DC
Reactor
(standard
on
30HP
and
larger)
for
input
harmonic
reduction.
Kinetic
Energy
Braking
allows
drive
to
remain
in
control
during
momentary
power
losses.
Integrated
12
Pulse
version
provides
a
cost
effective
solution
for
low
harmonics.
Flange
version
provides
NEMA
12
backside
integrity
when
mounting
with
heatsink
external.
A1000
Series
CIMR-AB4A0002FBA
3
Phases
400V
0.75KW
CIMR-AB4A0004FBA
3
Phases
400V
1.5KW
CIMR-AB4A0005FBA
3
Phases
400V
2.2KW
CIMR-AB4A0007FBA
3
Phases
400V
3KW
CIMR-AB4A0009FBA
3
Phases
400V
3.7KW
CIMR-AB4A0011FBA
3
Phases
400V
5.5KW
CIMR-AB4A0018FBA
3
Phases
400V
7.5KW
CIMR-AB4A0023FBA
3
Phases
400V
11KW
CIMR-AB4A0031FBA
3
Phases
400V
15KW
CIMR-AB4A0038FBA
3
Phases
400V
18.5KW
CIMR-AB4A0044FBA
3
Phases
400V
22KW
CIMR-AB4A0058ABA
3
Phases
400V
30KW
CIMR-AB4A0072ABA
3
Phases
400V
37KW
CIMR-AB4A0088ABA
3
Phases
400V
45KW
CIMR-AB4A0103ABA
3
Phases
400V
55KW
CIMR-AB4A0139ABA
3
Phases
400V
75KW
CIMR-AB4A0165ABA
3
Phases
400V
90KW
CIMR-AB4A0208ABA
3
Phases
400V
110KW
CIMR-AB4A0250ABA
3
Phases
400V
132KW
CIMR-AB4A0296ABA
3
Phases
400V
160KW
CIMR-AB4A0362ABA
3
Phases
400V
185KW
CIMR-AB4A0414ABA
3
Phases
400V
220KW
CIMR-AB4A0515ABA
3
Phases
400V
315KW
CIMR-AB4A0675ABA
3
Phases
400V
355KW
CIMR-AB2A0004FAA
3
Phases
200V
0.4KW
CIMR-AB2A0006FAA
3
Phases
200V
0.75KW
CIMR-AB2A0008FAA
3
Phases
200V
1.1KW
CIMR-AB2A0010FAA
3
Phases
200V
1.5KW
CIMR-AB2A0012FAA
3
Phases
200V
2.2KW
CIMR-AB2A0018FAA
3
Phases
200V
3KW
CIMR-AB2A0021FAA
3
Phases
200V
3.7KW
CIMR-AB2A0030FAA
3
Phases
200V
5.5KW
CIMR-AB2A0040FAA
3
Phases
200V
7.5KW
CIMR-AB2A0056FAA
3
Phases
200V
11KW
CIMR-AB2A0069FAA
3
Phases
200V
15KW
CIMR-AB2A0081FAA
3
Phases
200V
18.5KW
CIMR-AB2A0110AAA
3
Phases
200V
22KW
CIMR-AB2A0138AAA
3
Phases
200V
30KW
CIMR-AB2A0169AAA
3
Phases
200V
37KW
CIMR-AB2A0211AAA
3
Phases
200V
45KW
CIMR-AB2A0250AAA
3
Phases
200V
55KW
CIMR-AB2A0312AAA
3
Phases
200V
75KW
CIMR-AB2A0360AAA
3
Phases
200V
90KW
CIMR-AB2A0415AAA
3
Phases
200V
110KW
|
Brand
name
|
Yaskawa
|
|
Product
No
|
CIMR-AB4A0004FBA
|
|
Product
Type
|
Yaskawa
A1000
Series
Drive
|
|
Drive
|
CIMR
|
|
Voltage
Class
|
4
-
3-phase,
380-480
Vac
|
|
Customized
Specifications
|
A
-
Standard
model
|
|
Dimensions
(LxWxH)
|
14.7cm
x
14cm
x
26cm
|
|
Weight
|
3.2
Kg
|
