| Price | usd93 piece/pieces |
| MOQ | 1 |
| Delivery Time | 5-8 work days |
| Brand | MC |
| Place of Origin | China |
| Certification | CCC.CE |
| Model Number | Y250BF |
| Packaging Details | carton |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 |
| Place of Origin | China | measuring range | 0-60Mpa |
| Size | 250mm | Packaging Details | carton |
| Customized Support | OEM ODM | Material | stainless steel |
| Model Number | Y250BF | Supply Ability | 1000 |
| Certification | CCC.CE | Brand Name | MC |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Price | usd93 piece/pieces |
| Delivery Time | 5-8 work days | Minimum Order Quantity | 1 |
| Model | Y250BF |

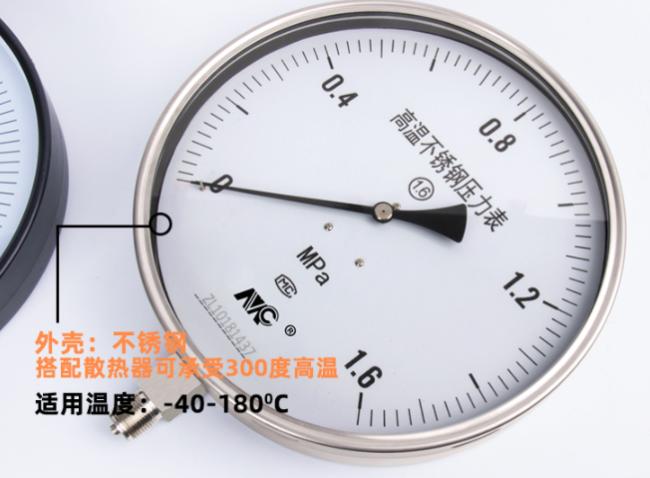

Y250BF High temperature stainless steel pressure gauge, water pressure, hydraulic pressure, oil pressure, pressure gauge
Mengchuan dedicated instrument production for 20 years, Y250BF high temperature stainless steel pressure gauge, simple operation. Suitable for water pressure, hydraulic pressure, oil pressure, air pressure, with radiator up to 300℃. Accurate reading, high temperature resistance, complete specifications.
Using range
The general pressure gauge is suitable for measuring the pressure of liquid, vapor and gas without explosion danger, no crystallization, no solidification and no corrosion of copper and copper alloy.
temperature influence
When the operating temperature deviates from 20℃±50℃, no more than 0.4%/10℃.
| Brand name | MC |
| Model | Y250BF |
| Type | radial direction |
| Case | stainless steel |
| dial diameter | 250mm |
| relative humidity | ≤ 98℃ |
| Machine core material | stainless steel |
| Accuracy | 1.6 |
| operating temperature | -40℃~180℃ |
| measuring range | 0-60Mpa |
| Thread size | M20*1.5 |
| Customized support | OEM, ODM |
show details
applicable scene
Pressure gauges are used in almost all industrial processes and scientific research. It can be seen everywhere in heat pipe network, oil and gas transmission, water and gas supply system, vehicle maintenance factories and shops. , especially in the process of industrial process control and technical measurement, because of the elastic sensitive element of mechanical pressure gauge has high mechanical strength and convenient production characteristics, the mechanical pressure gauge has been more and more widely used.

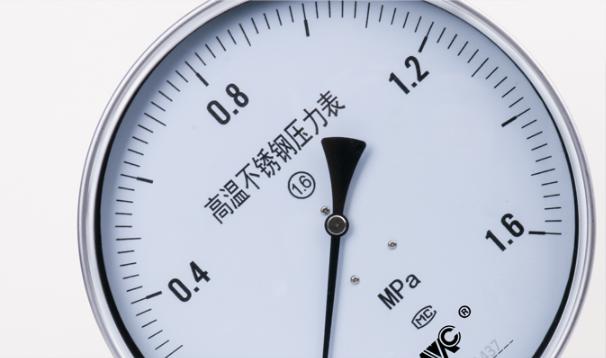

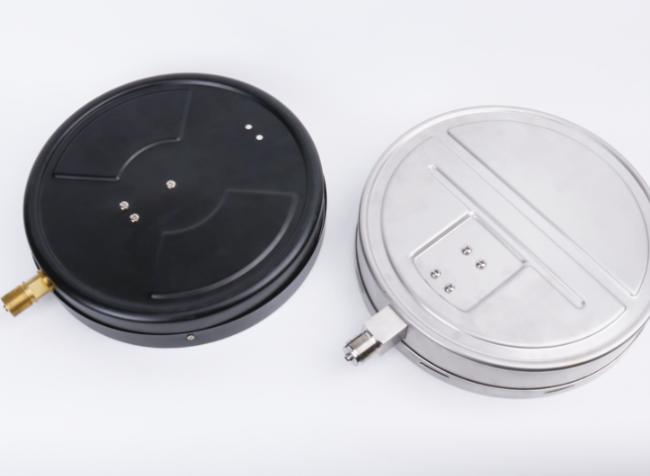

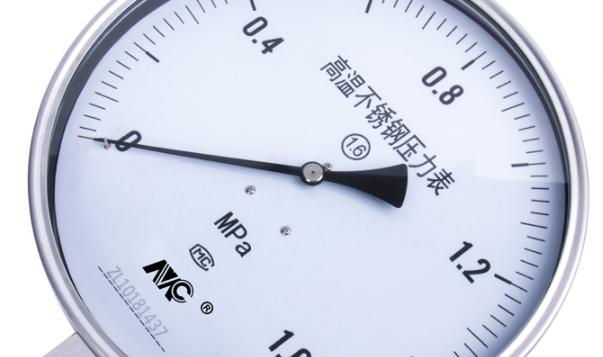

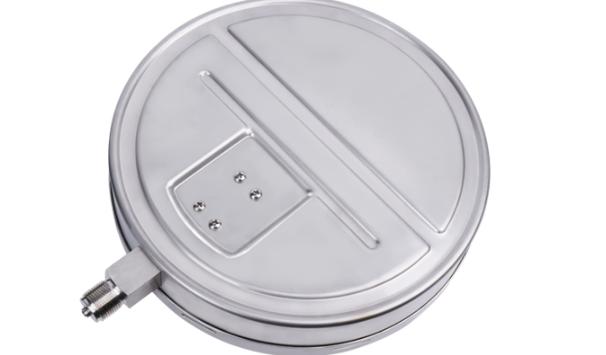

real photography show
Meet all kinds of industrial pressure measurement requirements.
Complete specifications, customizable.
