| Price | usd150 piece/pieces |
| MOQ | 1 |
| Delivery Time | 5-10 Work days |
| Brand | Tissin |
| Place of Origin | Korea |
| Certification | CCC,CE |
| Model Number | TS100 |
| Packaging Details | carton |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 |
| Place of Origin | Korea | Maximum air supply pressure | 1Mpa |
| Packaging Details | carton | Model Number | TS100 |
| Supply Ability | 1000 | Certification | CCC,CE |
| Brand Name | Tissin | Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Price | usd150 piece/pieces | Delivery Time | 5-10 Work days |
| Minimum Order Quantity | 1 | Model | TS100 |
| Output pressure range | 0.4~0.7MPa |

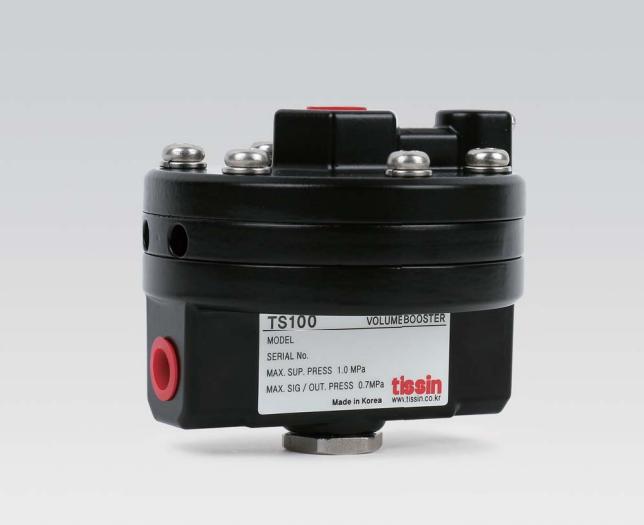

Original Tissin TS100 series Volume Booster flow amplifier,Speed up control valve device
Volume Booster TS100 series products are used to speed up the control valve action device. When the flow of the valve positioner can not meet the requirements of the speed of the control valve, the flow amplifier is installed at the outlet of the valve positioner. According to the change of the pressure at the outlet of the valve positioner, the pressure of 11 will provide the air source with large flow to the actuator and improve the regulation speed of the control valve.
- Adjustable Sensitivity control allows this Volume Booster to meet various control valve
requirements.
- Soft seats provide tight shut off to reduce unnecessary air consumption.
-
Small
size
and
light
weight
allow
the
Volume
Booster
to
be
installed
directly
inline
without
a
bracket.
- Options available (High and Low Temperature)
Using the environment
Do not use in corrosive environment.
When it is used beyond the normal working range, the normal service life of internal diaphragm and other parts of the product will be affected, and abnormal operation may occur. Therefore, please use it within the specified temperature parameter range.
| Brand name | TISSIN |
| Model | TS100 |
| Signal and output pressure ratio | 1:1 |
| linear | 1% |
| Air source signal interface size | PT(NPT)1/4 |
| operating temperature range | -20℃~70℃ |
| Material | aluminium |
| Weight |
|
| Maximum air supply pressure | 1Mpa |
| Output pressure range | 0.4~0.7MPa |

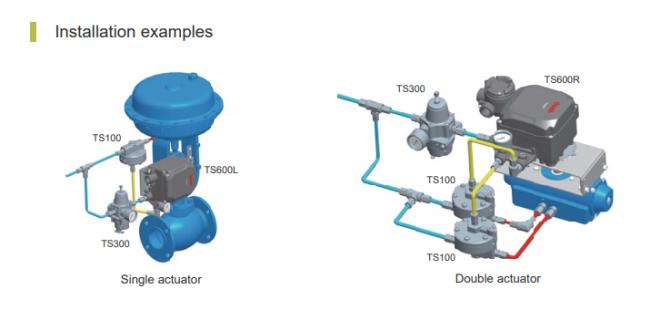

To take over the way
① The outlet of the valve positioner is connected to the pressure signal interface of the flow amplifier.
② The air source output interface of the flow amplifier is connected with the air chamber of the actuator.
The air source is connected to the air source input interface.
Bracket installation Method
If a support is required, prepare the support and install it according to the following figure.
Precautions
